Sirius 800 Series User Manual 5930 Sirius 840/850 I/p & 5933 O/p Monitoring Multiviewer & Input/Output Monitoring Modules 13.8
Iss 5 Rev 7 Page 245 © 2017 SAM
13.8.1.1 5930 Sirius 840/850 Input Monitoring Crosspoint Module LEDs

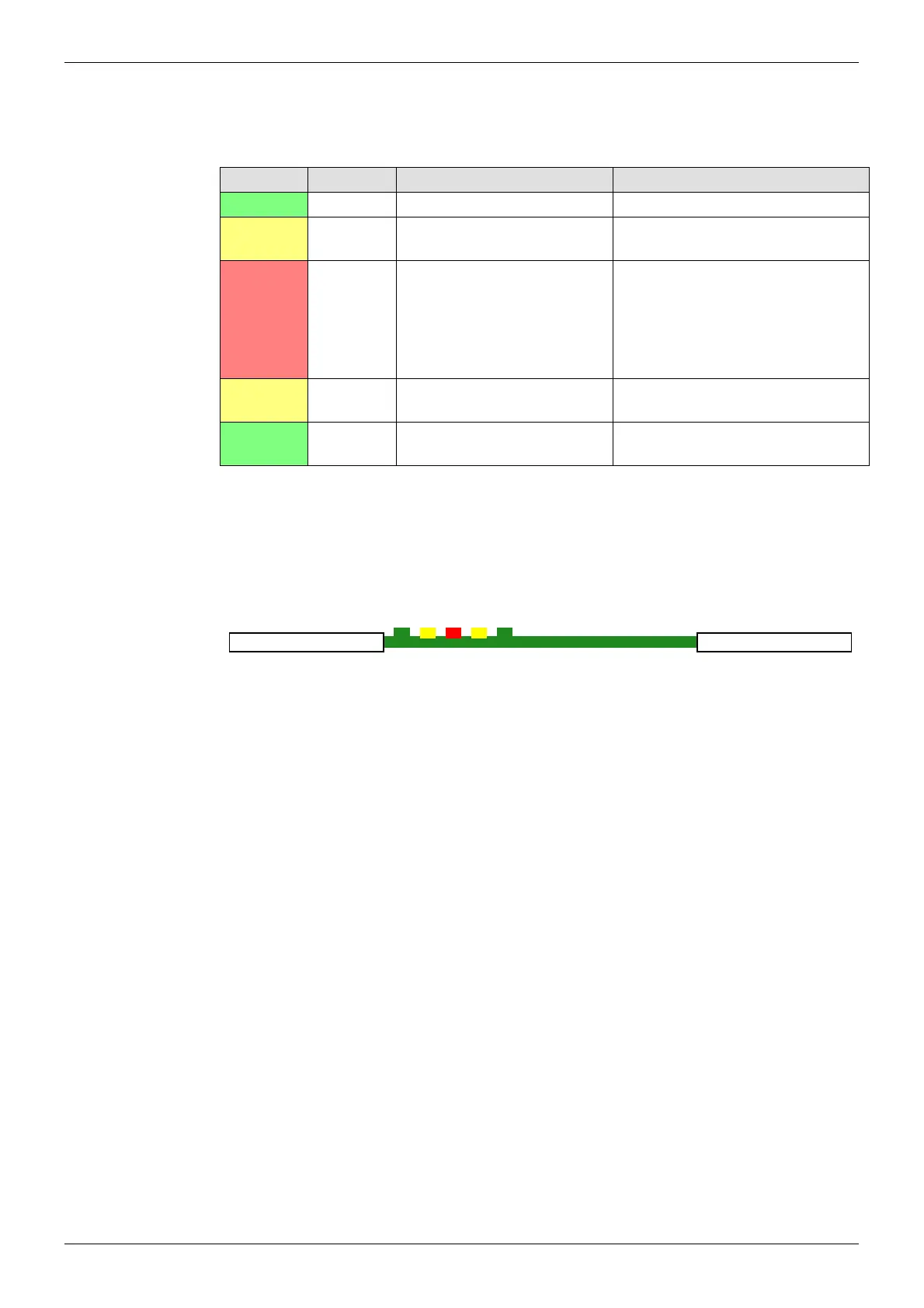

Table 60 shows the LED color code on the 5930 input monitoring crosspoint module, and
Figure 173 shows the front edge of the module.
LED Color Function Detail Normal Working Status
Green Power OK Power to the module On Solid - working correctly
Yellow Command
OK
Command from the Control
module
Flashing - receiving information
and working correctly
Red Command
Error
Error with command from the
Control module
Off - normal state
Flashing - the command message
from the router controller is corrupt
or hasn’t been received. Contact
SAM Customer Support (see
section 1.2 for contact details).
Yellow Switch Flashes on a take signal when
switching a route
Off - normal state
Flashes - each time a route is set
Green PAL OK Flashes and signals that the
FPGA is working correctly
Flashing the FPGA is working
correctly
Table 60 5930 Sirius 840/850 Input Monitoring Crosspoint Module LEDs
Figure 173 5930 Input Monitoring Module LEDs
Power OK
Command OK
Command Error
Switch
PAL OK
5930
