9.2 Sirius 830: 1372 Video HD BNC DS-Link Input Rear Panel
The 1372 video HD BNC DS-Link input rear panels have 24 HD BNC inputs and 3 DS-Link
copy outputs.
The 1372 rear panel is used in the Sirius 830 with either the 5919/5915 input module
(24 channel video with de-embedder, re-clocking and AHP) or the 5917/5916 input modules
(24 channel video with re-clocking).
The DS-Link connectors output copies of the HD BNC video input signals which can be used
to loop-through signals to external SAM IQ modular products.
All the HD BNC connectors on the 1372 rear panels have SAM's unique Catsii feature that
illuminates above each connector. See section 6 for details of the Catsii functionality.
• DS-Link to DS-Link Cable - 6 metre:
Order Code FGAEY WDS6THIN
Cable kit consists of 1 x 6 metre (19 Feet) DS-Link to DS-Link cable.
• DS-Link to DS-Link Cable - 12 meter:
Order Code FGAEY WDS12THICK
Cable kit consists of 1 x 12 metre (39 Feet) DS-Link to DS-Link cable.

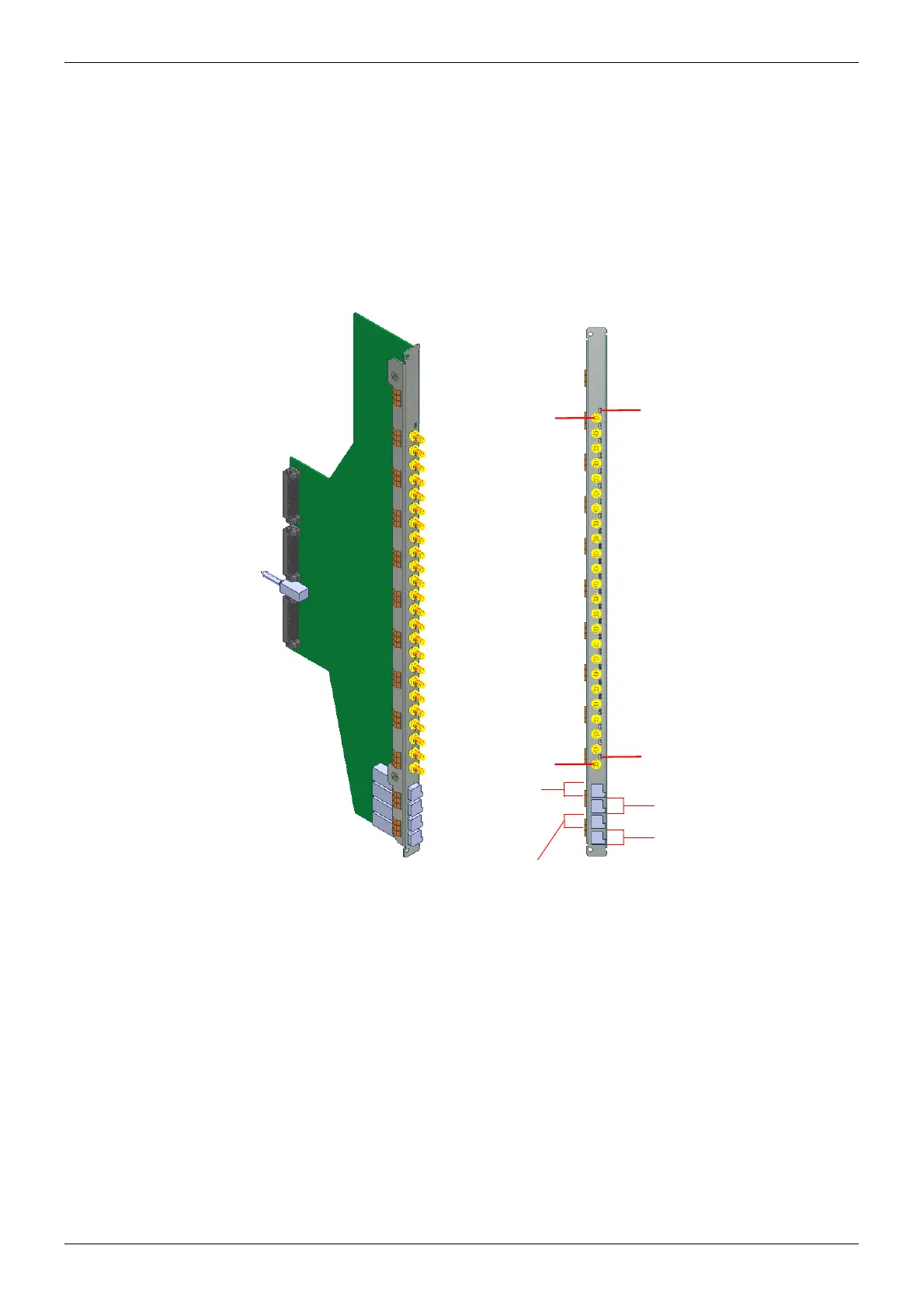

Figure 72 1372 Video Input HD BNC DS-Link Rear Panel (Sirius 830 only)
DS-Link output J OUT
Video channels 9 to 16
Video Input 1
Video Input 24
DS-Link output K OUT
Video channels 17 to 24
DS-Link output H OUT
Video channels 1 to 8
Not used
Catsii 24
Catsii 1
