11.4 1294 Sirius 800 Video BNC Output Rear Panel
The 1294 Sirius 800 video BNC output rear panel has 24 BNC outputs.
The 1294 rear panel is used with the 5949/5925 video output module (24 channel video with
audio embedder, re-clocking and AHP) and the 5926/5938 video output module (24 channel
video with re-clocking).
The DS-Link expansion input connectors are used to expand a Sirius 850 system 1152
2
, see
section 12
All the BNC connectors on the output rear panel have SAM's unique Catsii feature that
illuminates each connector. See section 6 for details of the Catsii functionality.

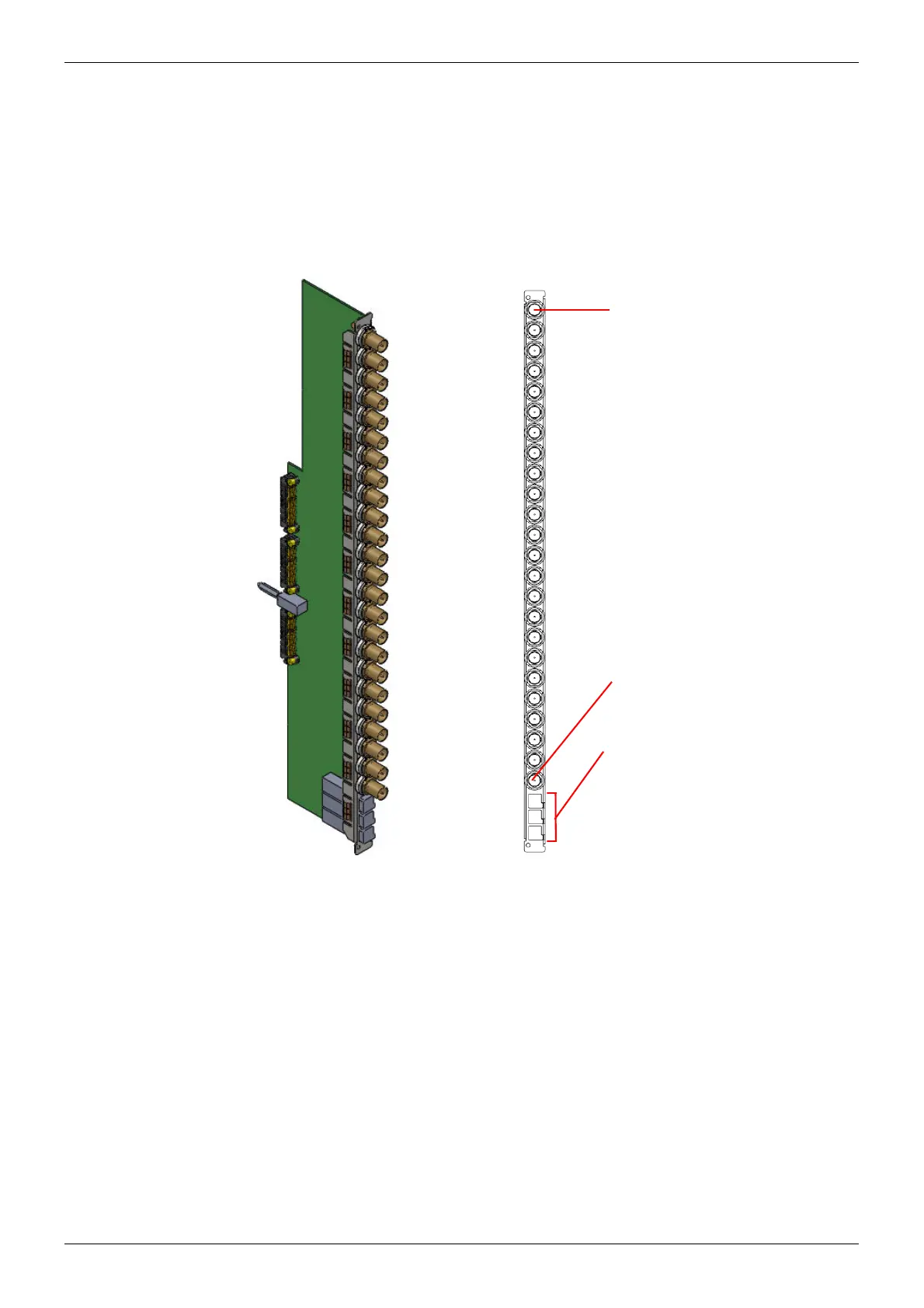

Figure 126 1294Sirius 800 Video BNC Output Rear Panel
Sirius 850 Expansion
Input Connectors:
a
b
c
Not Used with 5926 modules
Video Output 1
Video Output 24
