11.8 1295 Sirius 800 Video/MADI BNC Output Rear Panel
The 1295 Sirius 800 video/MADI BNC output rear panel has 24 BNC outputs.
The 1295 rear panel is used with either the 4929/4925 12 channel MADI output module with
AHP (a duplicate of each MADI channel is output along with the main output) or 5923 video
output module (24 channel video with re-clocking).
The DS-Link expansion input connectors are used to expand a Sirius 850 system 1152
2
, see
section 12
All the BNC connectors on the output rear panel have SAM's unique Catsii feature that
illuminates each connector. See section 6 for details of the Catsii functionality.

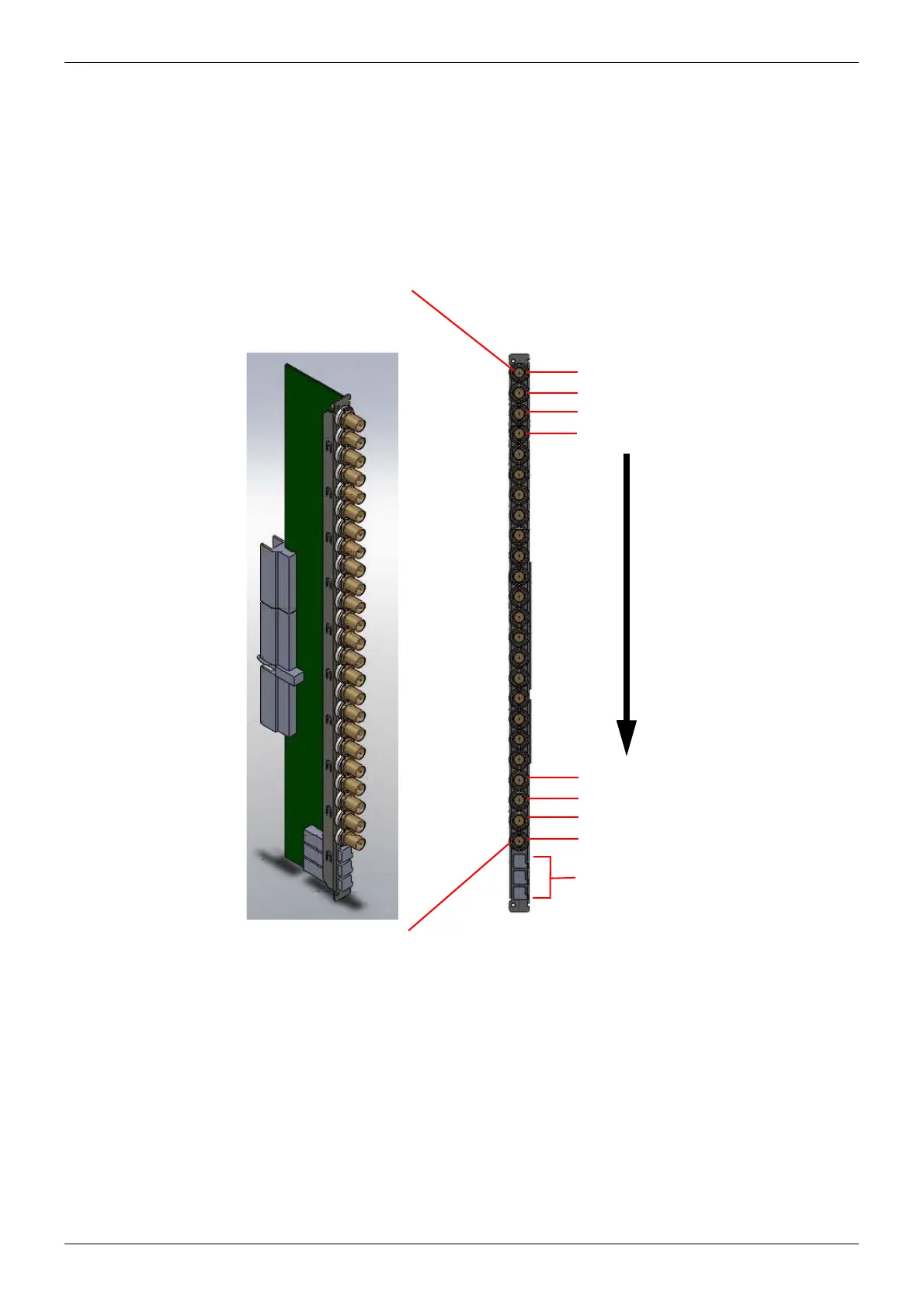

Figure 130 1295 Sirius 800 Video/MADI BNC Output Rear Panel
Sirius 850 Expansion Input
Connectors:
a
b
c
When used with a 5923 video output module
MADI Output 1a
MADI Output 2a
MADI Output 1b
MADI Output 11a
MADI Output 12a
MADI Output 11b
MADI Output 12b
Video Output 1
when used with a
5923 video output
module
Video Output 24
when used with a
5923 video output
module
When used with
a 4929/4925
audio output
module
MADI channel a = Main output
MADI channel b = Duplicate output
see section 11.1.1 for details
MADI Output 2b
