11.5 1363 Sirius 800 Video HD BNC Output Rear Panel
The 1363 Sirius 800 video HD BNC output rear panel has 24 HD BNC outputs and 3 DS-Link
expansion inputs.
The 1363 rear panel is used with the 5949/5925 video output module (24 channel video with
audio embedder, re-clocking and AHP) and the 5926/5938 video output module (24 channel
video with re-clocking).
The DS-Link expansion input connectors are used to expand a Sirius 850 system to 1152
2
,
see section 12
All the HD BNC connectors on the output rear panel have SAM's unique Catsii feature that
illuminates above each connector. See section 6 for details of the Catsii functionality.
• DS-Link to DS-Link Cable - 6 metre:
Order Code FGAEY WDS6THIN
Cable kit consists of 1 x 6 metre (19 Feet) DS-Link to DS-Link cable.
• DS-Link to DS-Link Cable - 12 meter:
Order Code FGAEY WDS12THICK
Cable kit consists of 1 x 12 metre (39 Feet) DS-Link to DS-Link cable.

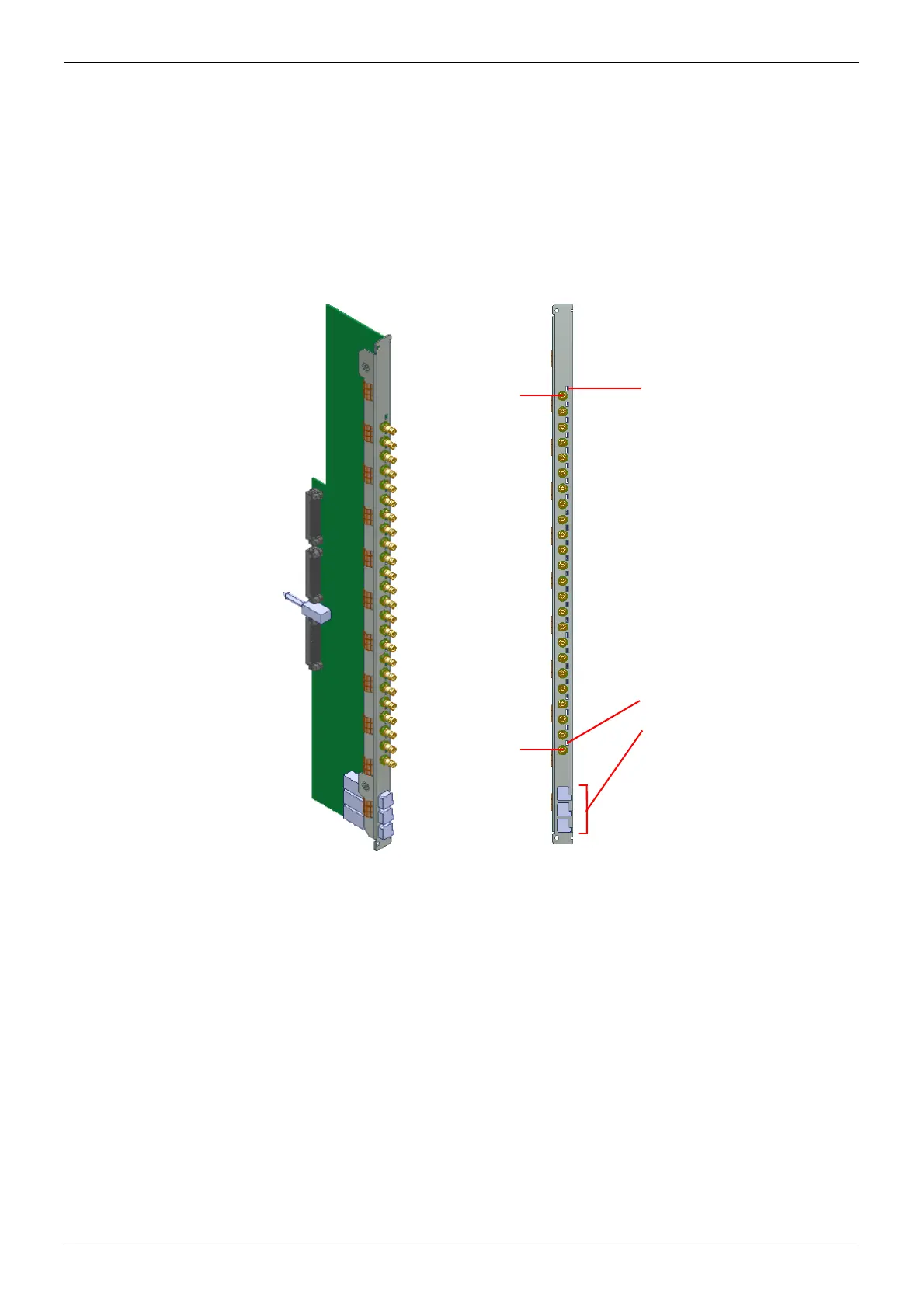

Figure 127 1363 Sirius 800 Video HD BNC Output Rear Panel
Sirius 850 Expansion
Input Connectors:
a
b
c
Not Used with
5926 modules
Video Output 1
Video Output 24
Catsii 24
Catsii 1
