12.6 1365 Sirius 850 DS-Link In/Out Expansion Rear
1365 Sirius 850 DS-Link In DS-Link Out Expansion Rear Panel:
The 1365 Sirius 850 DS-Link In DS-Link Out Expansion Rear Panel DS-Link expansion
outputs are used to connect 24 output signals to a second Sirius 850 expansion router, driving
destinations 577 to 1152.
The DS-Link expansion input connectors are used when expanding a Sirius 850 system
above 1152
2
(future enhancement).
A video input signal passes through the 5928 expansion output module and out from the 1365
expansion rear panel to an output (577 to 1152) in the second frame.
Output from a frame to the expanded frame is via three expansion cables per 1365 expansion
output rear panel. The three expansion cables must be purchased separately, cable order
codes are shown below.
• 1 x 6 meter (19 Feet) expansion cable SAM order code: FGAEY WDS6THIN
• 1 x 12 meter (39 Feet) expansion cable SAM order code: FGAEY WDS12THICK
Each 1365 rear panel must be connected to the expansion inputs of the corresponding output
module in the second Sirius 850 frame, i.e. slot 1 to slot 1, slot 2 to slot 2, etc. The expansion
input connectors are located below the output module rear panel connectors (1 to 24) and are
marked a, b and c. The connections on the 1365 rear panel are marked A, B and C. The
expansion cables connect A OUT to a, B OUT to b and C OUT to c. See section 12.2 for
further information.

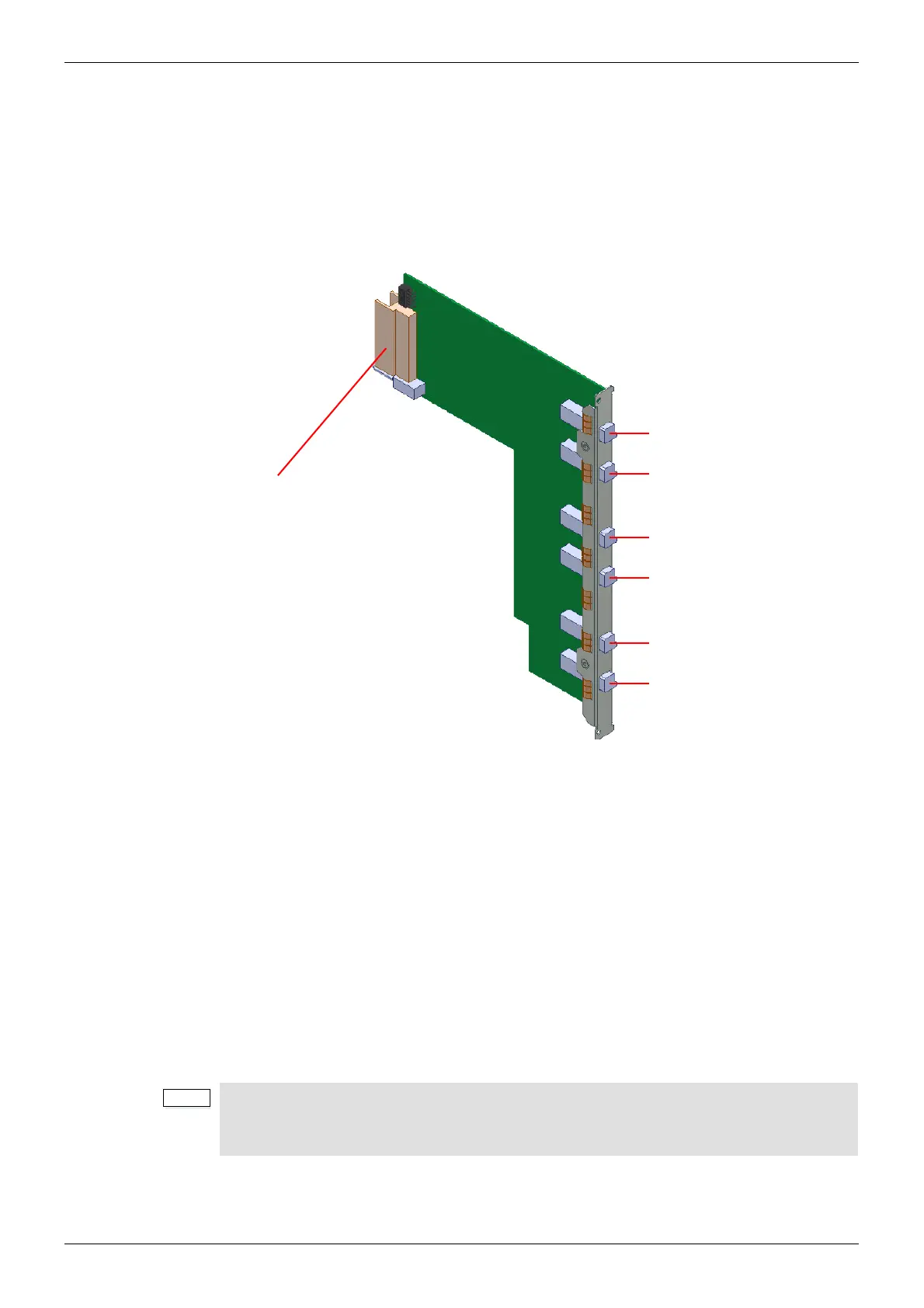

Figure 146 1365 Sirius 850 1365 DS-Link In DS-Link Out Expansion Rear Panel
Note:
• It is not possible to mix the 1365/1290 and 1366/1293 Output Rear Panels in a
frame.
• 1365 and 1290 rear panels can be mixed if required.
Expansion Input/Output
Ports labelled:
Connects to 5928
Expansion Output Module
d in
A OUT
e in
B OUT
f in
C OUT
