7.1.5 2RU Dial-up Multibus (4 Bus) Panels
Range of Dial-up Multibus (4 bus) panels.
These panels can be controlled serially through RS485. When controlled through RS485 the
1U panels can mimic 6700 series Nucleus control panels and the 2U panels can mimic the
6276 and 6277 series Nucleus control panels. See the 1U Panels User Manual and 2U
Panels User Manual respectively for details.
For more flexibility, they can be controlled over ethernet, see the Workbench User Manual.
The Sirius 800 routers are supplied with a default database. Serial port 3 (COM 5) is
configured, in the default database, to use the control panels for BPX and XY control.
7.2 Older Control Panels
The Nucleus controller supports the following external control panels:
7.2.1 6700 series 1RU
BPX and XY Panels.
7.2.2 6276 2RU
Dial-up XY panel.

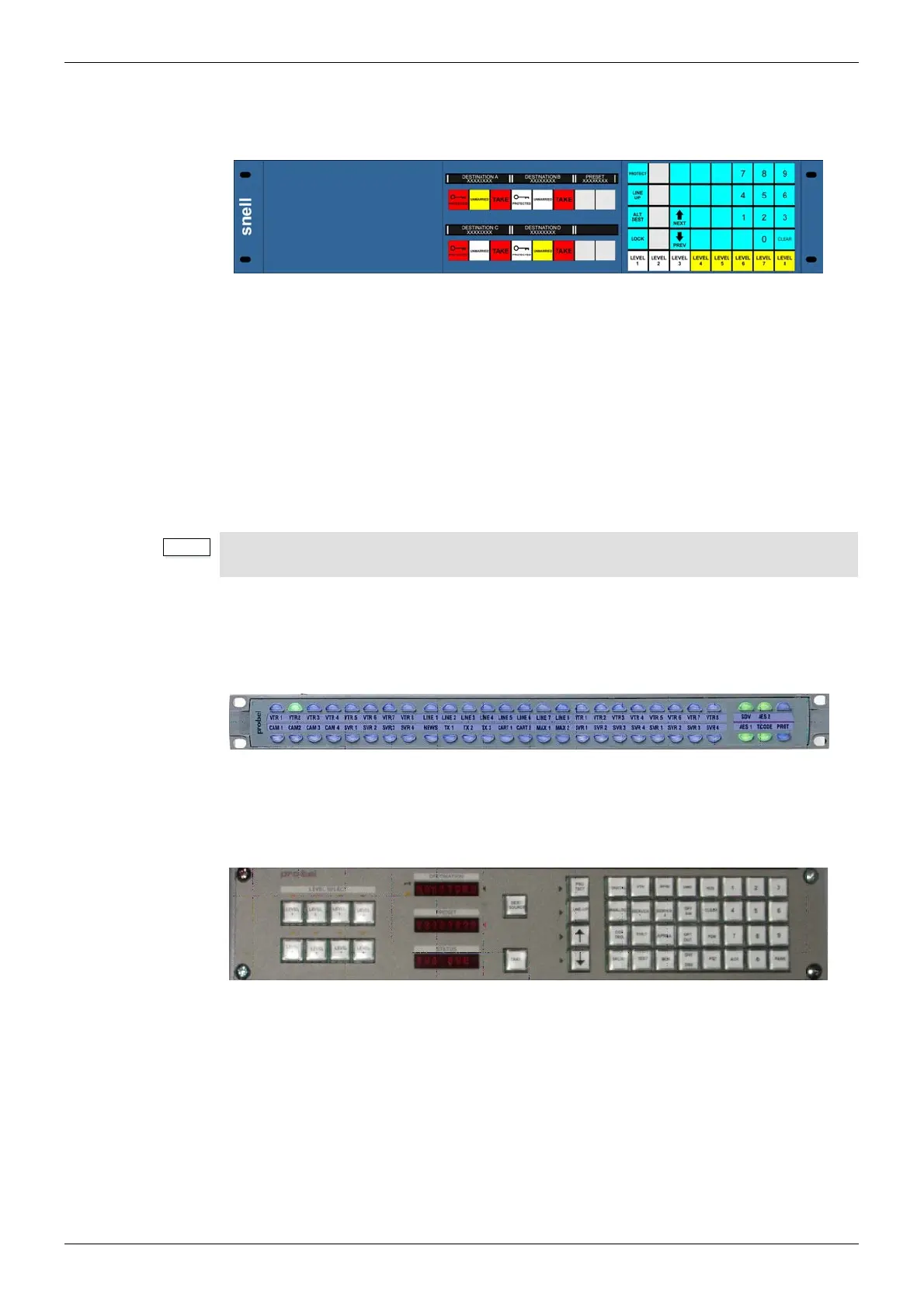

Figure 50 2RU Dial-up Multibus (4 bus) Panel
The control panels below are no longer manufactured or supplied and are shown here for
users that already have them fitted.
Figure 51 6700 series 1RU BPX and XY panels
Figure 52 6276 2RU Dial-up XY Panel
