8.2.3 Sirius 830: Input and Output Module Locations
Figure 56 shows the Input and Output Modules as they are located in the Sirius 830 frame.
Important:
Before adding modules to a Sirius 830 router check that the power supplies fitted can
supply sufficient power to the router. The router power requirements are described in
Appendix B.1.1.

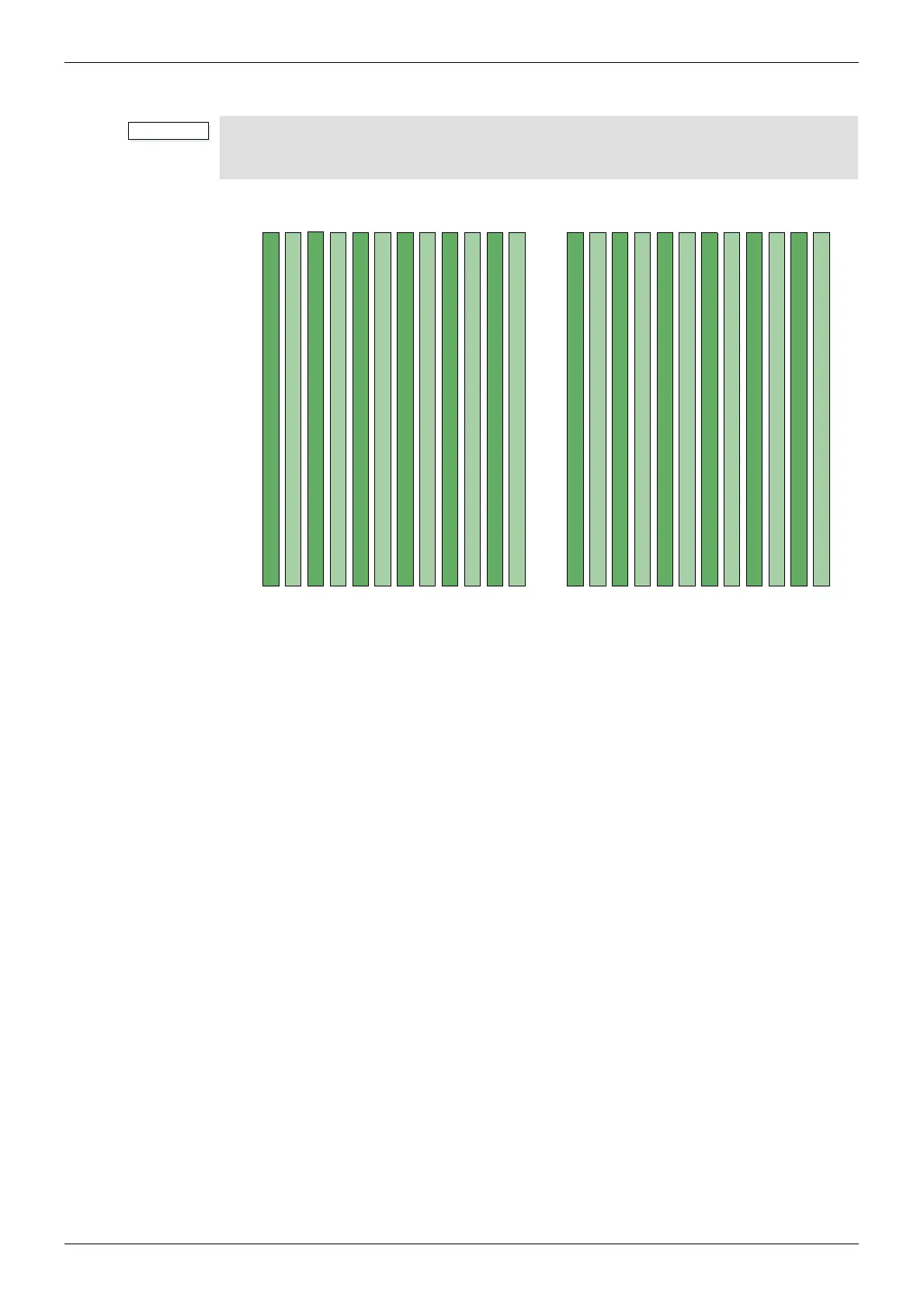

Figure 56 Sirius 830 Input and Output Module Locations (Front View)
Video Input 1 to 24, Audio 1 to 768
Video Output 1 to 24, Audio 1 to 768
Video Input 25 to 48, Audio 769 to 1536
Video Output 25 to 48, Audio 769 to 1536
Video Input 49 to 72, Audio 1537 to 2304
Video Output 49 to 72, Audio 1537 to 2304
Video Input 73 to 96, Audio 2305 to 3072
Video Output 73 to 96, Audio 2305 to 3072
Video Input 97 to 120, Audio 3073 to 3840
Video Output 97 to 120, Audio 3073 to 3840
Video Input 121 to 144, Audio 3841 to 4608
Video Output 121 to 144, Audio 3841 to 4608
Video Input 169 to 192, Audio 5377 to 6144
Video Output 169 to 192, Audio 5377 to 6144
Video Input 193 to 216, Audio 6145 to 6912
Video Output 193 to 216, Audio 6145 to 6912
Video Input 217 to 240, Audio 6913 to 7680
Video Output 217 to 240, Audio 6913 to 7680
Video Input 241 to 264, Audio 7681 to 8448
Video Output 241 to 264, Audio 7681 to 8448
Video Input 265 to 288, Audio 8449 to 9216
Video Output 265 to 288, Audio 8449 to 9216
Video Input 145 to 168, Audio 4609 to 5376
Video Output 145 to 168, Audio 4609 to 5376
