C.4 Output Modules
C.4.1 4925 Sirius 800 AES/MADI Output Module (no audio delay)
The 4925 Sirius 800 AES/MADI output module (no audio delay) can transmit either 120 AES
outputs (balanced or unbalanced) with up to 3 MADI output channels or 12 channels of MADI
outputs depending on the rear panel fitted. The 4925 Output Module is compatible with the
rear panels listed in Table 101
Important:
• The 4925 audio output module was supplied with earlier Sirius 800 router systems
and is shown here for users that already have them fitted.
• The 4925 audio output module can be supplied as a replacement for these earlier
systems if required.
Rear Panel See Section
Up to 120 AES outputs and up to 3 MADI output channels:
1353 Balanced AES + HD BNC MADI rear panel see section 11.10
1356 Unbalanced AES + HD BNC MADI rear panel see section 11.11
1298 Balanced AES rear panel (no MADI) - No longer supplied See Appendix C.5.1
Up to 12 MADI output channels:
1295 MADI Output BNC rear panel see section 11.8
1296 MADI Output Fiber rear panel see section 11.9
Table 101 4929 Rear Panel Compatibility

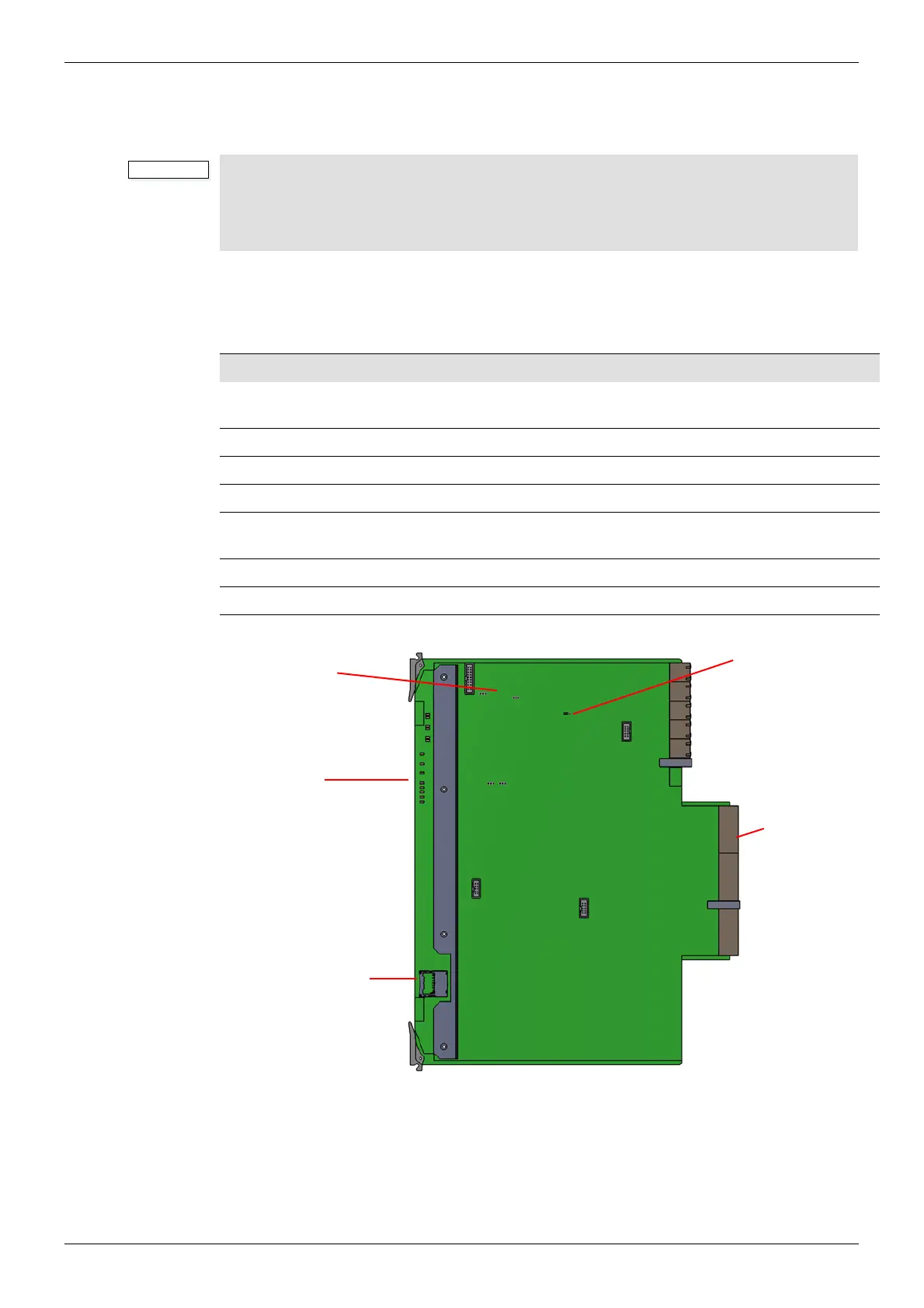

Figure 207 4925 Sirius 800 AES/MADI Output Module (no audio delay)
Connectors
to the 1353,
1356, 1295,
1296 or 1298
Rear
Modules
Firmware/Licensing
SD/SDHC Card
(see the Sirius 800
Maintenance &
Upgrade manual for
details)
LEDs
Fugue LED
PL2 - Link fitted
across two pins
closest to LEDs
