Sirius 800 Series User Manual 5919 Sirius 800 Video AHP Input Module with Delay and Sync Input Rear Panels and Input
Iss 5 Rev 7 Page 144 © 2017 SAM
The 5919 input module is compatible with the rear panels listed in Table 27
9.19.1 Advanced Hybrid Processing on the 5919 Input Module
The 5919 video input module can manipulate the video and audio channels received from the
input rear panels before outputting them to the video and audio crosspoint cards. This makes
it possible to customize the video and audio input channels to a house standard within the
router. Processing is configured in Workbench.

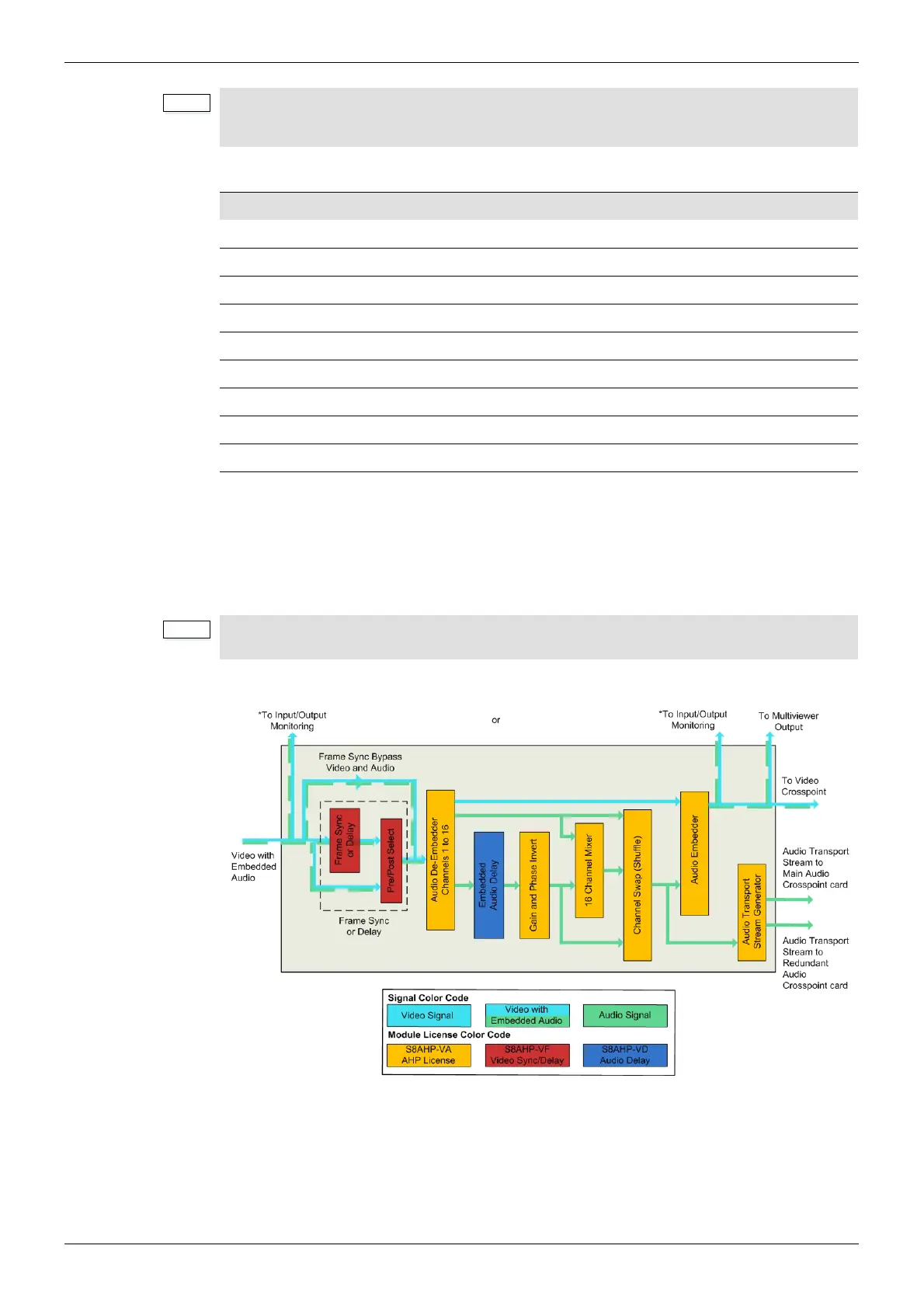

Figure 98 shows the order that the video and audio processing is applied to the signal.
If any embedded audio channels are asynchronous to the video signal the input module will
use drop/repeat to synchronize the audio channels with the video signal.
• Jumpers and Headers present on the video input module are for SAM Use Only.
• In normal operation no jumper links or headers are fitted.
Rear Panel See Section
Sirius 830: 1234/1235 BNC rear panel see section 9.1
Sirius 830: 1372 HD BNC rear panel see section 9.2
Sirius 830: 1236 Fiber rear panel see section 9.3
Sirius 830: 1373 Fiber rear panel see section 9.4
Sirius 840/850: 1349/1289 BNC rear panel see section 9.9
Sirius 840/850: 1360 HD BNC rear panel see section 9.10
Sirius 840/850: 1305 Fiber rear panel see section 9.11
Sirius 840/850: 1361 Fiber rear panel see section 9.12
Sirius 840/850: 1362 DS-Link rear panel see section 9.13
Table 27 5915 Rear Panel Compatibility
Video and Audio processing are licensed options and must be purchased for each module
they are used on (see section 3.6 for details).
Figure 98 5919 Processing Block Diagram
*Input/Output Monitoring selected from either the input or the output of the module (pre or post
processing). See section 5.6.3 for details on how to configure this using the router Door screen.
