Appendix C Modules No Longer Supplied With New Systems
C.1 Input Rear Panels
C.1.1 Sirius 830: 1299 Balanced AES Input Rear Panel
The 1299 balanced AES input rear panel has 5 x 62 way female high density sockets for
balanced AES audio inputs.
The 1299 rear panel is used in the Sirius 830 with the 4915 120 channel AES/MADI input
module. For the wiring details for the 62 way D-Type sockets see section 9.14.3.
• The 1299 Sirius 830 Balanced AES input rear panel was supplied with earlier
Sirius 830 router systems and is shown here for users that already have them
fitted.
• The 1354 Sirius 830 Balanced AES input rear panel can be supplied as direct
replacement for the 1299 if required. see section 9.14.1 for details of the 1354 rear
panel.
• If unbalanced AES inputs are required see section 9.15.1 for details.

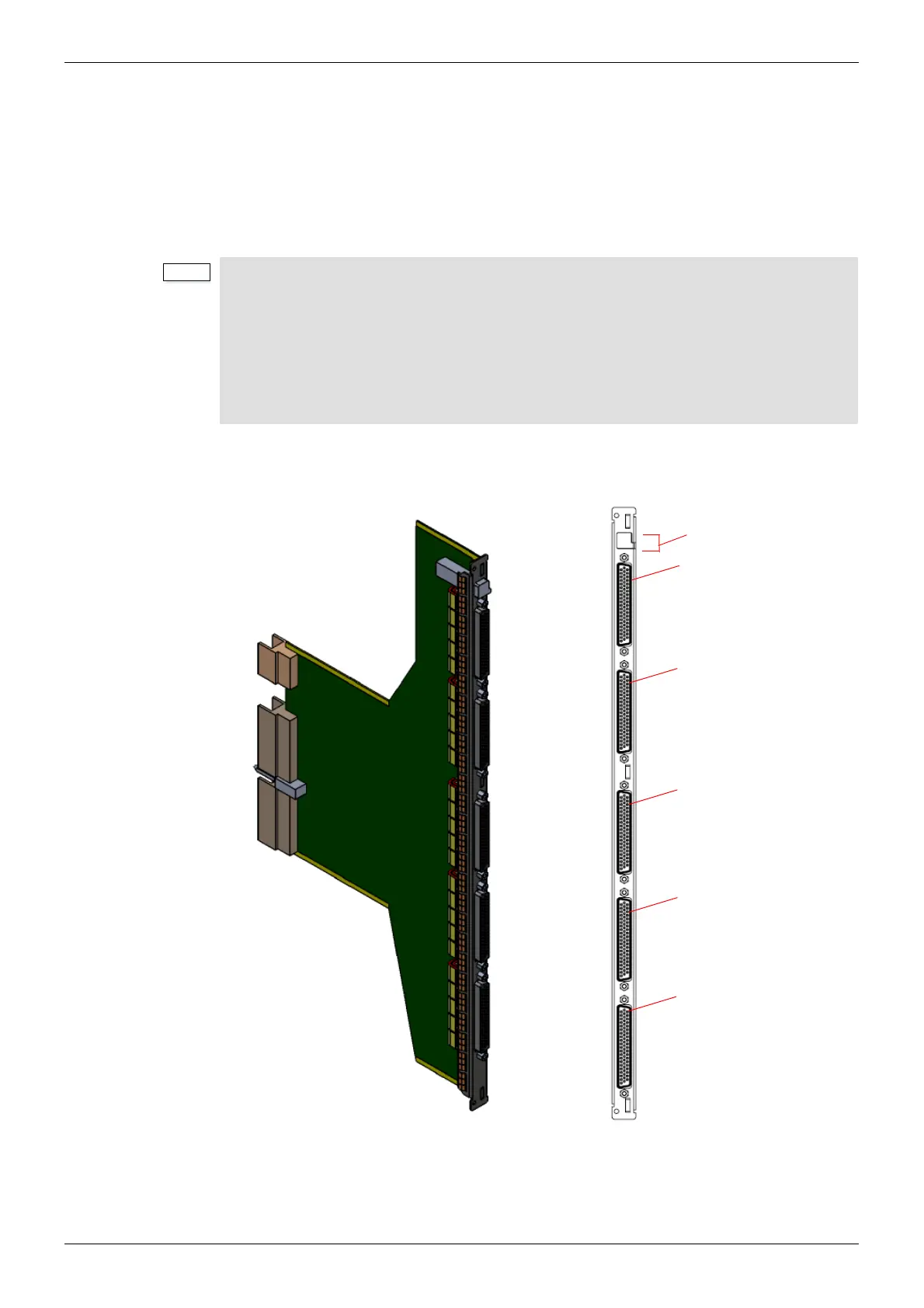

Figure 196 1299 AES Balanced Input Rear Panel (Sirius 830 only)
Not Used
Socket 1
Inputs 1 to 24
Socket 2
Inputs 25 to 48
Socket 3
Inputs 49 to 72
Socket 4
Inputs 73 to 96
Socket 5
Inputs 97 to 120
To Next Page
