Sirius 800 Series User Manual Sirius 840/850: 1362 DS-Link In/Out Expansion Input Input Rear Panels and Input Modules 9.13
Iss 5 Rev 7 Page 121 © 2017 SAM
9.13 Sirius 840/850: 1362 DS-Link In/Out Expansion Input
Sirius 840/850: 1362 DS-Link In DS-Link Out Expansion Input Rear Panel:
The 1362 video DS-Link in DS-Link out expansion input rear panel has 3 DS-Link expansion
inputs and 3 DS-Link expansion outputs.
The 1362 rear panel is used in the Sirius 840/850 with the 5919/5915 video input module
(24 channel video with de-embedder, re-clocking and AHP) and the 5917 video input module
(24 channel with re-clocking).
The DS-Link outputs are copies of the DS-Link video input signals which can be used to
loop-through signals to external SAM IQ modular products or to expand a Sirius 850 system
above 1152
2
(future enhancement).
All the signal inputs on the input rear panel have SAM's unique Catsii feature.
See section 6 for details of the Catsii functionality.
• DS-Link to DS-Link Cable - 6 metre:
Order Code FGAEY WDS6THIN
Cable kit consists of 1 x 6 metre (19 Feet) DS-Link to DS-Link cable.
• DS-Link to DS-Link Cable - 12 meter:
Order Code FGAEY WDS12THICK
Cable kit consists of 1 x 12 metre (39 Feet) DS-Link to DS-Link cable.

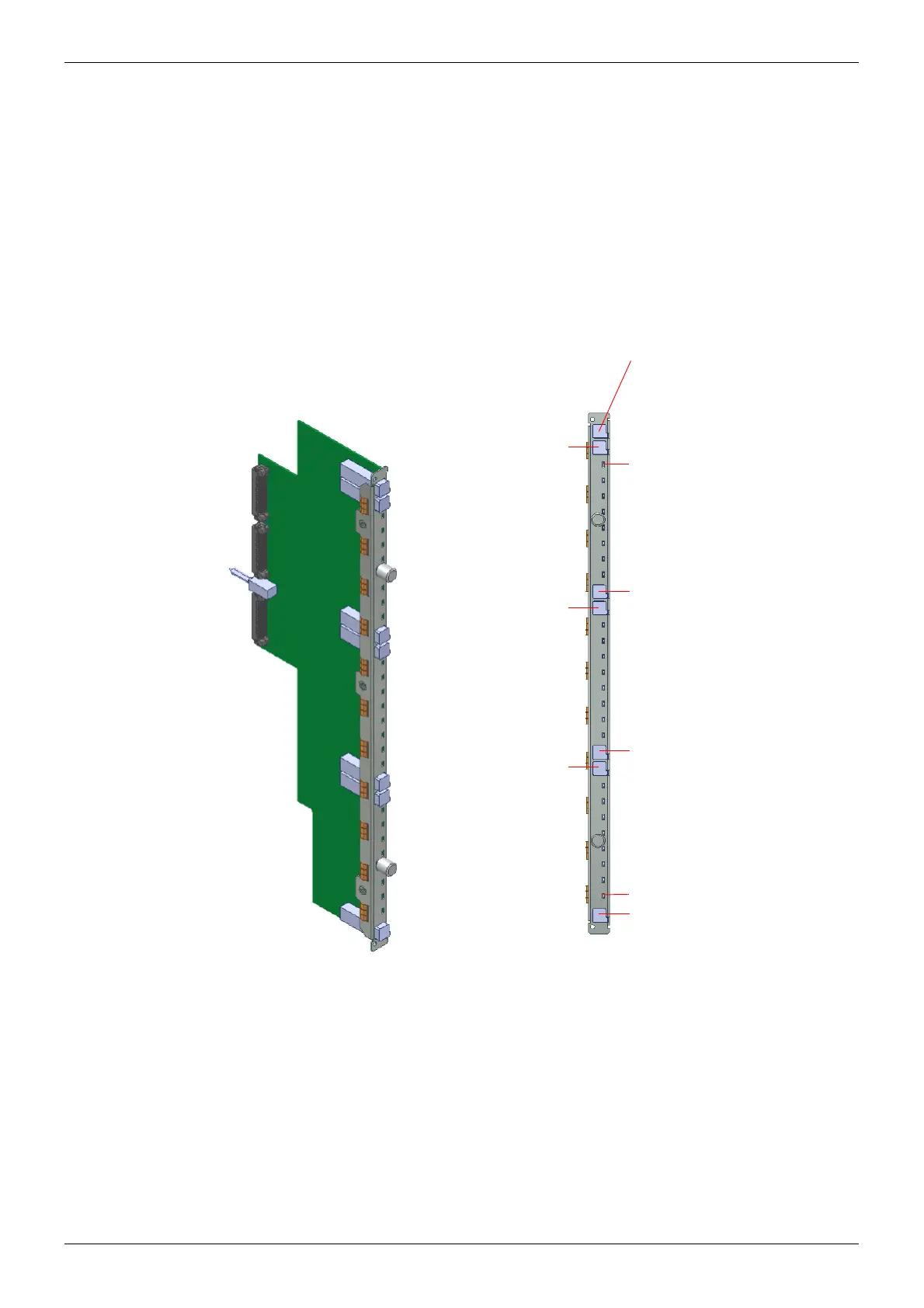

Figure 83 1361 Video Fiber DS-Link Input Rear Panel (Sirius 840/850 only)
DS-Link output H OUT
Video channels 1 to 8
DS-Link output J OUT
Video channels 9 to 16
Sirius 850 (expanded two frame
system) 5919/5915 only:
Audio Expansion to a second
Sirius 850 frame via a DS-Link
cable, see section 12.8
DS-Link output K OUT
Video channels 17 to 24
DS-Link input j in
Video channels 9 to 16
DS-Link input k in
Video channels 17 to 24
DS-Link input h in
Video channels 1 to 8
Catsii 1
Catsii 24
