Sirius 800 Series User Manual Output Rear Panel Modules No Longer Supplied With New Systems C.5
Iss 5 Rev 7 Page 343 © 2017 SAM
C.5 Output Rear Panel
C.5.1 1298 Sirius 800 Balanced AES Output Rear Panel
The 1298 Sirius 800 balanced AES output rear panel has 5 x 62 way female high density
sockets for balanced AES audio outputs.
The 1298 rear panel is used with the 4929/4925 120 channel AES/MADI output module. For
the wiring details for the 62 way D-Type sockets see section 11.10.1.
• The 1298 Sirius 800 Balanced AES output rear panel was supplied with earlier
Sirius 800 router systems and is shown here for users that already have them
fitted.
• The 1353 Sirius 800 Balanced AES output rear panel can be supplied as direct
replacement for the 1298 if required. see section 11.10 for details of the 1353 rear
panel.
• If unbalanced AES outputs are required see section 11.11 for details.

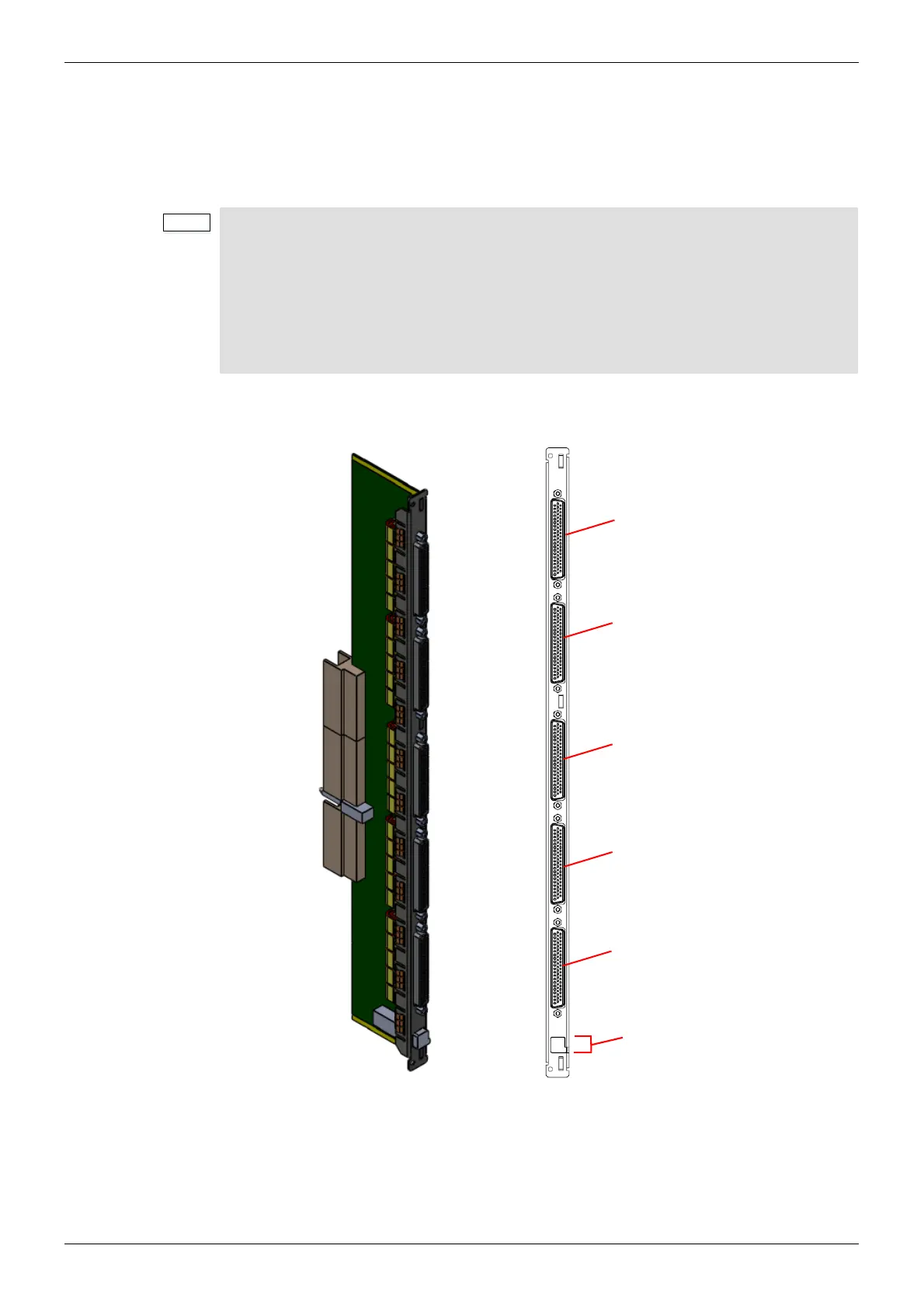

Figure 218 1298 Sirius 800 Balanced AES Output Rear Panel
Not Used
Sockets 1
Outputs 1 to 24
Sockets 2
Outputs 25 to 48
Sockets 3
Outputs 49 to 72
Sockets 4
Outputs 73 to 96
Sockets 5
Outputs 97 to 120
