Sirius 800 Series User Manual 5930 Sirius 840/850 I/p & 5933 O/p Monitoring Multiviewer & Input/Output Monitoring Modules 13.8
Iss 5 Rev 7 Page 247 © 2017 SAM
13.8.2.1 5933 Sirius 840/850 Output Monitoring Module LEDs

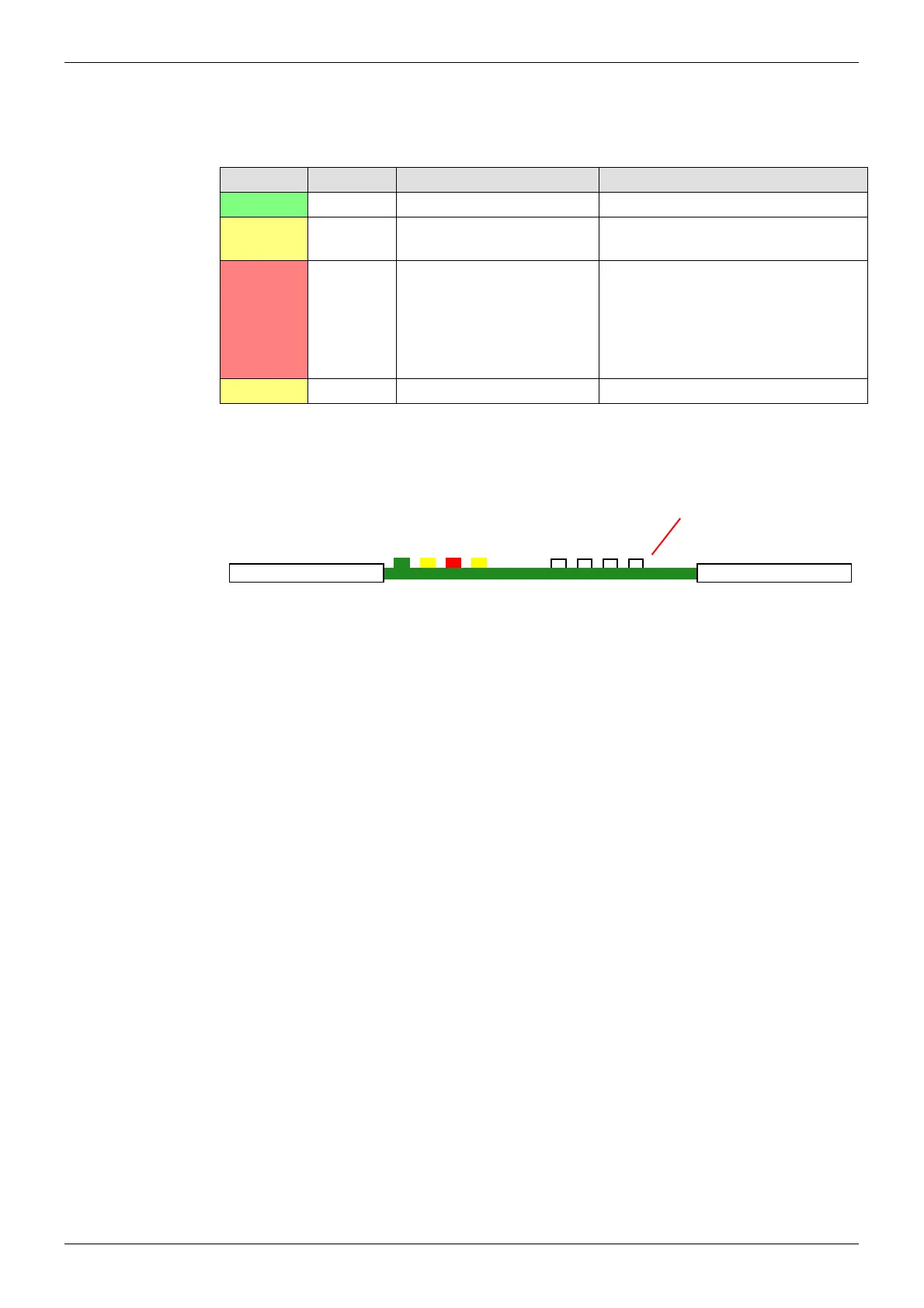

Table 62 shows the LED color code on the 5933 output monitoring module, and Figure 175
shows the front edge of the module.
LED Color Function Detail Normal Working Status
Green Power OK Power to the module On Solid - working correctly
Yellow Command
OK
Command from the Control
module
Flashing - receiving information and
working correctly
Red Command
Error
Error with command from
the Control module
Off - normal state
Flashing - the command message
from the router controller is corrupt or
hasn’t been received. Contact SAM
Customer Support (see section 1.2
for contact details).
Yellow Ethernet For Future Use Off - normal state
Table 62 5933 Sirius 840/850 Output Monitoring Module LEDs
Figure 175 5933 Sirius 840/850 Output Monitoring Module LEDs
Power OK Command OK Command Error For Future Use Mon1 Mon2 Mon3 Mon4
Monitor LED's
replicate the four
monitor Catsii LED's,
see section 13.8.2
5933
