Sirius 800 Series User Manual 4929 Sirius 800 Audio AES/MADI Output with Audio Delay Output Modules and Rear Panels 11.1
Iss 5 Rev 7 Page 184 © 2017 SAM
Green
Video
Ref 1
External Video
Reference 1 Status
On Solid - external video reference
present and local oscillators locked.
Off - external video reference not
present.
Green
Video
Ref 2
External Video
Reference 2 Status
On Solid - external video reference
present and local oscillators locked.
Off - external video reference not
present.
Green
Video
Ref 3
External Video
Reference 3 Status
On Solid - external video reference
present and local oscillators locked.
Off - external video reference not
present.
Green
Video
Ref 4
External Video
Reference 4 Status
On Solid - external video reference
present and local oscillators locked.
Off - external video reference not
present.
Green
AES Ref External AES
Reference Status
On Solid - external AES reference
present and local oscillators locked.
Off - external video reference not
present.

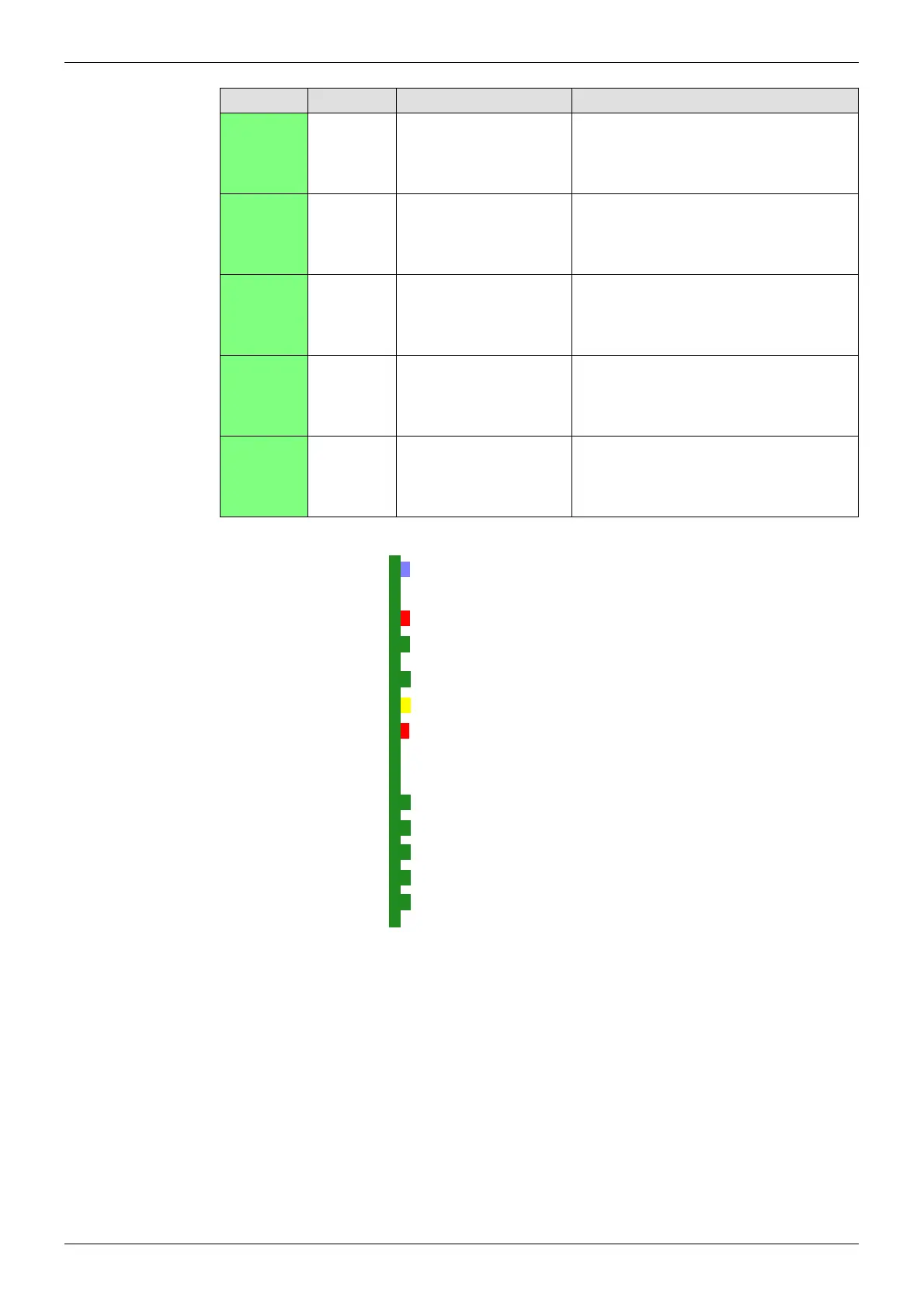

Figure 117 4929 Output Module LEDs
LED Color Label Detail Normal Working Status
Table 40 4929 Output Module LED Information (Continued)
Power OK
Command OK
Error
LED R
LED G
Video Ref 1
Video Ref 2
Video Ref 3
Video Ref 4
AES Ref
Fugue Status
