Sirius 800 Series User Manual Dual Sirius 850 Frames up to 1152 x 1152 Video Sirius 850: Video and Audio Expansion 12.2
Iss 5 Rev 7 Page 215 © 2017 SAM
The following figure shows the cabling for expansion from slot 1 between routers as an
example. A single 1290/1365 expansion output from each router is shown for clarity and the
method can be applied to any of the other 1290/1365 expansion outputs.

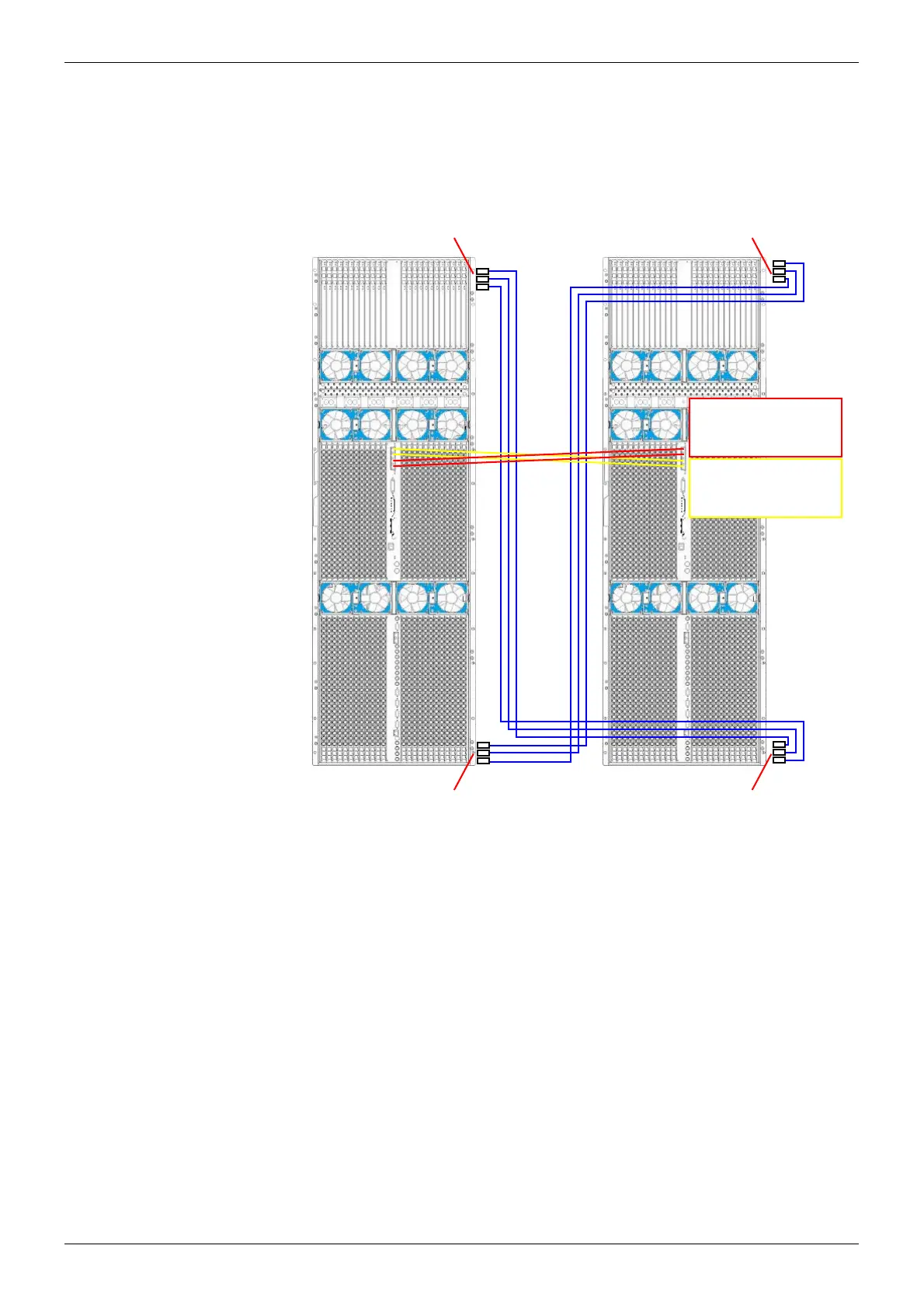

Figure 139 Two Sirius 850 Frames Connected Together (slot 1 cabling shown as an example)
Expansion Out connectors
1290: A, B, C
1365: A OUT, B OUT and C OUT
for outputs 1 to 24 in slot 1
Expansion Out connectors
1290: A, B, C
1365: A OUT, B OUT and C OUT
for outputs 1 to 24 in slot 1
Expansion In connectors
a, b and c for outputs 1 to 24 in slot 1
Expansion In connectors
a, b and c for outputs 1 to 24 in slot 1
RJ45 Local
Local A to Remote A
Local B to Remote B
RJ45 Local
Remote A to Local A
Remote B to Local B
To Next Page
