Sirius 800 Series User Manual 1369 Sirius 830/840 Ext. Multiviewer HD BNC Rear Multiviewer & Input/Output Monitoring Modules 13.10
Iss 5 Rev 7 Page 250 © 2017 SAM

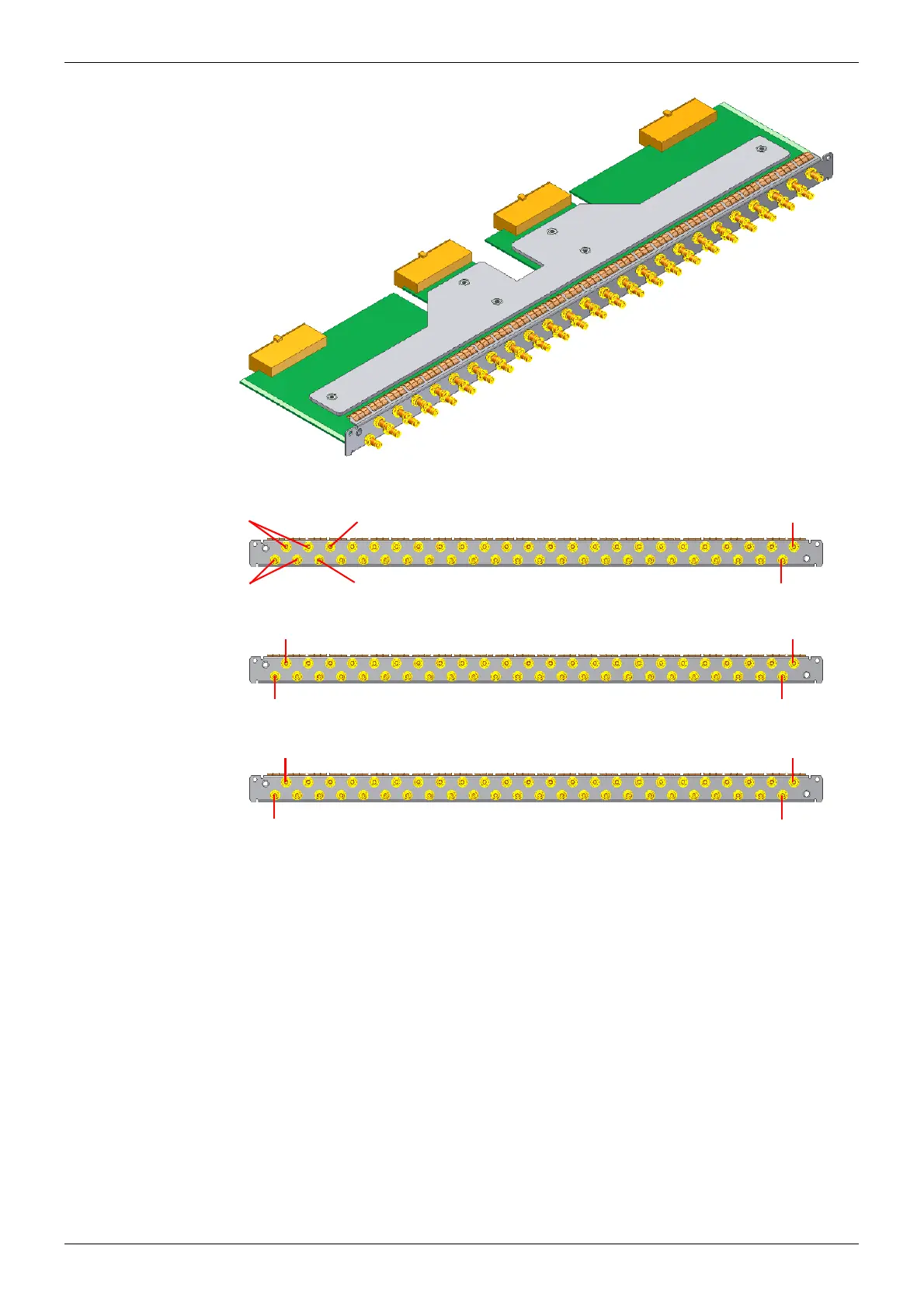

Figure 177 1369 Sirius 830/840 External Multiviewer Output HD BNC Rear Panel
If one 1369 rear panel is used it is fitted in the bottom external
multiviewer output slot and numbered as follows:
48
2
47 1
96
95
50
49
If two 1369 rear panels are used then the second rear panel is fitted
in the middle ext. multiviewer o/p slot and numbered as follows:
Not Used
Not Used
98
97
If three 1369 rear panels are used then the third rear panel is fitted in
the top external multiviewer output slot and numbered as follows:
140
139
To Next Page
