CYLINDER HEAD, CYLINDER, PISTON
CYLINDER HEAD, CYLINDER, PISTON
3-5-8

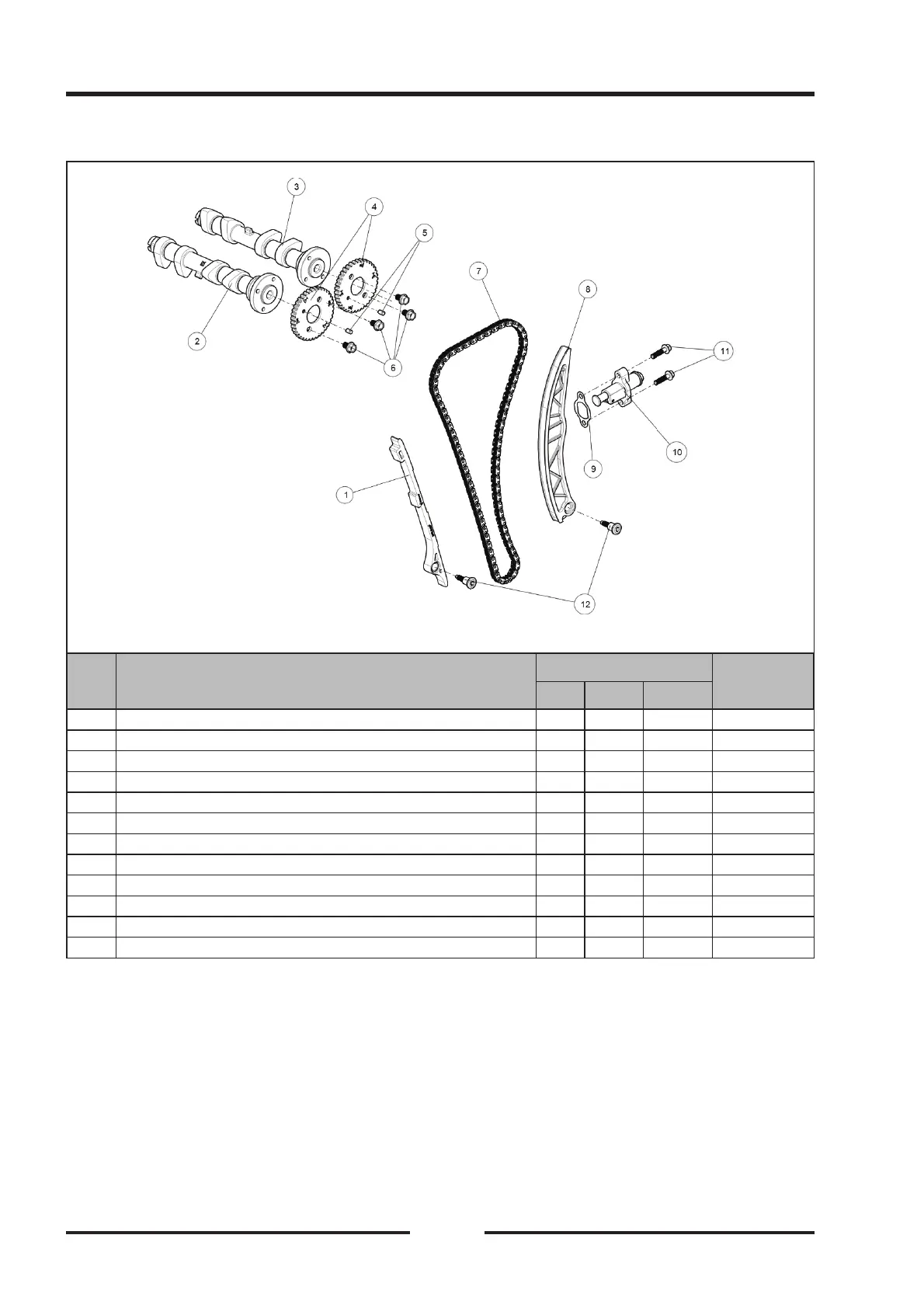

Explosive view of Valve Mechanism
No. Fastener
Torque
Remarks
N·m kgf·m ft·lb
1 Chain guide plate assembly
2 Exhaust camshaft combination
3 Intake camshaft combination
4 Timing chain assembly
5
Cylindrical pin 5×8
6
Hexagon fl ange bolt M6×12 9.8 1.0 87 in•lb
L
7
Timing chain assembly
8
Chain tensioner
9
Tensioner gasket
10
Tensioner gasket
11 Bolt M6×25 9.8 1.0 87 in•lb
12
Hexagon socket pan head stepped bolts
G: Use grease suitable for oil seals and O-rings
L: Use fastening agent
.
O: Apply oil
.
SS: Use silicone sealant
.
S: Tighten in order
.
R: Spare parts
