6 - 10
COOLING SYSTEM
A
B
B
A
breather pipe and the engine radiator water inlet and
outlet hoses.
◆ Remove the mounting bolts of the upper bracket of
the radiator, and remove the upper bracket of the
radiator.
◆ Remove the engine radiator.
!
Do not touch the radiator core. This may damage the
radiator, resulting in reduced cooling effi ciency.

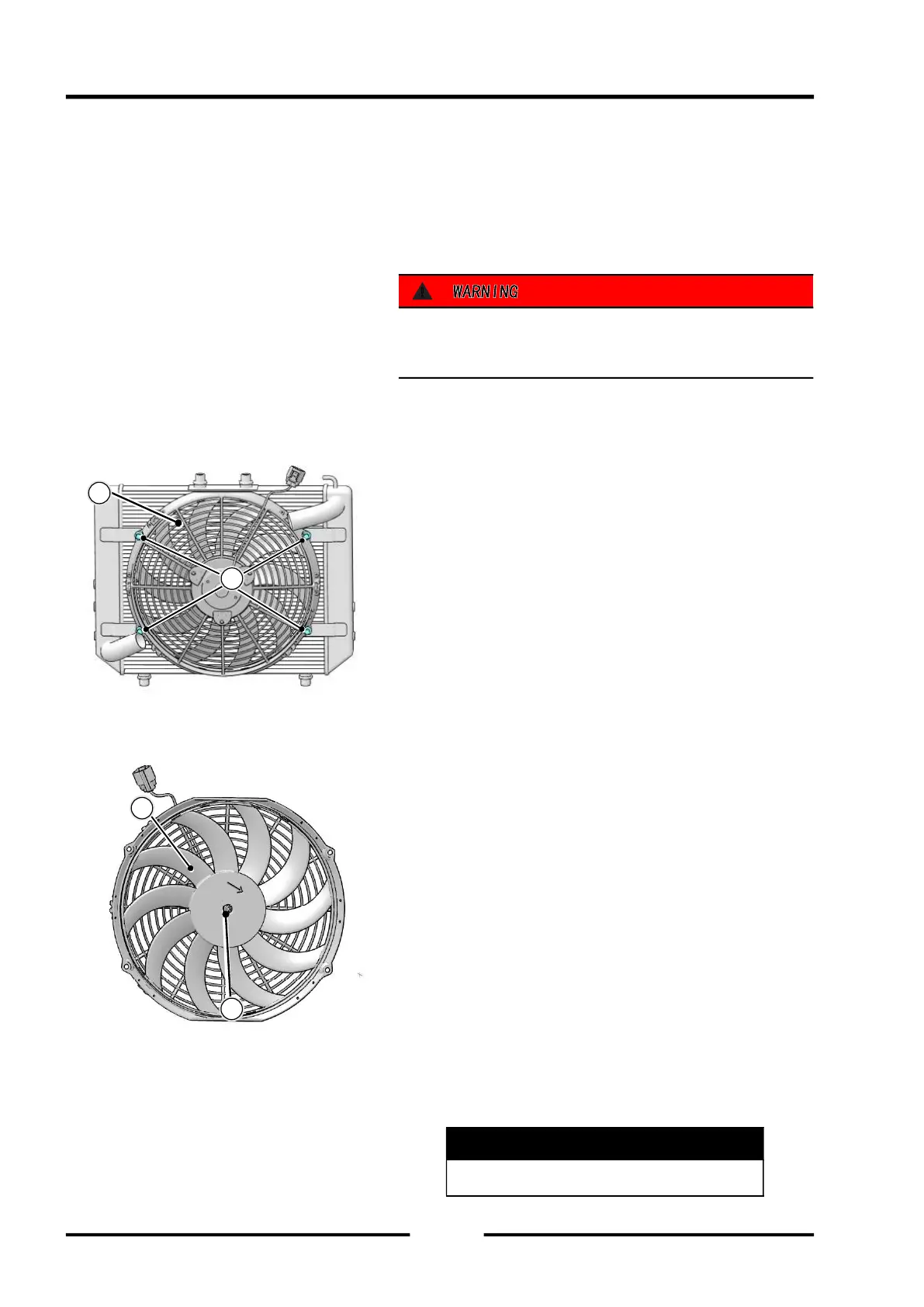

Radiator fan removal
Radiator (see radiator removal)
◆ Radiator fan assembly bolt【A】
◆
Fan assembly
【
B
】
◆ Radiator fan mounting nut【A】
◆ Radiator fan【B】
Radiator fan installation
◆ Radiator fan
◆ Radiator fan assembly
◆ Tighten
Radiator fan assembly bolt torque
8.8N.m（0.9 kgf·m，6.5 ft·lbs）
To Next Page
