11 - 3
BRAKE SYSTEM
Specifi cations
Item Standard Service Limit
Brake Fluid:
Type DOT 4 – – –
Front Disc Brake:
Pad lining thickness
Disc thickness
Disc runout
4.0 mm (0.16 in.)
4.8~5.2mm (0.19～ 0.205 in.)
TIR 0.08 mm (0.003 in.) or less
1 mm (0.04 in.)
4 mm (0.16 in.)
TIR 0.1 mm (0.004 in.)
Rear Brake Lever, Pedal and Cables:
Rear brake pedal position
Working stroke of parking handle
Working stroke of rear brake pedal
35 ~ 40 mm (1.38 ～ 1.57 in.)
60~80 mm (2.4～ 3.14in.)
25~30 mm (1.0～1.2in.)
– – –
– – –
– – –
No. Fastener
Torque
Remarks
N·m kgf·m ft·lb
1 Parking Brake Lever Screw 8.8 0.9 78in.lb
2 Parking handle fastening bolt 8.8 0.9 78in.lb

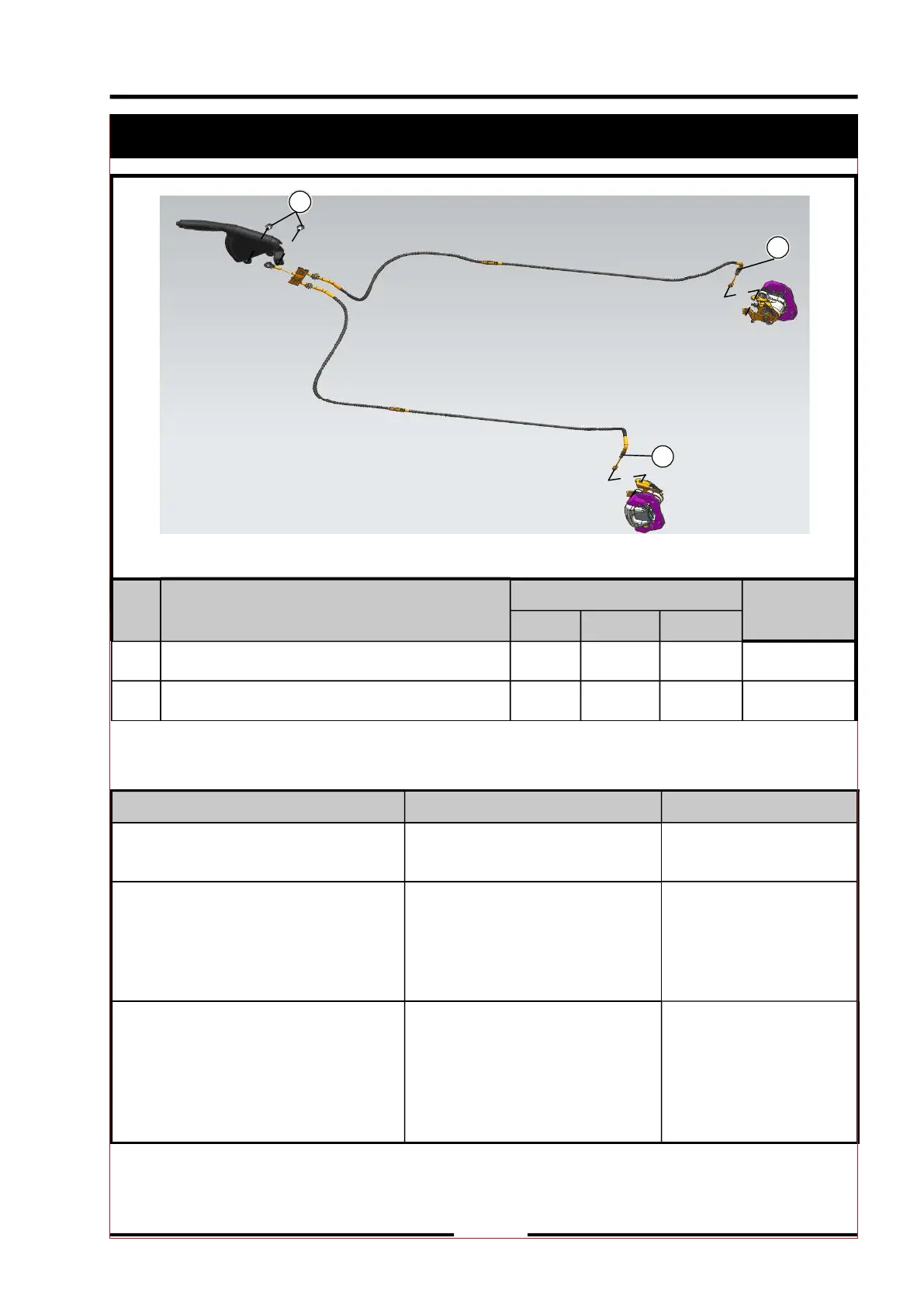

驻车制动爆炸图
2
1
1
