13 - 25
VEHICLE BODY AND FRAME

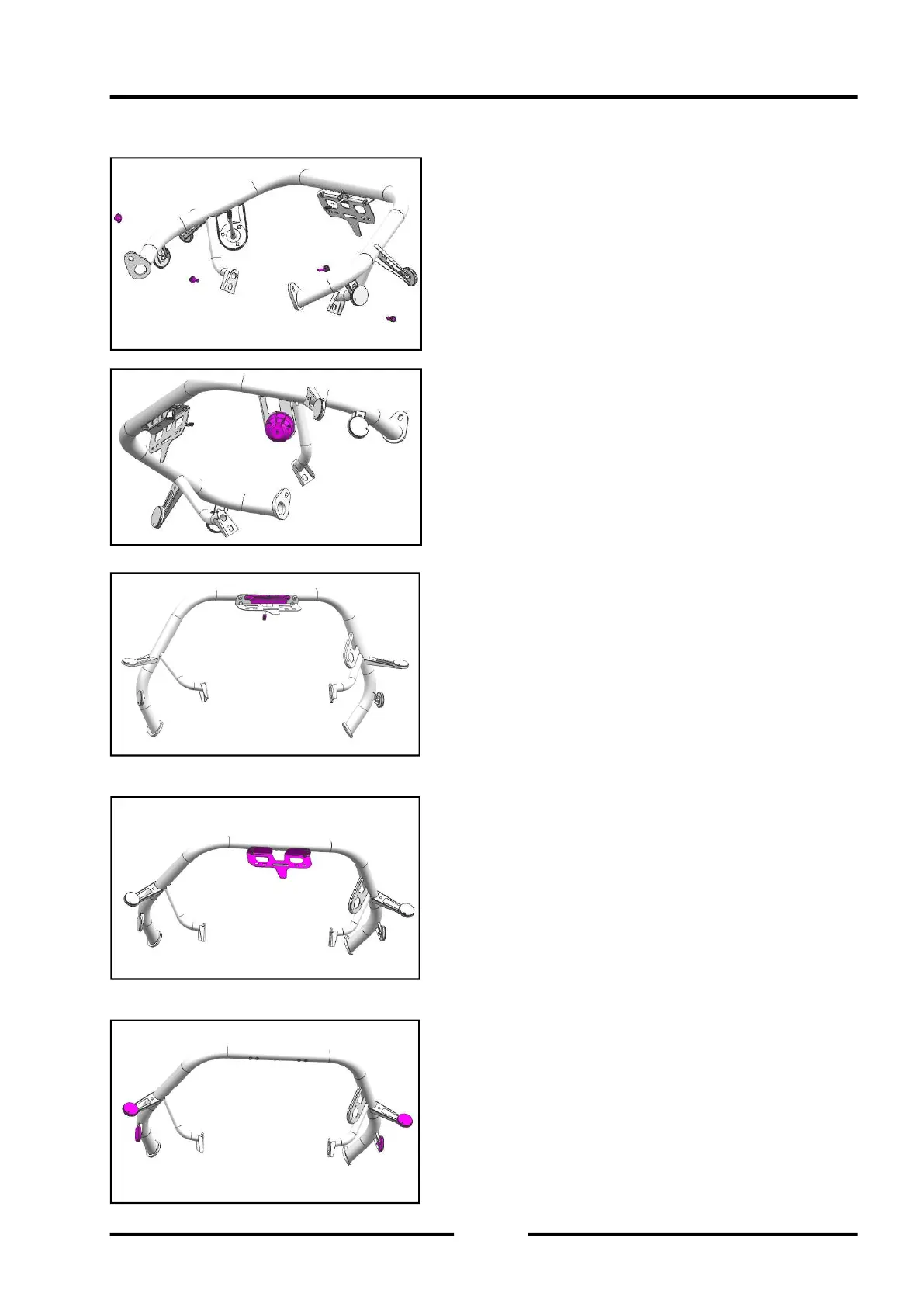

Removal of rear bumper assembly
◆ Remove the mounting bolts of the rear bumper
assembly (hex flange bolts M10×1.25×20 and
hexagon flange bolts M8×20) and remove the rear
bumper assembly. Before this, you need to unplug
the rear license plate light and trailer power socket
cable connector (refer to the relevant chapters for
details)
◆ Remove the mounting screws of the trailer power
socket (cross recessed pan head screw 3-M5×30)
and remove the trailer power socket.
◆ Remove the mounting screws of the rear license
plate lamp (large pan head hexagon socket bolt
4-M6×16), and remove the rear license plate lamp.
◆ Remove the mounting screws of the rear license
plate lamp bracket (large pan-head hexagon socket
bolt 4-M6×16), and remove the rear license plate
lamp bracket.
◆
Remove the mounting nut (hex nut M6) of the
circular reflector (amber) and the circular reflector
(red), and remove the refl ector
◆ To install the rear bumper assembly, follow the
reverse procedure
