VEHICLE BODY AND FRAME
No. Fastener
Torque
Remarks
N·m kgf·m ft·lb
1 Hexagon fl ange bolt M8×20 22～30 2.2～3.0
17
～22
2 Hexagon fl ange bolt M10×1.25×215 40～50 4.0～5.0 30~37
3
H e x ago n f la n ge f a c e l o c k n u t
M10×1.25
40～50 4.0～5.0 30~37
4 Hexagon fl ange bolt M8×90 22～30 2.2～3.0
17
～22
5 Hexagon fl ange face lock nut M8 22～30 2.2～3.0
17
～22
6 Hexagon fl ange bolt M10×1.25×20 40～50 4.0～5.0 30~37

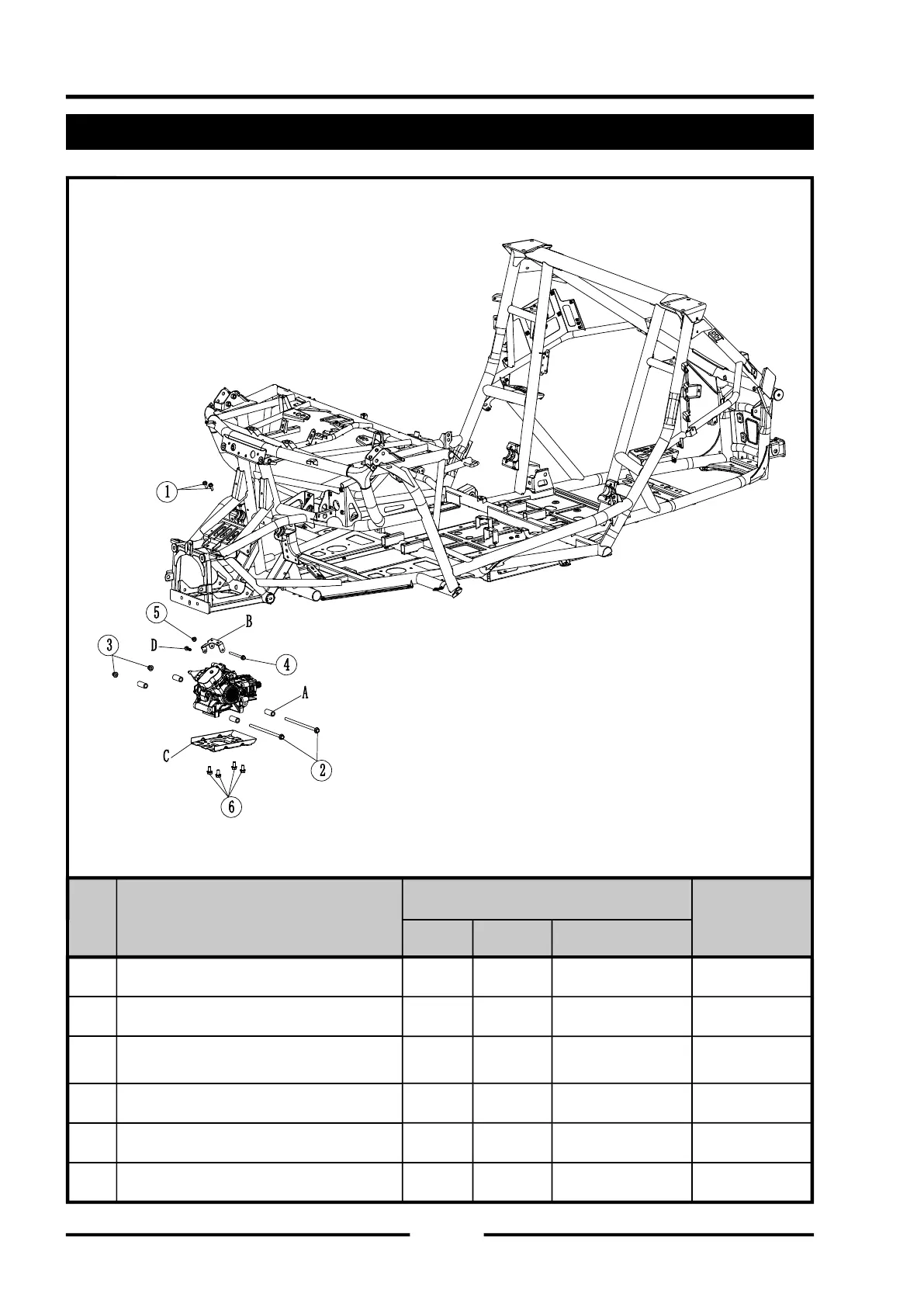

EXPLODED VIEW OF FRONT AXLE DISASSEMBLY
