Segway VILLIAN SSV Series - Lighting System Circuit

14 - 17
ELECTRICAL SYSTEM
1 2 3
4
5
6
7
8
9
11
12 13
14
15
16
10

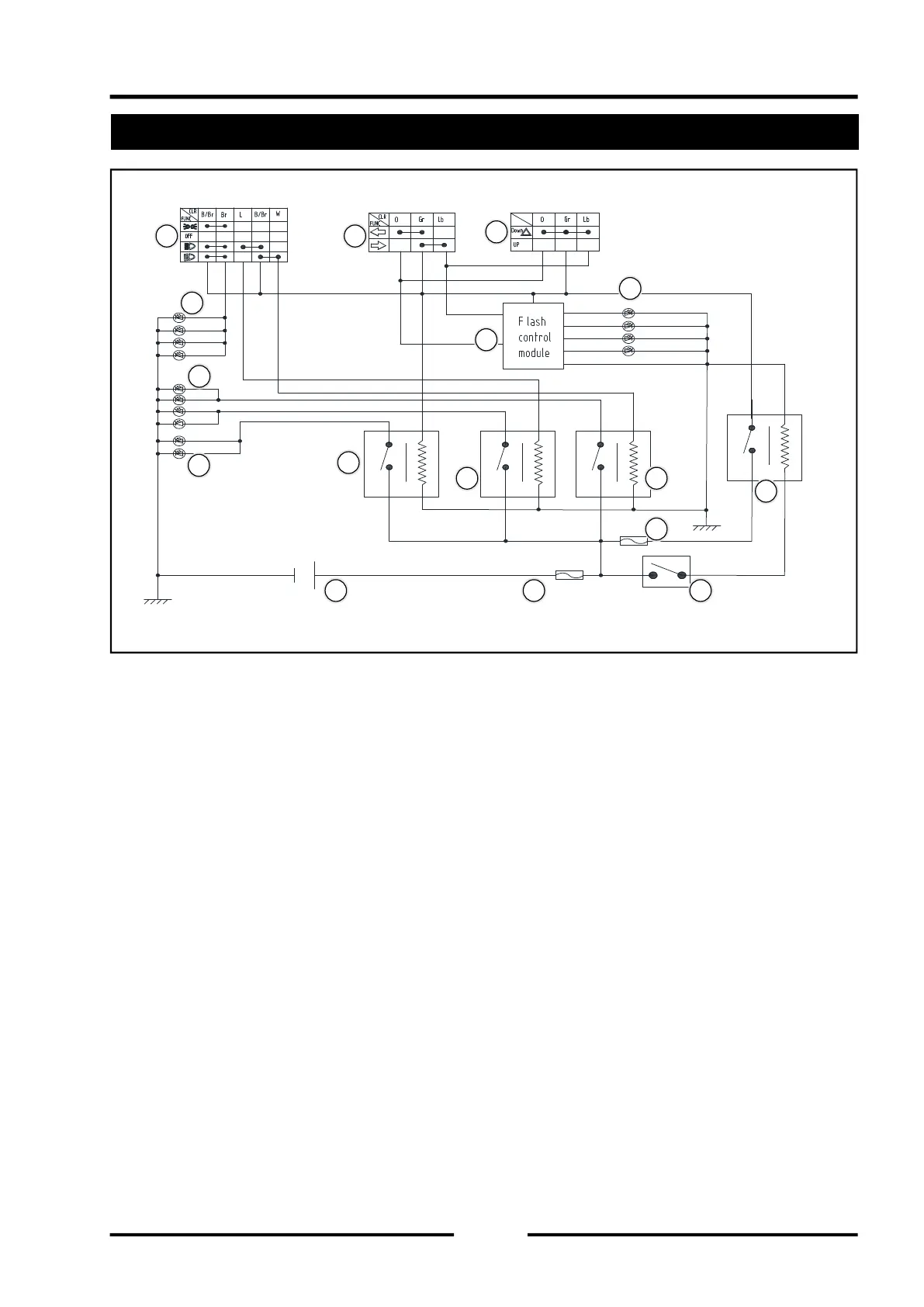

LIGHTING SYSTEM CIRCUIT
1 Battery 2 Main Fuse 3 Lgnition lock 4 Fuse
5 Main relay 6 Low beam relay 7 High beam relay 8 Daytime running light relay
9 Daytime running light 10 High/Low beam 11 Position lights 12 Lights switch
13 turn switch 14 Warning switch 15 Flash CM 16 turn sLights
