Segway VILLIAN SSV Series User Manual

4 - 13

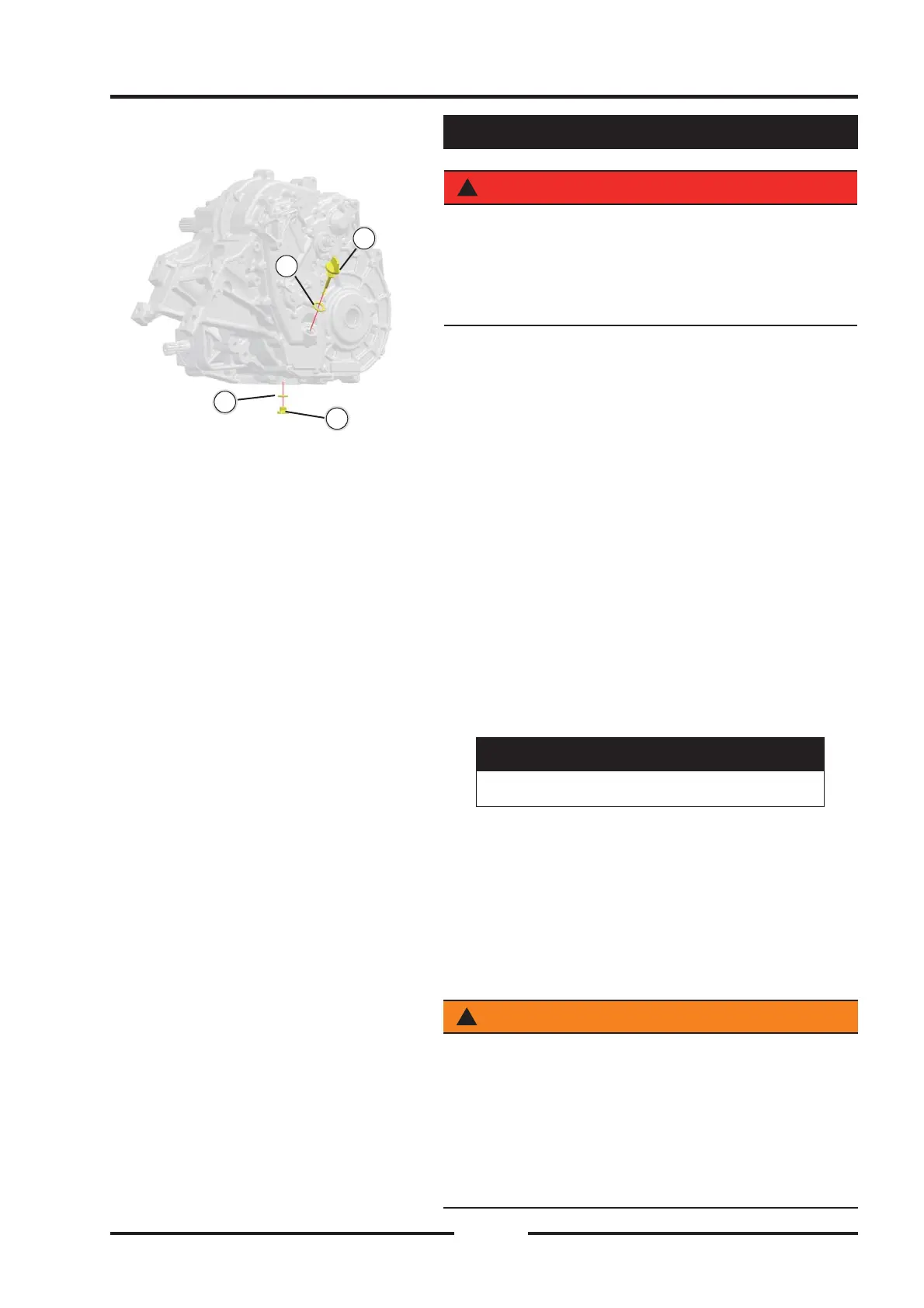

FRONT AXLE AND REAR GEARBOX
FRONT AXLE AND REAR GEARBOX
!
!
WARNING
Vehicle operation with insufficient,deteriorated,or
contaminated speed gearbox oil will cause accelerated
wear and may result in Gearbox Damage, accident,and
injury.
【
A
】
O-ring seal 13.8×2.5
【
B
】
Screw plug m14 assembly
【
C
】
Oil dipstick
【
D
】
O-ring seal 18×3.5
Drain the gearbox oil
◆
Tools: 8mm Allen key.
◆
Unscrew
【
B
】
counterclockwise, remove
【
A
】
and
【
B
】
, let the gearbox oil fl ow out,
and keep it for 10 minutes. Then put
【
A
】
on the bottom of the thread of
【
B
】
, tighten
it clockwise, and wipe clean the surrounding
oil. Waste oil should be poured into a special
container to avoid environmental pollution.
Tightening torque of screw plug M14 assembly
15N·m
(1.53kgf·m,11.1ft·lb)
(1.53kgf·m,11.1ft·lb)
Add gearbox oil
◆
Turn on the oil dipstick
◆
Unscrew
【
C
】
counterclockwise, remove
【
D
】
and
【
C
】
and add new gearbox oil. Put
【
D
】
on
the bottom of
【
C
】
thread. Tighten
【
C
】
and wipe
off the surrounding oil.
!
!
CAUTION
During installation, check whether the O-ring is intact
and not twisted. If the O-ring is damaged, it will cause
gearbox oil leakage, which may cause abnormal wear
of the internal parts of the gearbox or even damage the
gearbox. Please replace the O-ring with a new one in
time.
Replacement of gearbox gear oil
A
A
B
B
C
C
D
D
