STARTING SYSTEM
3-3-6
B
B
C
C
A
A

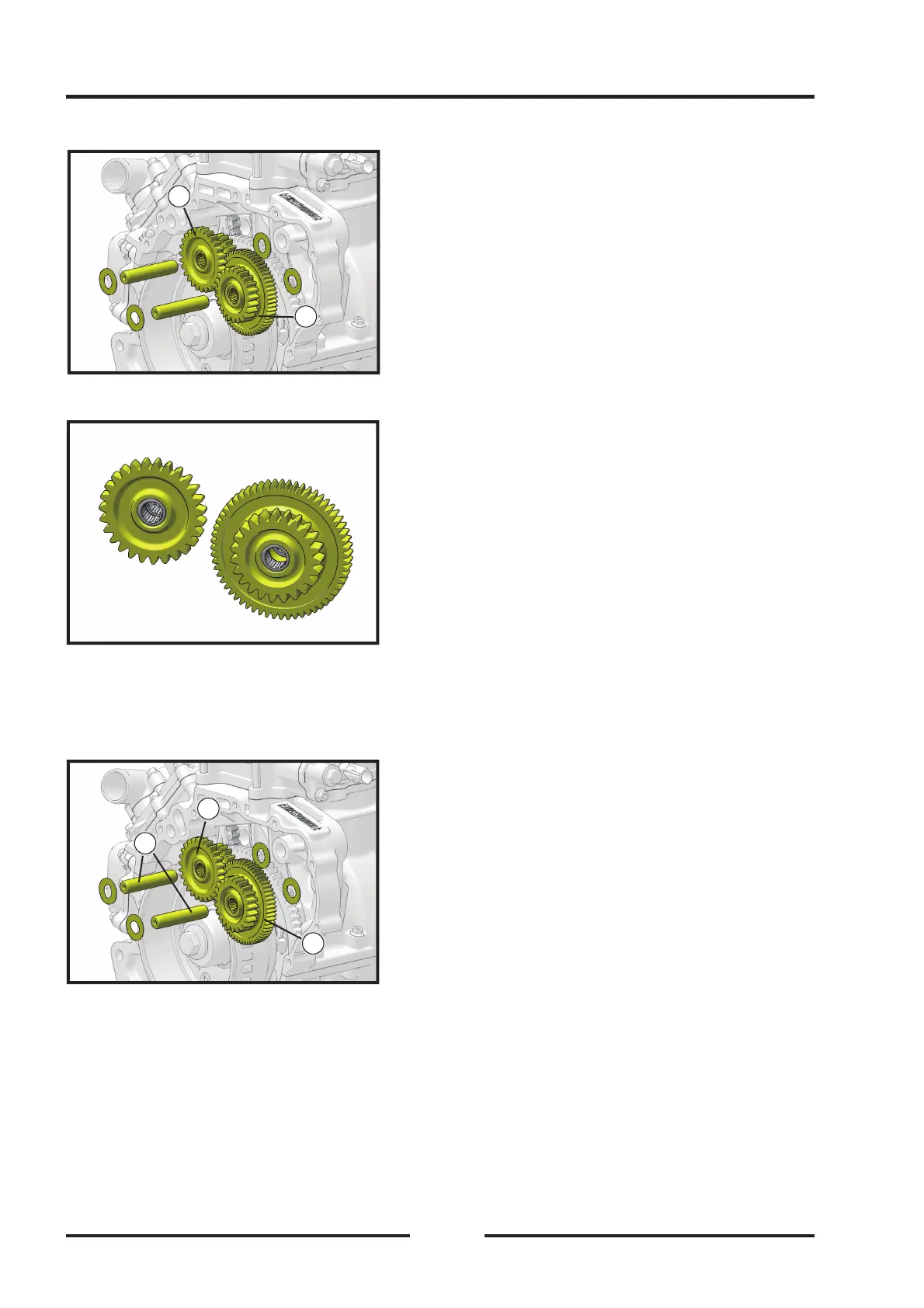

Disassemble the starting overload protector
and the double gear assembly
◆
Remove the gasket and gear shaft, take out the
double gear assembly
【
A
】
and the starting
overload protector
【
B
】
◆
Check whether the gear is damaged, check the
clearance of the gear shaft hole, if the clearance is
too large, you need to replace the gear assembly
Install starting overload protector and double
gear assembly
◆
Install the gear shaft
【
A
】
into the starting double
gear assembly
【
B
】
and the starting overload
protector
【
C
】
, and install shims at both ends
◆
After meshing the large gear of
【
B
】
with the small
gear of
【
C
】
, install it into the upper crankcase
B
B
A
A
