10 - 15
WHEELS AND TIRES
A
B
A
B
C
A
B

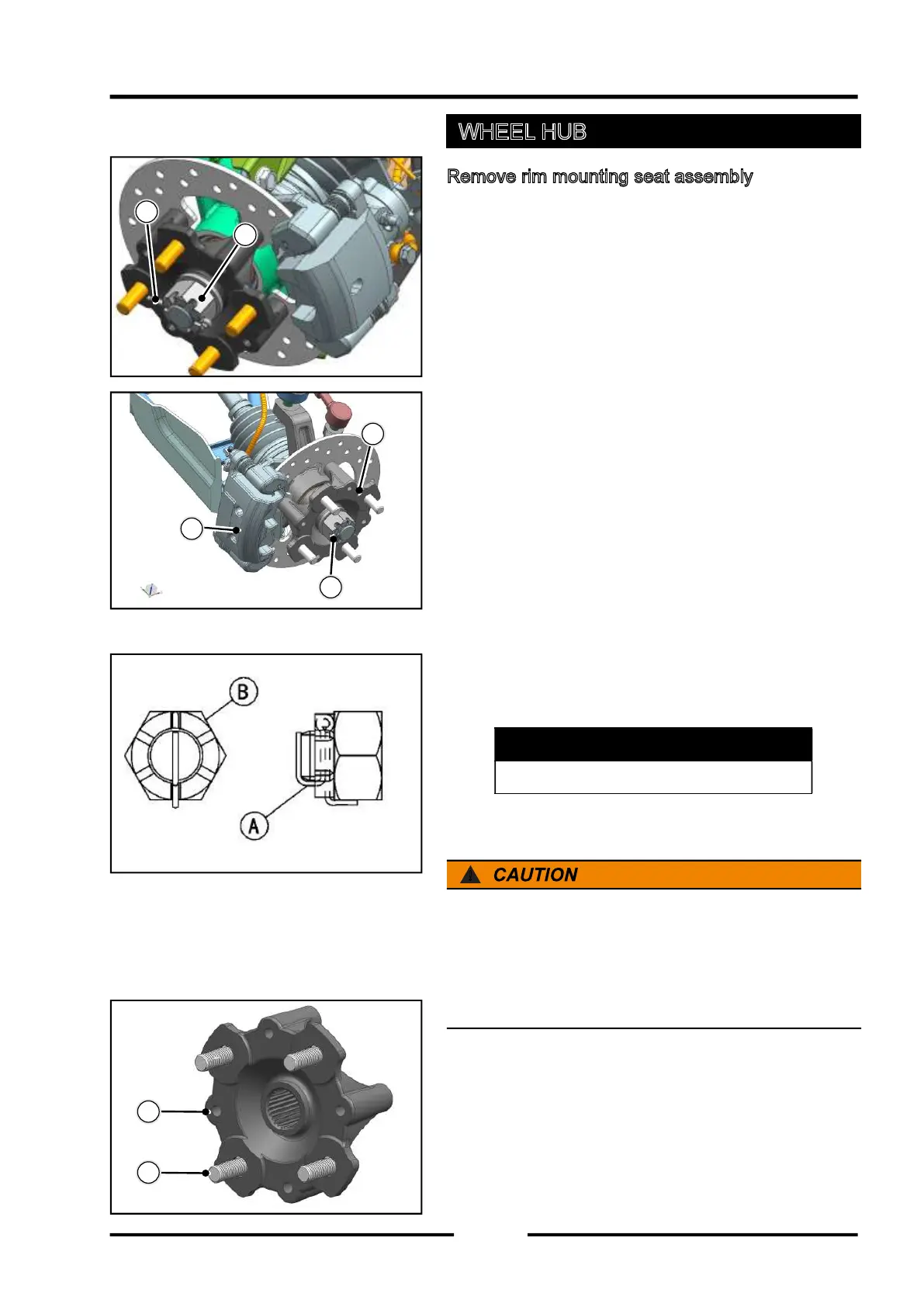

Remove rim mounting seat assembly
◆ Remove the wheel (see wheel removal).
◆ Unplug: split pin [A]
◆
Loosen half axle nut [B]
◆ Unscrew the mounting bolt, remove the caliper [D],
and let the caliper hang freely Hang up.
◆
Remove axle nut [B], remove washer [E] and pull
down hub Install seat assembly [C] and brake disc.
◆ Separate the brake disc from the hub
Wheel hub assembly
◆ Installing a brake disc (see "Braking" chapter)
Tighten axle nut torque
300 N.m（ 30.6kgf·m，221ft·lb ）
◆ Insert the new cotter 【A】 and bend it to the nut
【B】.
!
◆ When inserting the cotter, if the slotted nut does not
align with the open pin hole in the half shaft, tighten
the nut clockwise until the next hole is aligned.
◆ Loosen once and tighten again as the slot passes
through the nearest hole.
Wheel hub disassembly/assembly
◆ No need to press out hub bolts【A】.
◆ If any hub bolts are damaged, please replace hub
mounting seat 【B】 and bolt 【A】 totally.
WHEEL HUB
