WATER PUMP ASSEMBLY
3-7-5
B
B
D
D
E
E
G
G
F
F
H
H
I
I
J
J
M
M
N
N
K
K
L
L
C
C

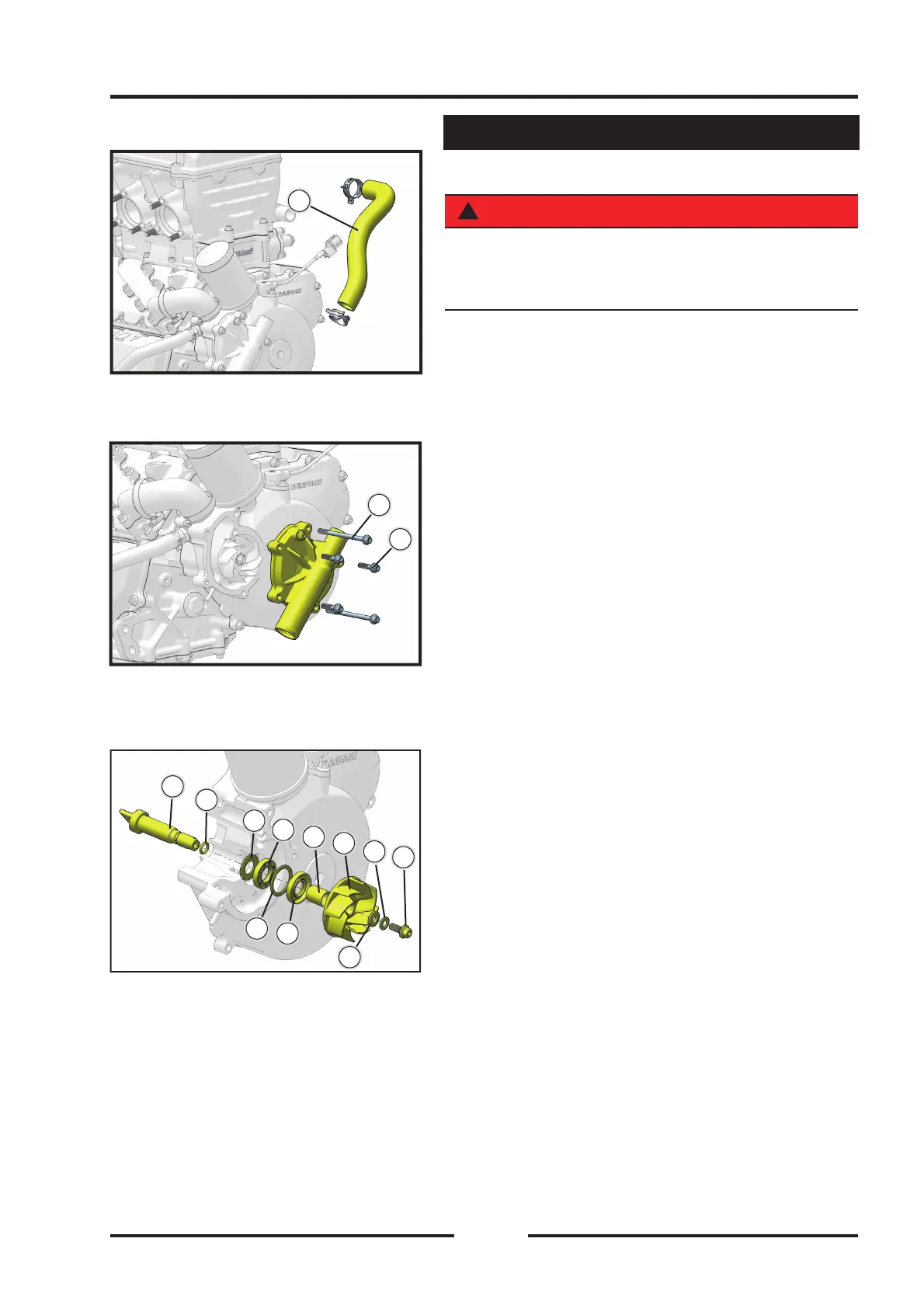

Disassemble the water pump
!
WARNING
Make sure that the engine has cooled down before
disassembly. Hot coolant and steam can cause serious
injury.
◆
Disassemble the two clamps and remove the small
circulating water pipe
【
A
】
.
◆
Disassemble two M6×95 bolts
【
B
】
, three M6×30
bolts
【
C
】
, and remove the water pump cover.
◆
Remove the left crankcase cover sub-assembly (see
the section of crankcase assembly).
◆
Unscrew the bolt
【
D
】
, take off the stack spring
【
E
】
, combined washer
【
F
】
, and water pump
impeller
【
G
】
in sequence.
◆
Remove the water pump shaft
【
N
】
and O-ring
【
M
】
, and then remove the bushing
【
H
】
, oil
seal
【
I
】
, fl at washer
【
J
】
, oil seal
【
K
】
, and fl at
washer
【
L
】
in turn.
Water pump assembly
A
A
