2 - 10
MAINTENANCE
Shift Cable Inspection / Adjustment
Shift cable adjustment may be necessary if symptoms
include:
No gear position or AWD display on instrument cluster
Ratcheting noise on deceleration
Inability to engage into a gear
Excessive gear lash (noise)
Gear selector moving out of desired range

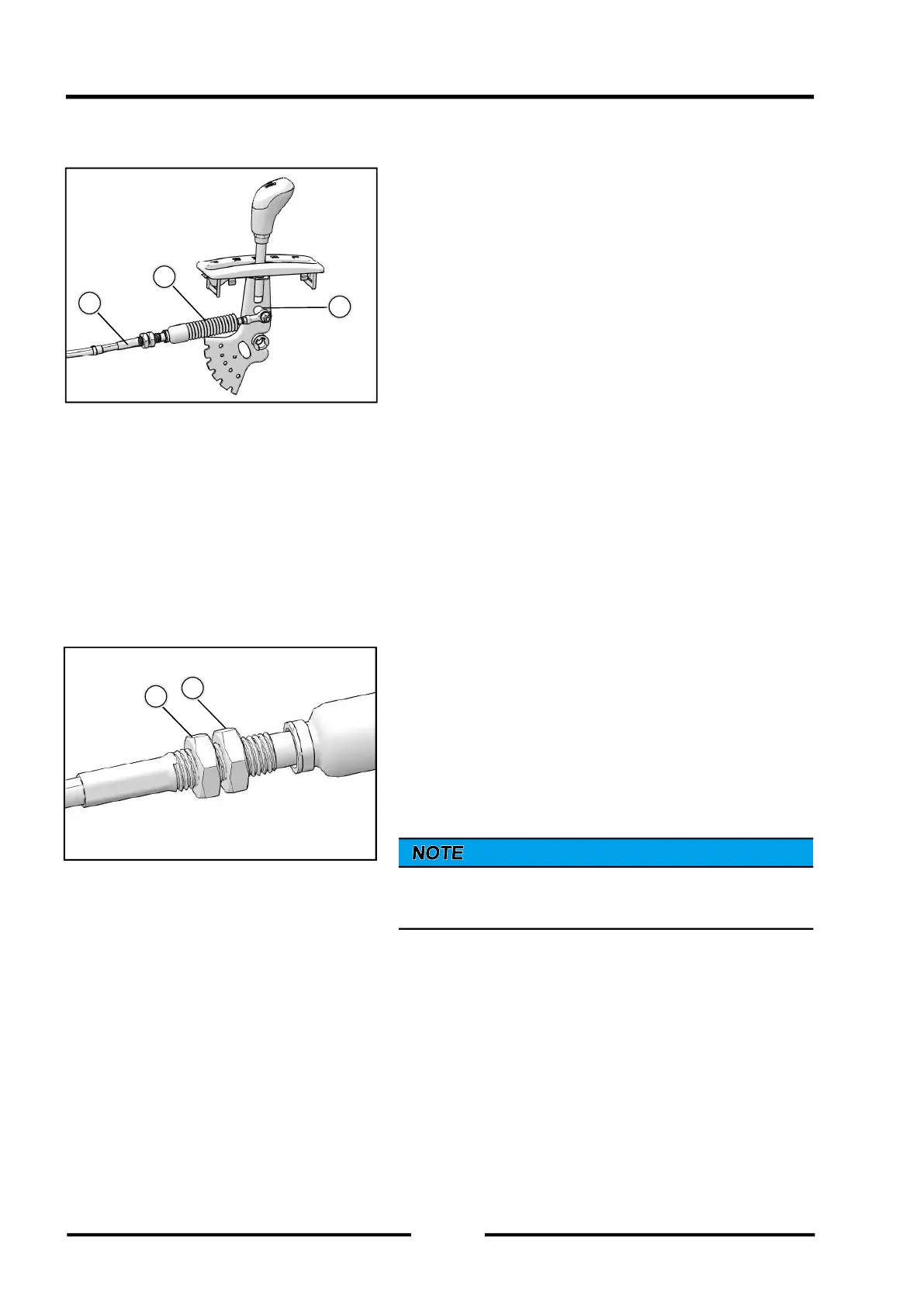

【A】pivot bushings
【B】dust boot
【C】shift cable
◆ Locate the shift cable attached to the transmission
case in the right rear wheel well area.
◆ Inspect shift cable, pivot bushings, and dust boot.
Replace if worn or damaged.
If adjustment is required, loosen the lower jam nut and
pull the cable out of the mount to move the upper jam
nut.
【A】upper jam nut
【B】lower jam nut
◆ Adjust the shift cable so there is the same amount
of cable travel when shifting slightly past HIGH gear
and PARK.
◆ Thread the upper or lower jam nut as required to
obtain proper cable adjustment.
This procedure may require a few attempts to obtain the
proper adjustment.
◆ Once the proper adjustment is obtained, place the
shift cable and upper jam nut into the mount. Tighten
the lower jam nut against the mount.
◆ Start engine and shift through all gears to ensure the
shift cable is properly adjusted. If transmission still
ratchets after cable adjustment, the transmission will
require service.
A
B
C
B
A
