13 - 27

VEHICLE BODY AND FRAME

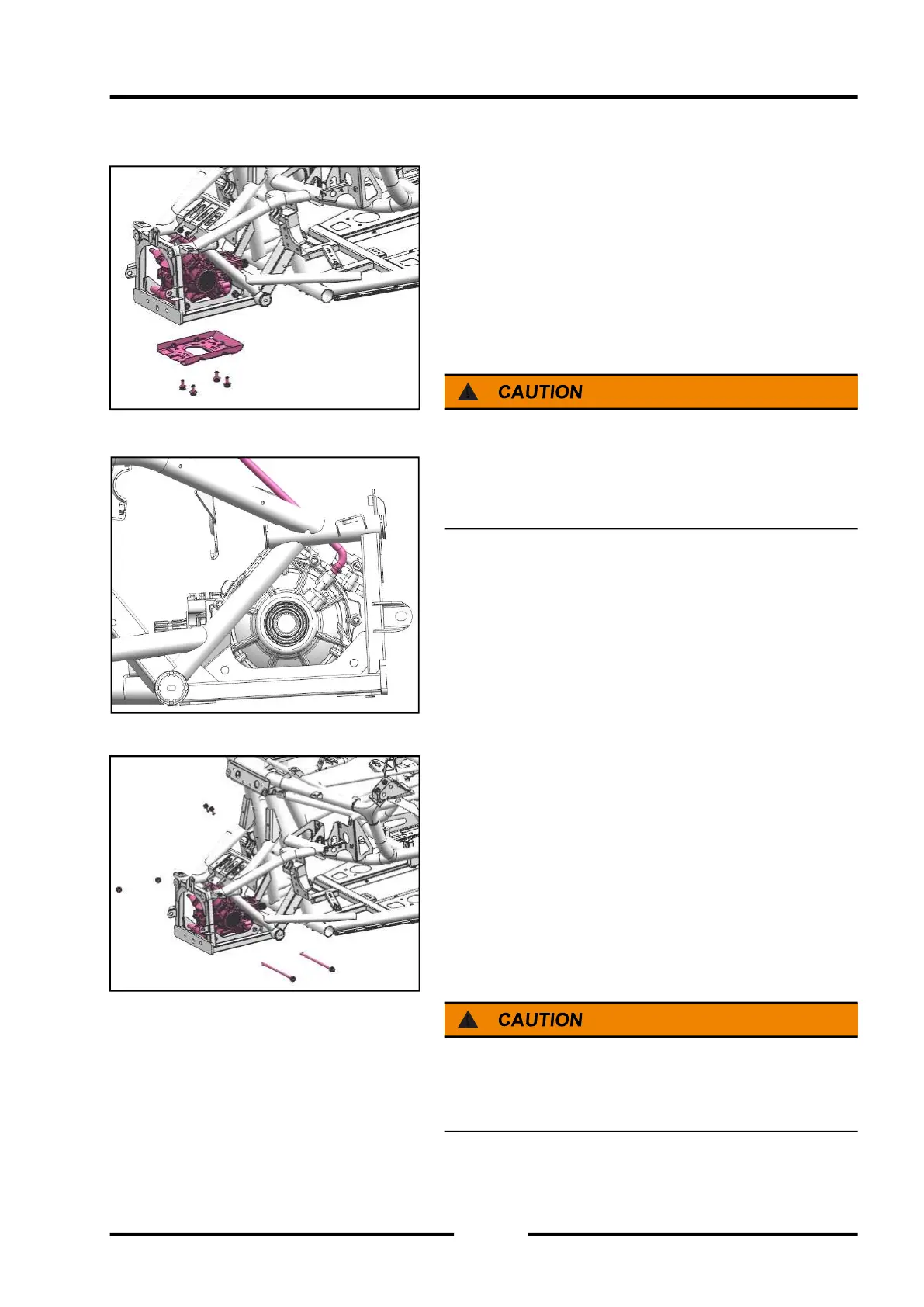

Front axle disassembly

◆ Remove the front drive shaft and the front drive shaft

(see the chapter on transmission system for details).

◆ Unplug the cable input plug on the front axle.

◆ Use suitable tools to remove the hoop, and remove

the front axle vent pipe;

◆ Remove the mounting bolts of the front axle lower

guard plate C (hexagon ﬂ ange bolts M10×1.25×20),

and remove the front axle lower guard plate C.

◆ Before removing the front axle assembly, please

make sure that the wiring harnesses on the front

axle assembly are completely disconnected from the

frame or main cables

◆ Remove the mounting bolts (hexagon flange bolts

M10×1.25×215) and nuts (type 2 non-metallic insert

hexagon ﬂ ange locking nuts M10×1.25) at the lower

part of the front axle, and take out the front axle

lower liner A

When installing the mounting bolts (hexagonal flange

bolts M8×20) on the upper part of the front axle, apply a

proper amount of thread glue to the threads.

Before removing the front axle assembly, please

make sure that the wiring harnesses on the front axle

assembly are completely disconnected from the frame

or main cables
