Segway VILLIAN SSV Series User Manual

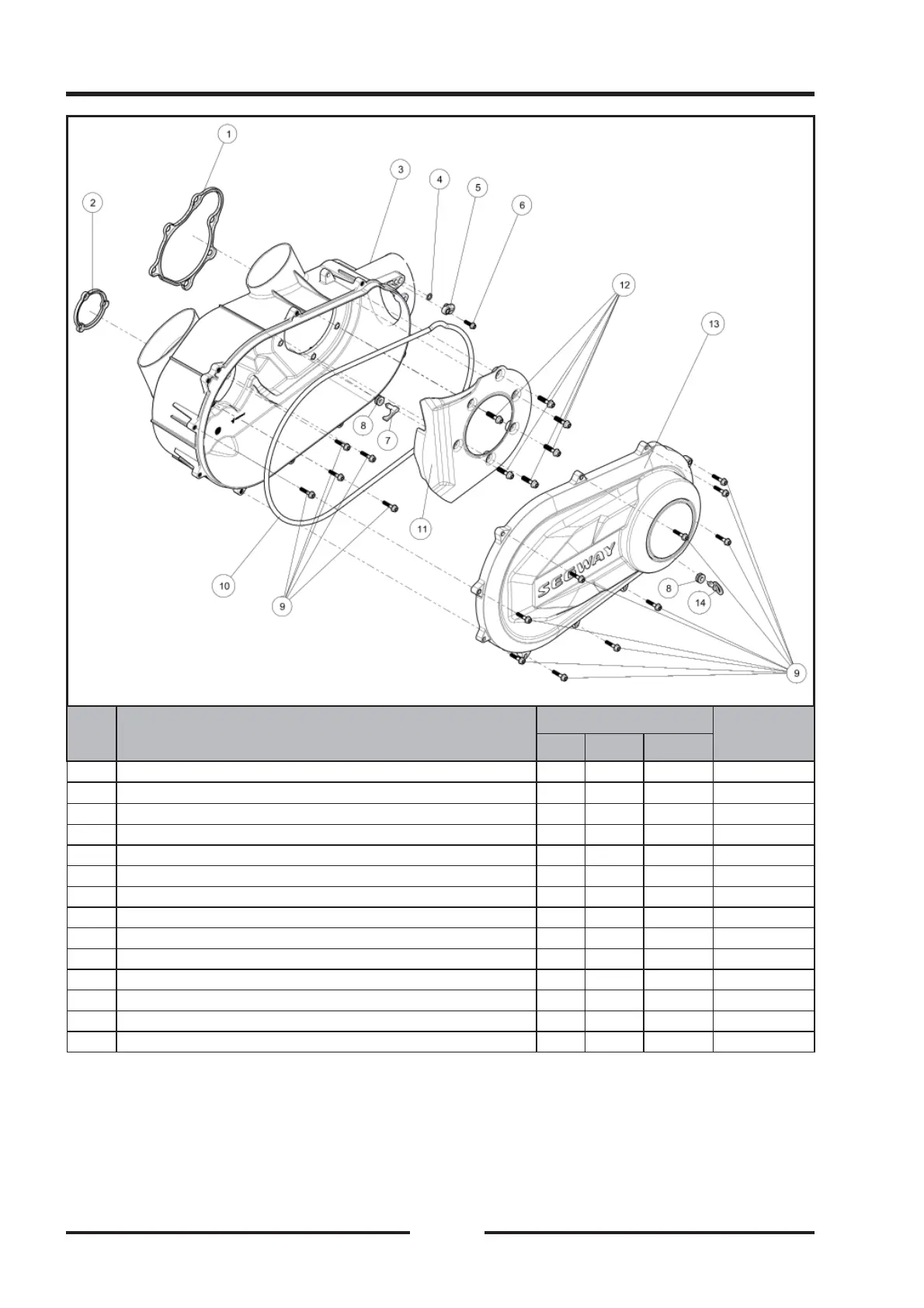

CVT SYSTEM
3-6-4
No. Fastener
Torque
Remarks
N·m kgf·m ft·lb
1 cvt inner cover seal
Ⅰ
2 cvt inner cover seal
Ⅱ
3 cvt inner cover
4
o-ring 8×2
5
CVT temperature sensor plug assembly
6
Bolt M6×20 9.8 1.0 87 in•lb
7
Plug
8
cvt cover plug seal
9
Bolt M6×28 6 0.6 53 in•lb
10
CVT cover seal
11
Baffl e
12
Bolt M8×30 26 2.7 20
13 CVT outer cover
14
cvt cover plug
G: Use grease suitable for oil seals and O-rings
L: Use fastening agent
.
O: Apply oil
.
SS: Use silicone sealant
.
S: Tighten in order
.
R: Spare parts
