SICK EtherCAT microScan3 User Manual

≥ 2°

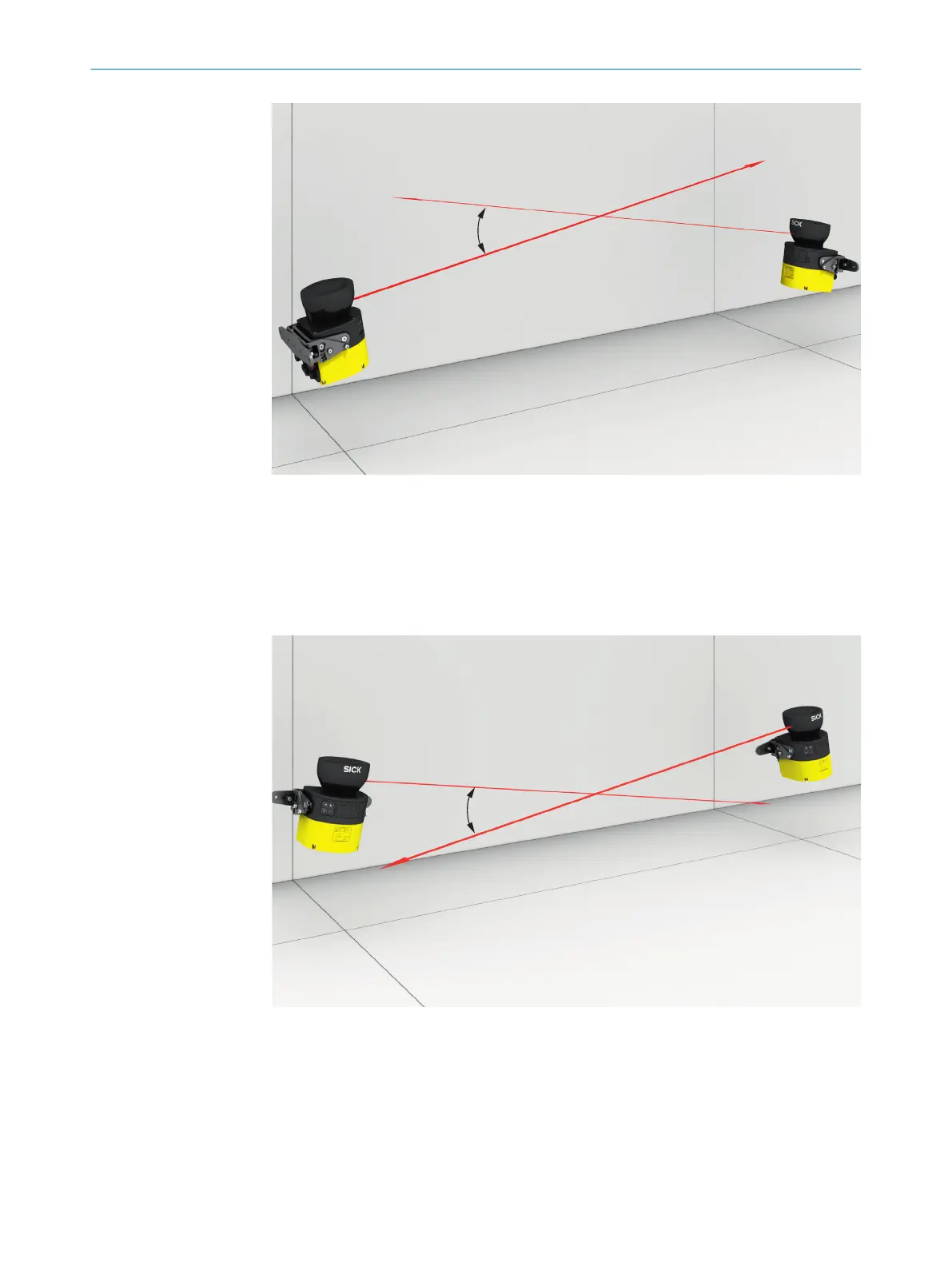

Figure 101: Mounting 2 safety laser scanners opposite one another
If you tilt neighboring safety laser scanners toward one another, the safety laser scan‐
ners can be tilted upward or downward.
In any event, ensure that the protective field is at the right height so that crawling
beneath and climbing over are prevented and so that the set resolution matches the
mounting height.
≥ 2°
Figure 102: Mounting 2 safety laser scanners next to one another
18 ANNE
X
200
O P E R A T I N G I N S T R U C T I O N S | microScan3 – EtherCAT® 8025220/1L9Q/2023-08-14 | SICK
Subject to change without notice

SICK EtherCAT microScan3 Specifications

General

Scanning angle	275°
Interfaces	EtherCAT
Protection class	IP65
Supply voltage	24 V DC
Resolution for protective field	30 mm
Operating voltage	24 V DC
Scanning range	5.5 m
Number of fields	128
Number of monitoring cases	128
Response time	30 ms
Operating temperature	0 °C to 50 °C
Field of application	Industrial safety
Light source	Infrared laser, 905 nm
Connection type	M12
Weight	1.2 kg
