SICK EtherCAT microScan3 User Manual

The following mounting method has the advantage that both safety laser scanners can
be mount
ed at a similar height. Nonetheless, there is enough space between the scan
planes.
≥ 100 mm

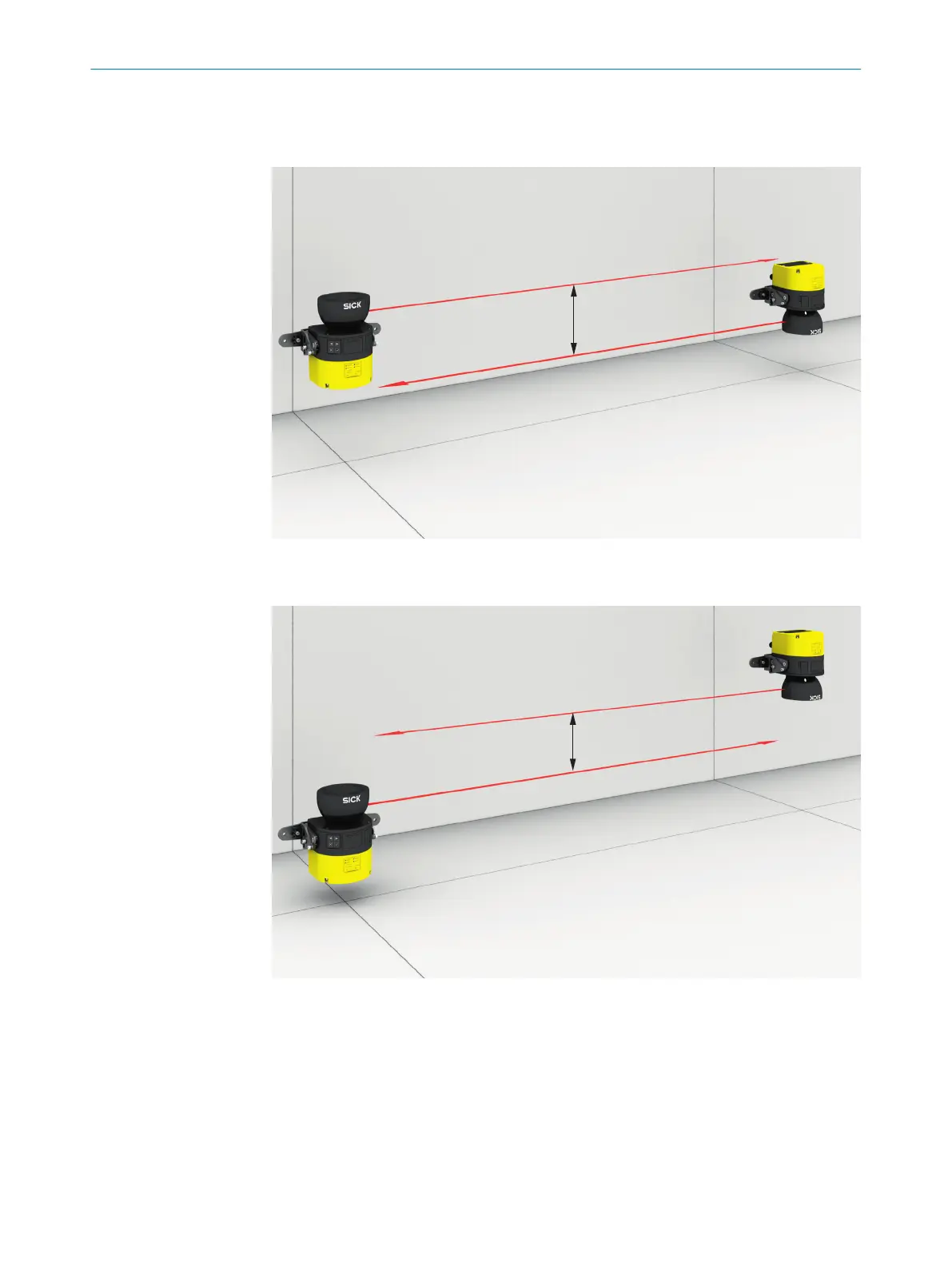

Figure 99: Mounting the upper safety laser scanner with the optics cover facing upward and
mounting the lower safety laser scanner with the optics cover facing downward
≥ 100 mm
Figure 100: Mounting the upper safety laser scanner with the optics cover facing downward and
mount
ing the lower safety laser scanner with the optics cover facing upward
Mount several safety laser scanners crosswise
If y
ou tilt opposite safety laser scanners with respect to one another, both safety laser
scanners must be tilted upward. (If mounted upside down, both safety laser scanners
must be tilted downward.)
In any event, ensure that the protective field is at the right height so that crawling
beneath and climbing over are prevented and so that the set resolution matches the
mounting height.
ANNEX 18
8025220/1L9Q/2023-08-14 | SICK O P E R A T I N G I N S T R U C T I O N S | microScan3 – EtherCAT®
199
Subject to change without notice

SICK EtherCAT microScan3 Specifications

General

Scanning angle	275°
Interfaces	EtherCAT
Protection class	IP65
Supply voltage	24 V DC
Resolution for protective field	30 mm
Operating voltage	24 V DC
Scanning range	5.5 m
Number of fields	128
Number of monitoring cases	128
Response time	30 ms
Operating temperature	0 °C to 50 °C
Field of application	Industrial safety
Light source	Infrared laser, 905 nm
Connection type	M12
Weight	1.2 kg
