ACUSON Cypress™ Operator’s Manual 5-21
2D Scanning
2D Scanning
2D sector scanning is the default mode for the Cypress system. To activate 2D
from a menu or from another scanning mode, press the
2D mode key. Active
system controls related to
2D operation are described on the following pages.

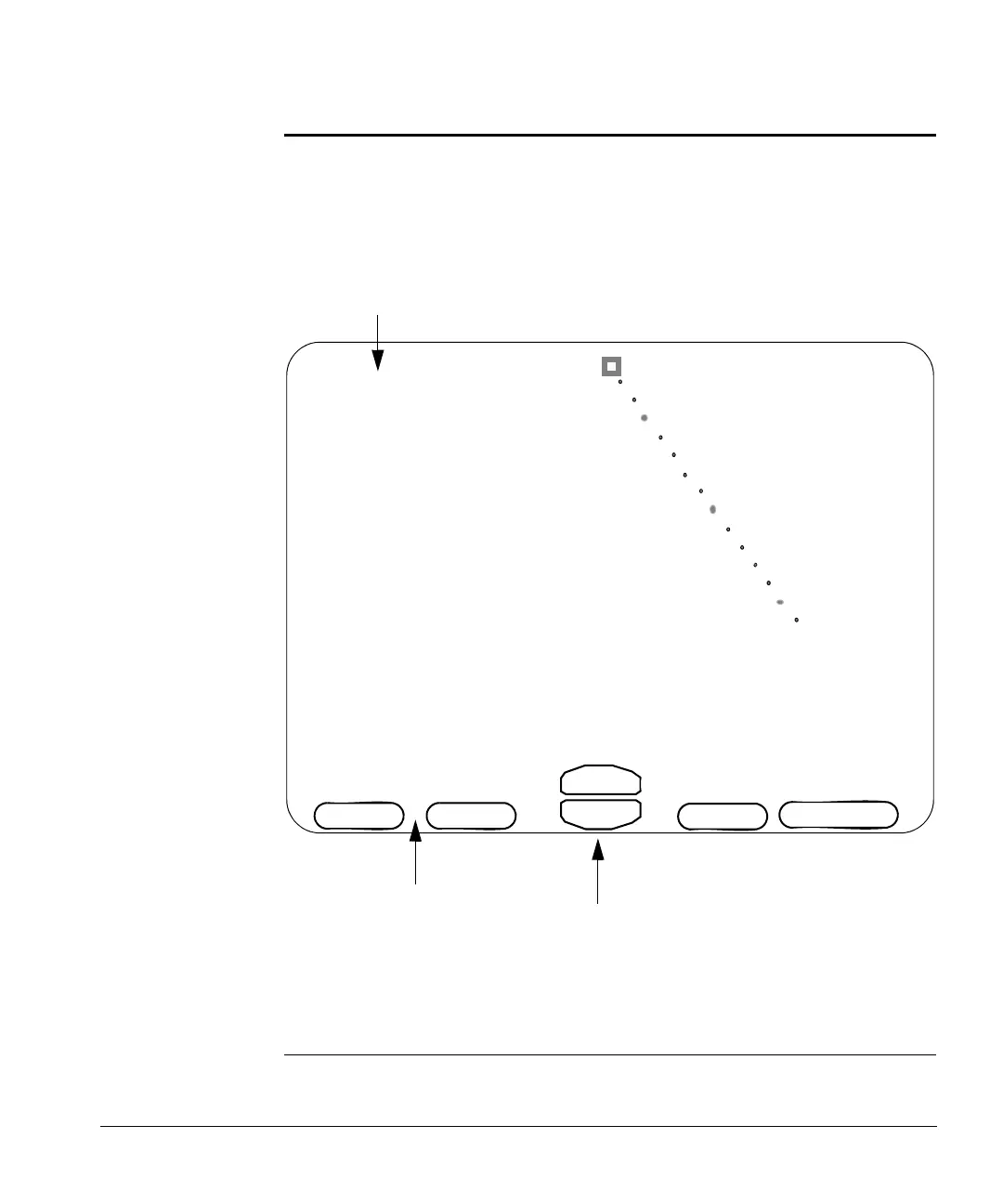

FIGURE 26. The 2D Scanning Screen
SYSTEM DATA
(See “Cypress System
Data” on page 5-9)
2D SOFT WINDOW
MENU OPTIONS
See Table 16, “2D
Scanning Soft Win-
dows Options,” on
page 5-23.
Depth
Frequency
2D Gain
Compress
3V2c Pwr M
MI 9.9 TIs 1.0
Comp 2 PProc 3
GN 5/ /
45fps 16.2cm
Harmonic
60 bpm
PRESS THE MAIN KNOB TO
SWITCH BETWEEN
COMPRESS AND 2D GAIN
Apex Invert
To Next Page
