ACUSON Cypress™ Operator’s Manual 5-13
Overview of the Scanning Process
Trigger Modes
Triggered acquisition modes may be used if the advanced triggering option has
been installed on the system. Triggered modes allow for
ECG-gated scanning
techniques. See Table 16 on page 5-23 for more information. The trigger mode
information is displayed beneath the System Data. The trigger controls are
assigned to the
APEX INVERT Soft Window. Press the corresponding knob to
display the triggering options and then turn the knob to adjust the settings. Note
that the Advanced Triggering option must be installed for this Soft Window to
have multiple functions.

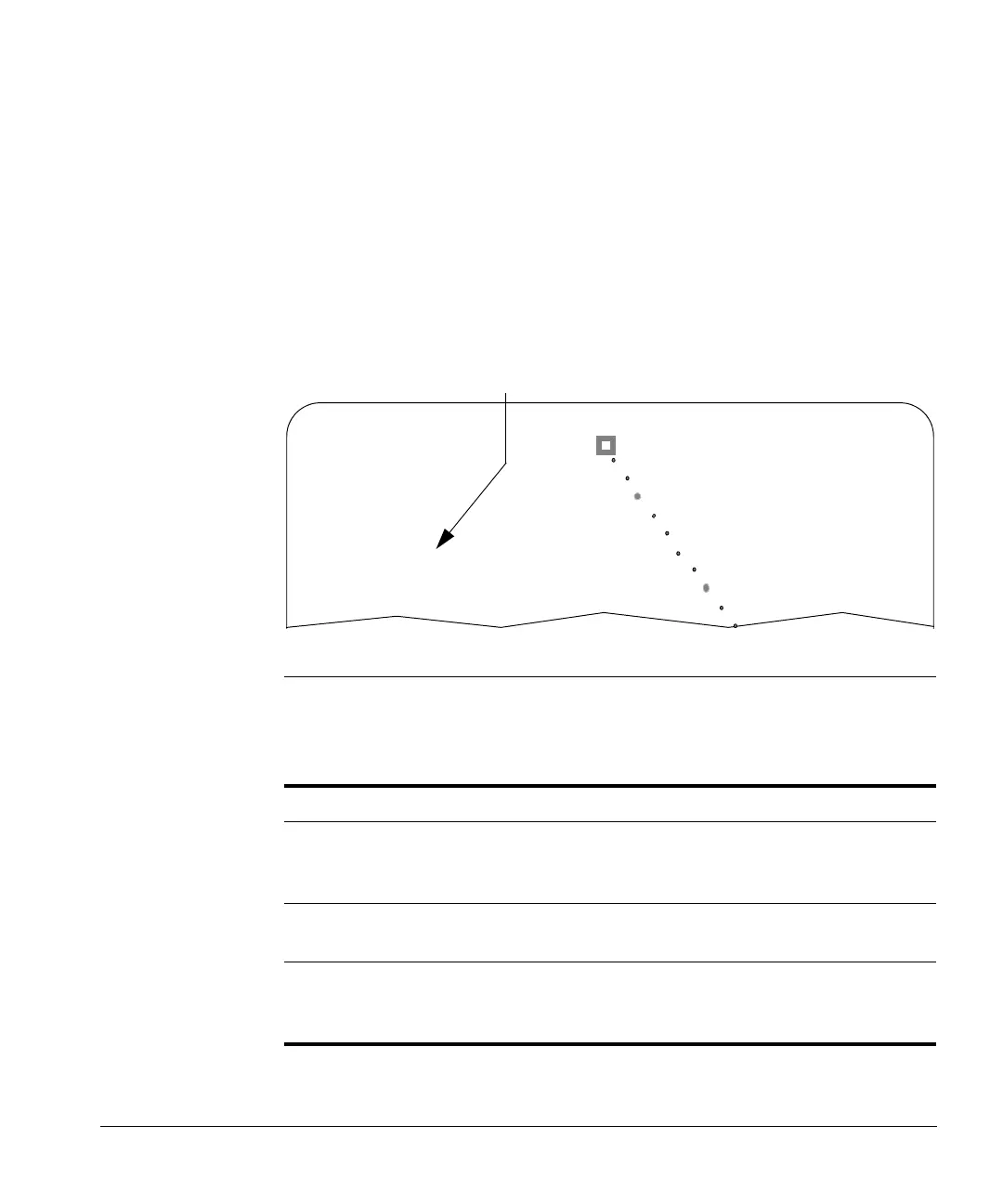

FIGURE 23. The Trigger Modes
Table 15 describes the trigger modes.
TABLE 15. Explanation of the Trigger Mode Fields
Setting Function/Description
# Beat(s) Beat Shows the number of beats selected for intermittent
imaging mode.
îš„ The range is from 1 through 16.
#.# ms Time Increases the trigger time in milliseconds.
îš„ The range is from 8.0 ms through 1992.0 ms.
# Frames Frames Shows the number of frames that are produced in
intermittent mode
îš„ The range is from 1 through 16 frames.
THE TRIGGER MODES ARE:
BEAT, TIME, AND FRAME RATE
Loop 1/5
04:05:23 PM
13 June 2005
3V2c Pwr M
MI 0.9 TIs 0.1
Comp 2 PProc 3
GN 5/ /
45fps 16.2cm
Harmonic
1 Beat 40.0ms
3 Frames
