Overview of the Scanning Process
Using Soft Windows
The Soft Windows are functions displayed across the bottom of the screen.
They vary depending on mode, state, and study type (Cardiac, Vascular, etc.).
Soft Windows are controlled by the Main knob and by the four knobs located in
the middle of the keyboard. (see Figure 20). The Soft Window knobs are turned
and/or pressed, depending on the assigned function. The functions are listed by
mode on page 2-8 and page 2-9. Some Soft Windows are assigned two or more
functions—these are indicated by a triangular icon in the upper right corner of
the Soft Window. Press the corresponding Soft Window knob to display the
additional function(s).
.

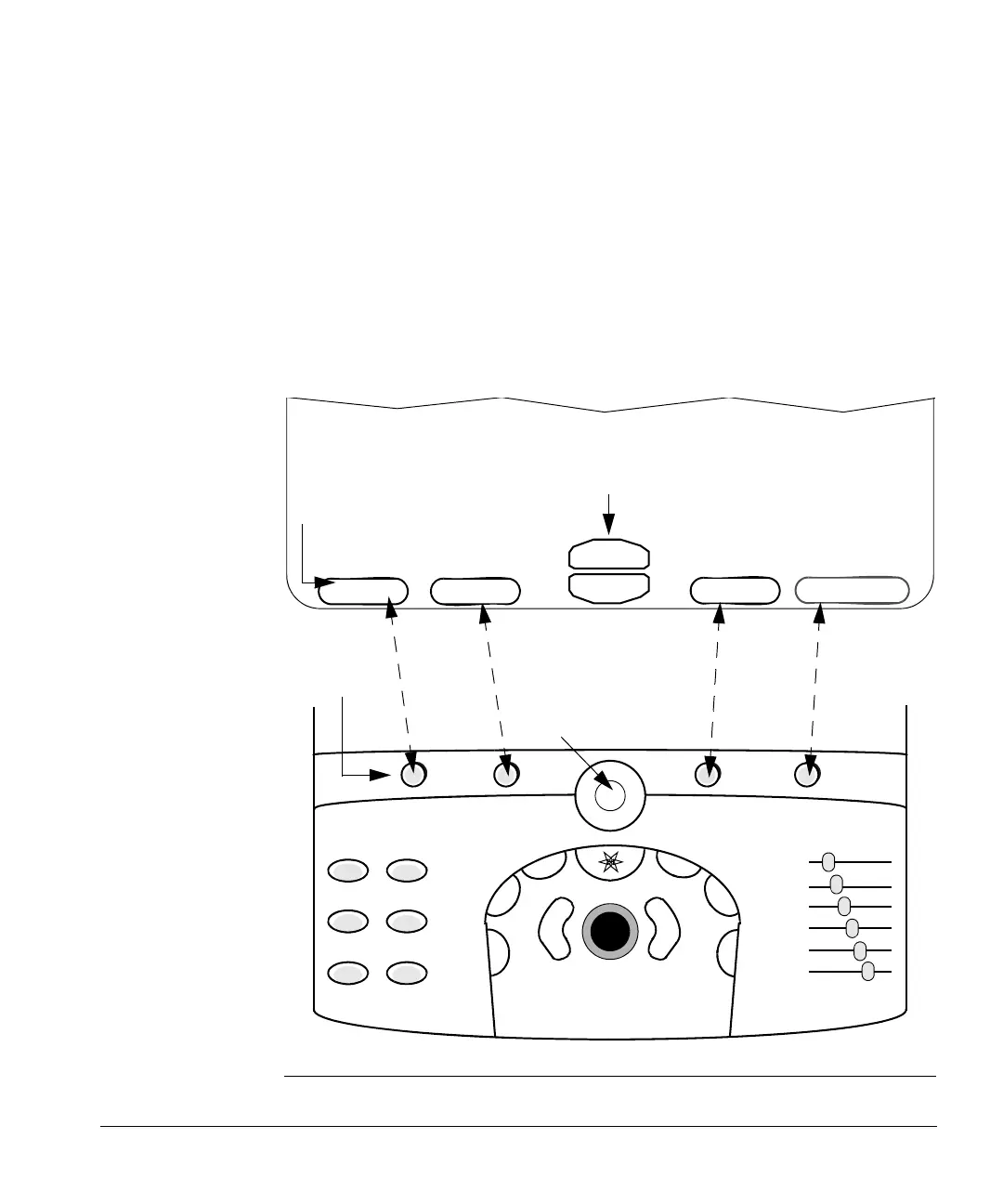

FIGURE 20. Soft Windows are Controlled by the Soft Window Knobs
PATIENT CALC
2D
M
C
CW
PW
qSAVE
TOOLS SAVE
SETUP VIEW
EACH SOFT WINDOW IS
CONTROLLED BY ITS
CORRESPONDING SOFT
WINDOW KNOB
Frequency
2D Gain
Compress
Apex Invert
SOFT
WINDOWS ON
CYPRESS SYSTEM
DISPLAY
SOFT WINDOW
KNOBS ON CYPRESS
SYSTEM KEYBOARD
THE MAIN KNOB CONTROLS THESE
TWO SOFT WINDOWS
MAIN KNOB
Depth2D Steer
