Connecting a SVHS VCR
Connecting a SVHS VCR
WARNING Do not use a peripheral device, such as a monitor, VCR or printer
within 1.5 meters of a patient unless the device receives power
from an isolation transformer that meets medical safety stan-
dards.
NOTE: To obtain the best video playback, use an SVHS recorder and SVHS
videotapes.
To connect a
SVHS VCR to the Cypress system, follow these steps:
1. Make sure both the Cypress system and the VCR are turned OFF.

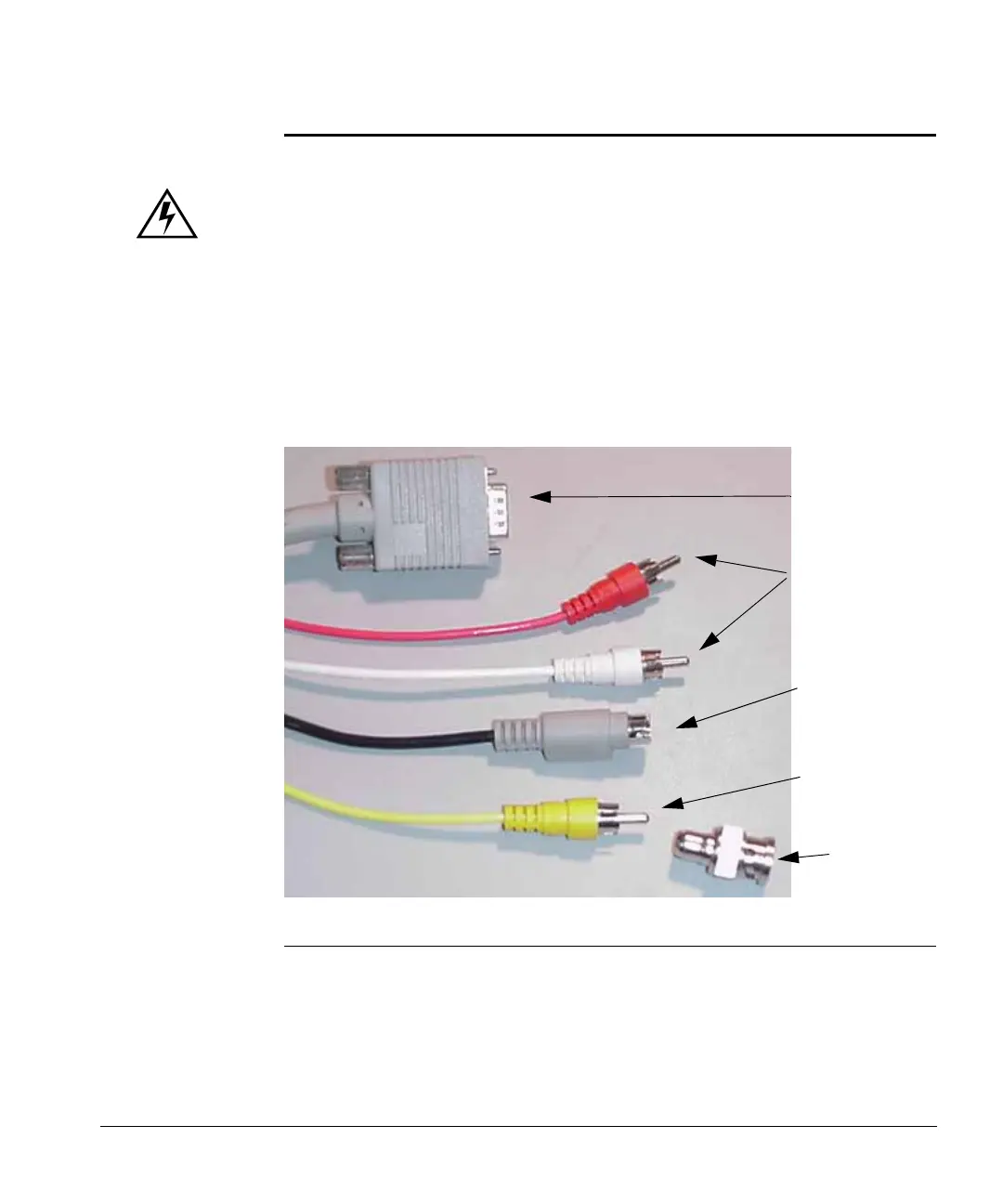

FIGURE 50. Cypress System SVHS VCR Connectors and Cables
2. Connect the gray SVHS cable to the SVIDEO INPUT connector on the back of
the
VCR (see Figure 51).
3. Connect the red and white cables to the two AUDIO IN connectors on the
back of the
VCR (see Figure 51).
15-PIN
CONNECTOR
RED AND
WHITE
AUDIO OUT
RCA PLUGS
GRAY SVHS
PLUG
YELLOW
CABLE NOT
USED FOR
SVHS
NOT USED
FOR SVHS
