Color Flow Scanning
To turn color flow mapping ON or OFF, press the COLOR (Color Flow) mode key.
Active system controls related to color flow mapping are described on the fol-
lowing pages.

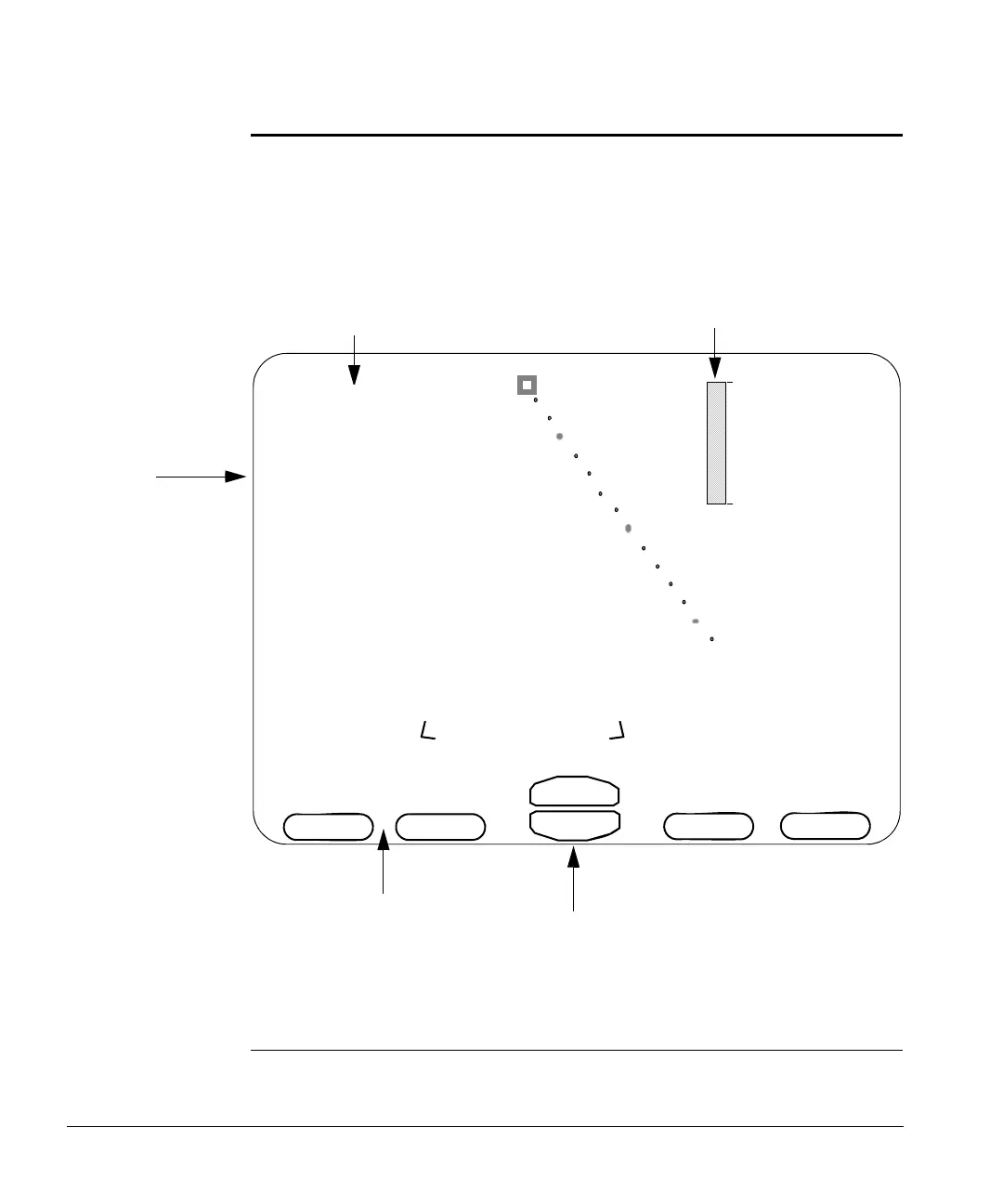

FIGURE 28. The Color Flow Scanning Screen
THE FRAME RATE IS
DISPLAYED HERE. USE
THE SOFT WINDOW
KNOBS TO ADJUST
THE SETTING (SEE
Table 18 on page 5-32).
SYSTEM DATA
(See “Cypress System
Data” on page 5-9)
COLOR SOFT WINDOW
MENU OPTIONS
See Table 18, “Color Flow
Scanning Soft Windows
Options,” on page 5-32.
Depth
Frame Rate
Color Gain
2D Gain
Scale
3V2c Pwr M
MI 0.9 TIs
0.1
Comp 2 PProc 3
GN 05/17/
FR3
45fps 16.2cm
Harmonic
52
cm/s
52
PRESS THE MAIN KNOB TO
SWITCH BETWEEN
2D GAIN AND COLOR GAIN
THE COLOR BAR. USE THE SCALE SOFT WINDOW
KNOB TO CHANGE THE SCALE.
