Siemens ACUSON Cypress

ACUSON Cypress™ Operator’s Manual A-7
Connecting a SVHS VCR
Connecting a VCR and Video Printer
WARNING Do not use a peripheral device, such as a monitor, VCR or printer
within 1.5 meters of a patient unless the device receives power
from an isolation transformer that meets medical safety stan-
dards.
NOTE: To obtain the best video playback, use an SVHS recorder and SVHS
videotapes.
To connect a
VCR and Video printer to the Cypress system, follow these steps:
1. Make sure the Cypress system, VCR, and printer are all turned OFF.
2. Attach the RCA-to-BNC adapter to the yellow Video RCA plug on the Video
Distribution cable as shown in Figure 48 on page A-3.
3. Connect the RCA-to-BNC adapter end of the cable to the VIDEO IN connector
on the back of the
VCR (see Figure 53 on page A-8).
4. Connect the red and white cables to the two AUDIO IN connectors on the
back of the
VCR (see Figure 53).
5. Connect the gray SVHS cable to the SVIDEO input connector on the back of
the
VCR (see Figure 53).
6. Connect the cable to the 15-pin connector on the Cypress system (see Fig-
ure 53).
7. Connect the cable shown in Figure 52. One side connects to the VIDEO OUT
connector on the
VCR. The other side connects to the VIDEO IN connector on
the printer (see Figure 53).

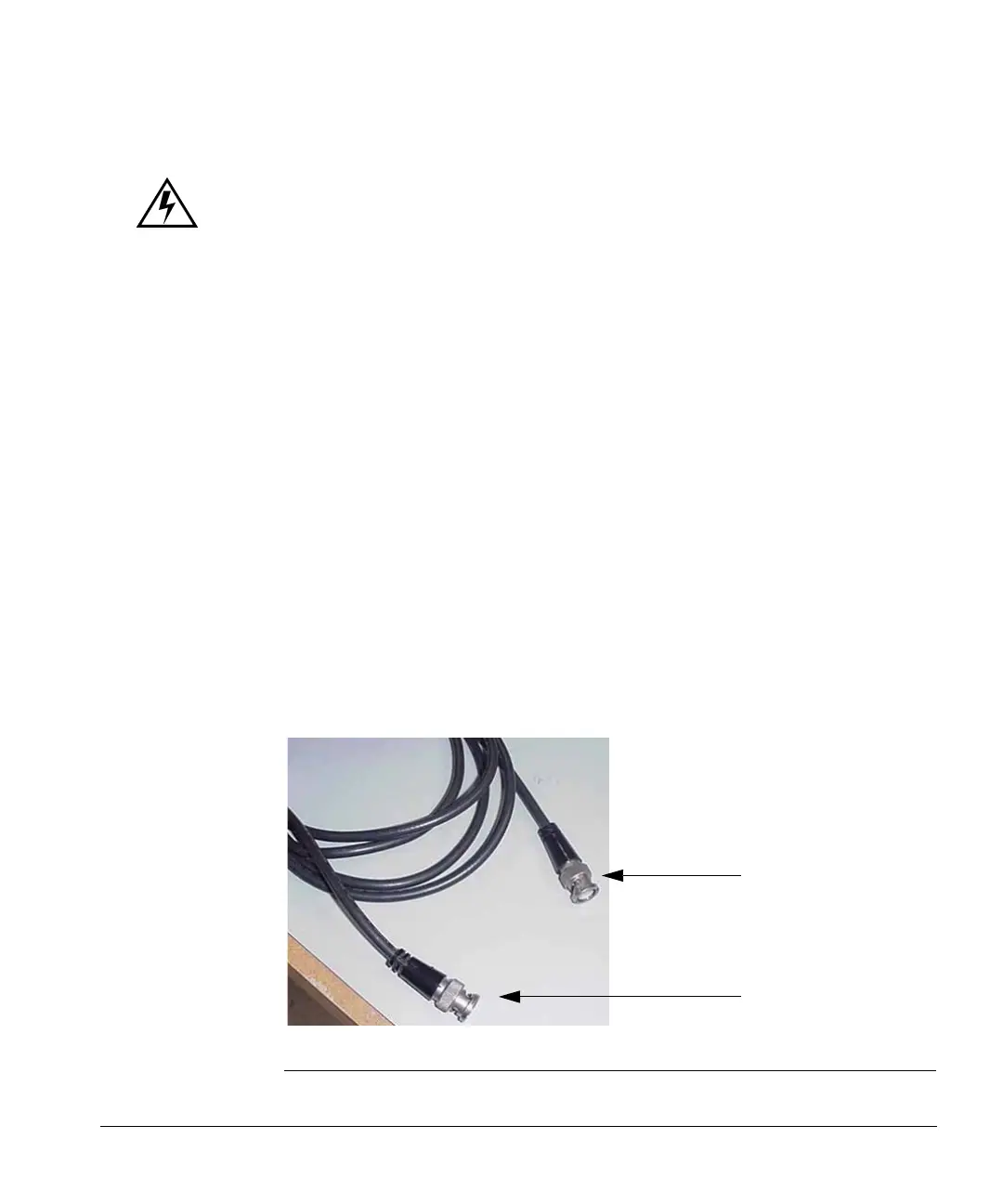

FIGURE 52. Cable Connection from VCR to Printer
CONNECT TO
VIDEO IN
CONNECTOR ON
BACK OF PRINTER
CONNECT TO VIDEO
OUT CONNECTOR
ON BACK OF VCR
