Scanning
5-50 ACUSON Cypress™ Operator’s Manual
M-Mode Scanning
To activate M-Mode imaging, press the M mode key. Active system controls
related to M-Mode operation are described on the following pages.

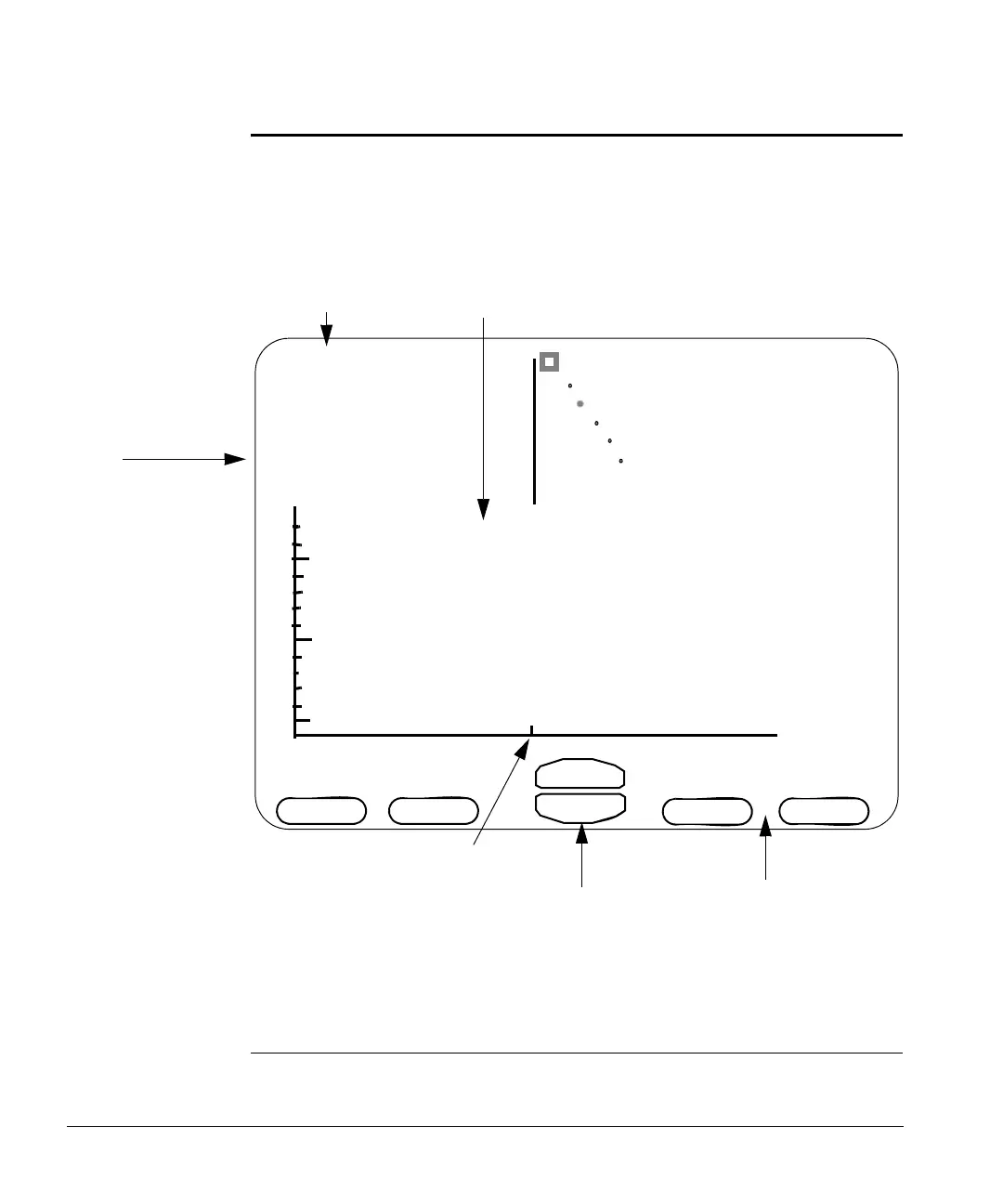

FIGURE 34. The M-Mode Scanning Screen
THE FREQUENCY
SOFT WINDOW
KNOB TURNS
HARMONIC ON
M-MODE TRACE OR 2D
IMAGE TIME-MOTION
DISPLAY
M-MODE SOFT WINDOW
MENU OPTIONS
See Table 24, “M-Mode Scan-
ning Soft Windows Options,” on
page 5-52.
SYSTEM DATA
(See “Cypress System
Data” on page 5-9)
Frequency
Gain
Compress
Sweep
3V2c Pwr M
MI 0.9 TIs 0.1
Comp 2 PProc 3
GN 05/ /
15.8cm
Harmonic
PRESS THE MAIN
KNOB TO SWITCH
BETWEEN
COMPRESS AND
2D GAIN
THIS MARKER REPRESENTS
TIME. THIS SCREEN SHOWS A 2-
SECOND SWEEP (I.E., 1 SECOND
ON EACH SIDE OF THE TIME
MARKER). USE THE SWEEP
SPEED BUTTON TO CHANGE
THE SPEED.
