ACUSON Cypress™ Operator’s Manual 5-9
Overview of the Scanning Process
Cypress System Data
The upper left corner of the screen shows the System Data. The type of data
displayed varies depending on the scanning mode, transducer type, and which
options are set.

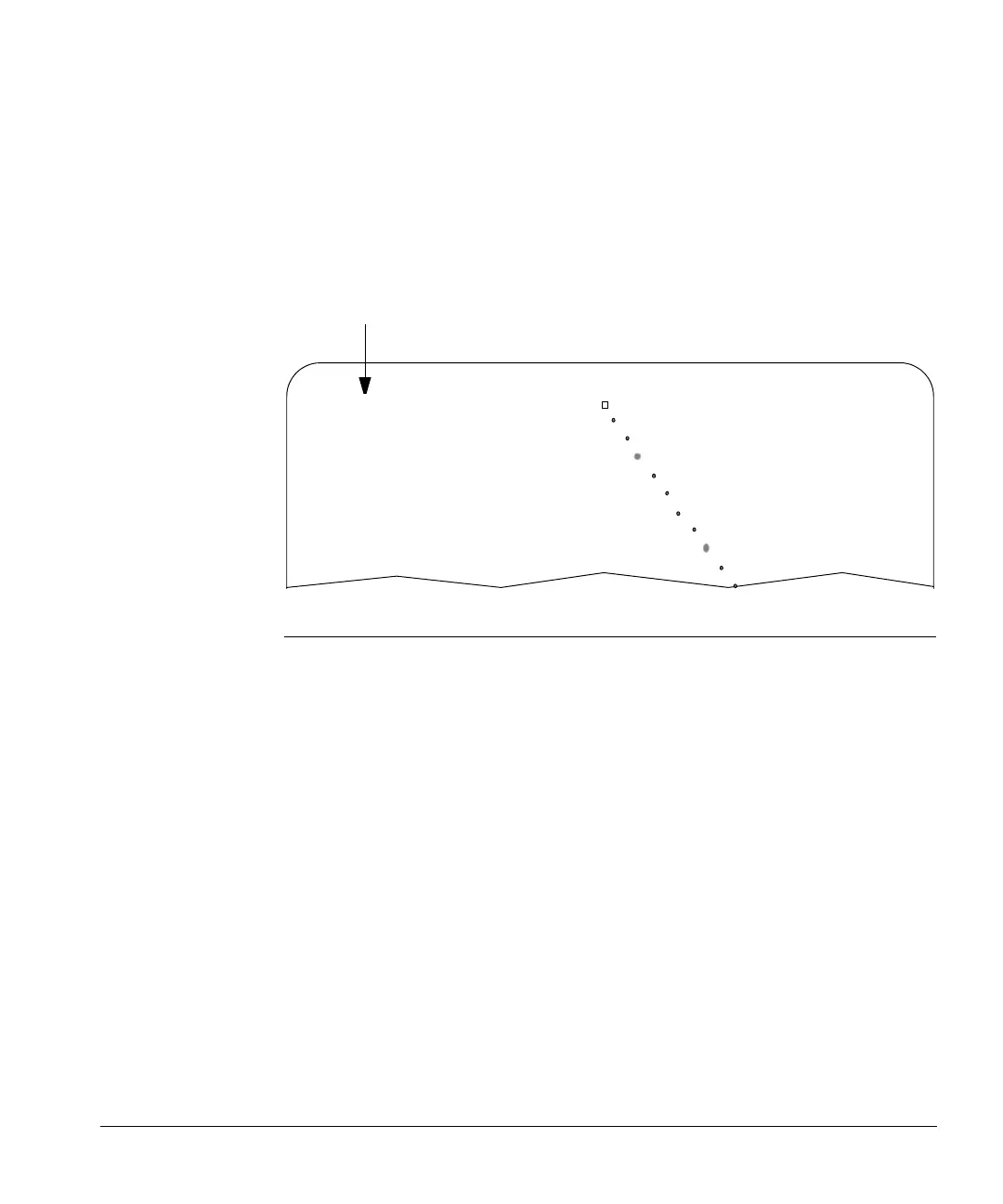

FIGURE 22. The System Data
Note that the system data changes as you change controls and work with the
system. Always be aware of this information. It will let you know, for example,
when you have reached the upper limits of ranges, etc.
Table 14 on page 5-10 describes each of the System Data fields. Not all fields
appear all the time. When a field has a set range of values that range is noted.
See the individual descriptions of scanning modes in this chapter for specific
information on changing settings. Most of the fields are controlled by the Soft
Windows and their options. When a field includes a variable number or letter, it
is shown in the Setting column of the Table as the pound sign (#).
There is another set of information about the “trigger modes.” This information is
displayed beneath the system data. See “Trigger Modes” on page 5-13 for
details about the trigger modes.
SEE Table 14 FOR AN EXPLANATION OF
THE SYSTEM DATA
Loop 1/5
03:55:40 PM
13 June 2005
3V2c Pwr M
MI 0.9 TIs 0.1
Comp 2 PProc 3
GN 5/ /
45fps 16.2cm
Angle 60°
Invert
Harmonic
To Next Page
