ACUSON Cypress™ Operator’s Manual A-3
Connecting a Video Printer
Connecting a Video Printer
WARNING Do not use a peripheral device, such as a monitor, VCR or printer
within 1.5 meters of a patient unless the device receives power
from an isolation transformer that meets medical safety stan-
dards.
To connect a
video printer to the Cypress system, follow these steps:
1. Make sure both the Cypress system and the printer are turned OFF.
2. Attach the RCA-to-BNC adapter to the yellow Video RCA plug on the Video
Distribution cable (see Figure 48).

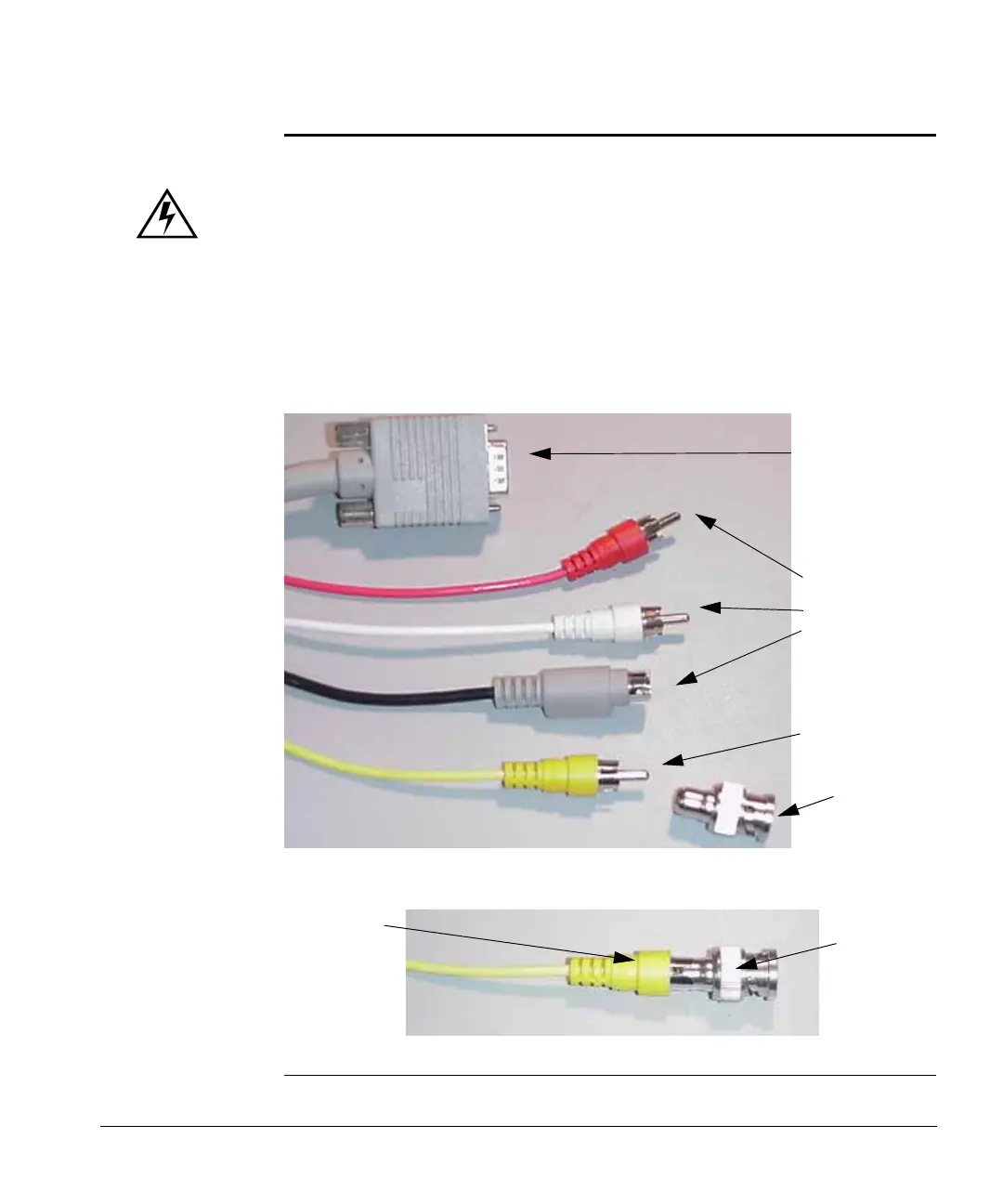

FIGURE 48. Video Printer Connectors and Cables
15-PIN
CONNECTOR
TO CYPRESS
NOT USED
FOR VIDEO
PRINTER
YELLOW
VIDEO RCA
PLUG
RCA-TO-
BNC
ADAPTER
YELLOW
VIDEO
PLUG ON
VIDEO DIS-
TRIBUTION
CABLE
RCA-TO-
BNC
ADAPTER
INSERT RCA-TO-BNC ADAPTER ON VIDEO OUT END OF CABLE
