ACUSON Cypress™ Operator’s Manual 5-41
Continuous Wave Doppler (CW) Scanning
CW Tools
Pressing the TOOLS function key in CW scanning mode opens a series of con-
trol buttons. These buttons provide controls for secondary image functions. See
Table 21 on page 5-42 for a description of the
CW mode Tools options.

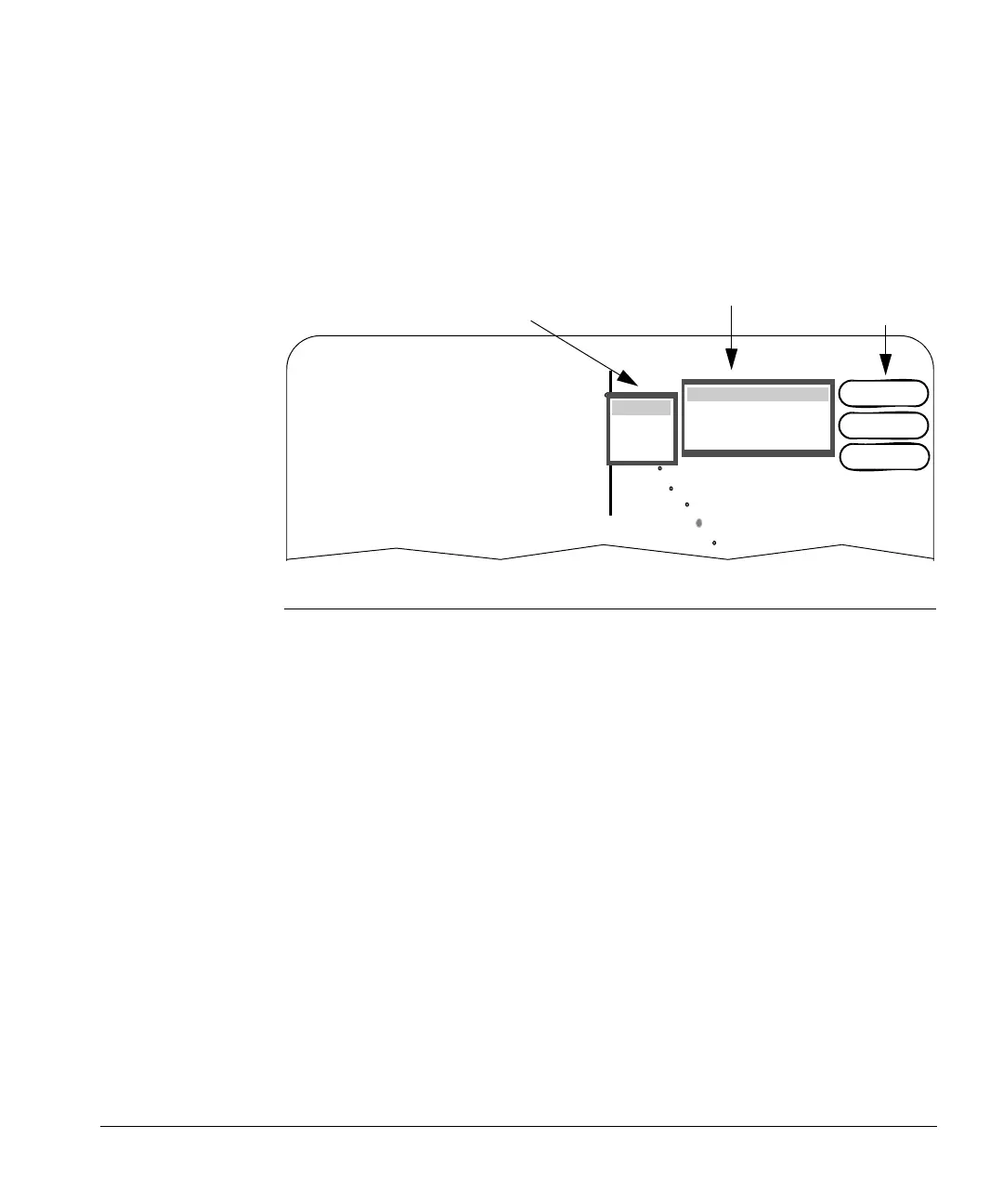

FIGURE 31. CW Tools
To use the Tools functions, follow these steps:
1. Start a CW scan by pressing the CW mode key.
2. Press the TOOLS Function key to display the menu of 2D tools.
3. Select one of the Tools buttons:
Click [IMAGE] to open a menu of adjustable controls. This menu differs
depending on whether you are in Active mode or Freeze mode. Use the
Trackball to highlight the desired option and press <
ENTER>. If there is a
sub-menu for the selected option, another window opens. Highlight the
desired option and press <
ENTER> to activate the change. Press TOOLS
to exit the menu. To exit the menu without activating the change, highlight
Cancel and press <
ENTER>.
Click [TEXT] to add text to an image in either Freeze or Active mode.
Click [TIMER] to start the time counter.
3V2c Pwr M
MI 0.9 TIs 1.0
Comp 2
GN 12/ /13
HPF 700Hz
Harmonic
60 bpm
IMAGE FUNCTIONS IN
ACTIVE MODE WINDOW
Text
CW MODE
TOOLS
BUTTONS
Low
Medium
High
Cancel
SUB-MENU FOR
SPECTRAL COMPRESS
Spectral Compress
Transmit Power
Colorize
Cancel
Timer
[IMAGE] BUTTON
CONTROLS:
In Active Mode:
Spectral Compress
Transmit Power
Colorize
In Freeze Mode:
None
