ACUSON Cypress™ Operator’s Manual 5-27
2D Scanning
2D Tools
Pressing the TOOLS function key in 2D scanning mode opens a series of control
buttons. These buttons provide controls for secondary image functions. See
Table 17 on page 5-28 for a description of the
2D Tools functions.

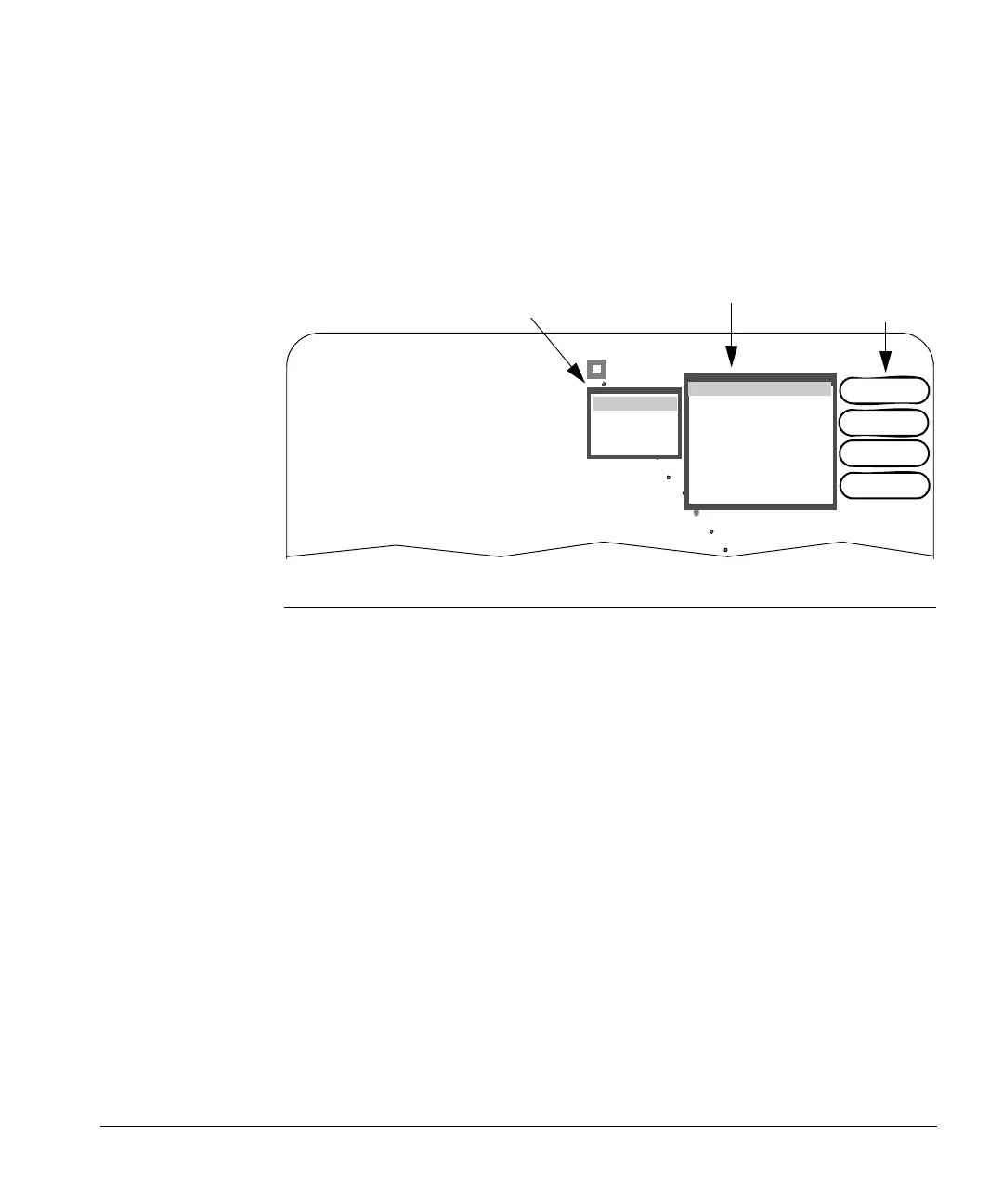

FIGURE 27. 2D Tools
To use the Tools functions, follow these steps:
1. Start a 2D scan by pressing the 2D mode key.
2. Press the TOOLS Function key to display the menu of 2D tools.
3. Select one of the Tools buttons:
Click [IMAGE] to open a menu of adjustable controls. This menu differs
depending on whether you are in Active mode or Freeze mode. Use the
Trackball to highlight the desired option and press <
ENTER>. If there is a
sub-menu for the selected option, another window opens. Highlight the
desired option and press <
ENTER> to activate the change. Press TOOLS
to exit the menu. To exit the menu without activating the change, highlight
Cancel and press <
ENTER>.
Click [TEXT] to add text to an image in either Freeze or Active mode.
Click [ROI] to capture a selected area of the image using the ROI (Region
of Interest) box.
Click [TIMER] to start the time counter.
IMAGE FUNCTIONS IN
ACTIVE MODE WINDOW
Transmit Power
Lateral Gain
Post Processing
Colorize
Struct
Persistence
Left-Right Invert
Angle
Cancel
3V2c Pwr M
MI 1.0 TIs 0.1
Comp 2 PProc 3
GN 5/ /
45fps 16.2cm
Harmonic
Text
2D MODE
TOOLS
BUTTONS
SUB-MENU FOR
TRANSMIT POWER
Low
Med
High
Cancel
ROI
Timer
[IMAGE] BUTTON
CONTROLS:
In Active Mode:
Transmit Power
Lateral Gain
Post Processing
Colorize
Structure Persistence
Left-Right Invert
Angle
In Freeze Mode:
Colorize
