Connecting External Devices
A-6 ACUSON Cypress™ Operator’s Manual
4. Connect the 15-pin connector on the cable to the 15-pin connector on the
Cypress system (see Figure 51).
5. Connect the power cord on the VCR and plug it in.
6. Turn on the Cypress system, then the VCR.
7. On the Cypress system, press the SETUP function key to display the Setup
tab.
8. Use the Video Out Mode drop-down menu to select NTSC.
9. Press SETUP to return to 2D mode or press 2D to begin imaging.
10. Insert a video tape and press the RECORD button on the VCR to record
images.
NOTE: When images are recorded on videotape, the playback on the moni-
tor will look slightly different than the display on the Cypress system—parts
of the bottom and right sides of the screen will not be shown. Nothing is
wrong with your playback. All the imaging data are displayed.

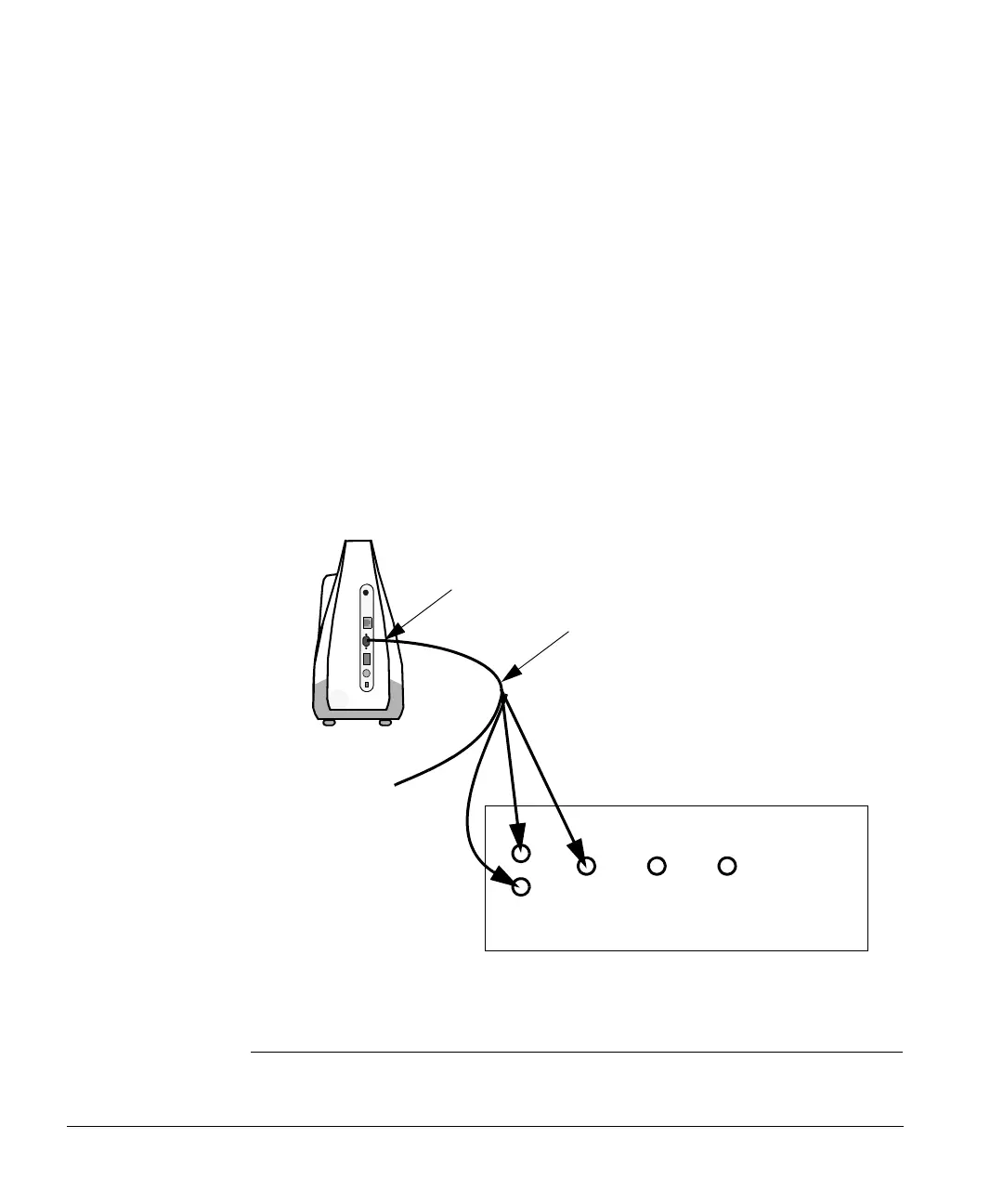

FIGURE 51. Connecting a VCR
15-PIN CONNECTOR ON CYPRESS
VIDEO
IN
SVIDEO
AUDIO
IN
VCR
VIDEO
DISTRIBUTION
CABLE
(YELLOW VIDEO
CABLE IS NOT
USED FOR SVHS
CONNECTIONS)
VIDEO
OUT
