The Patient Menu

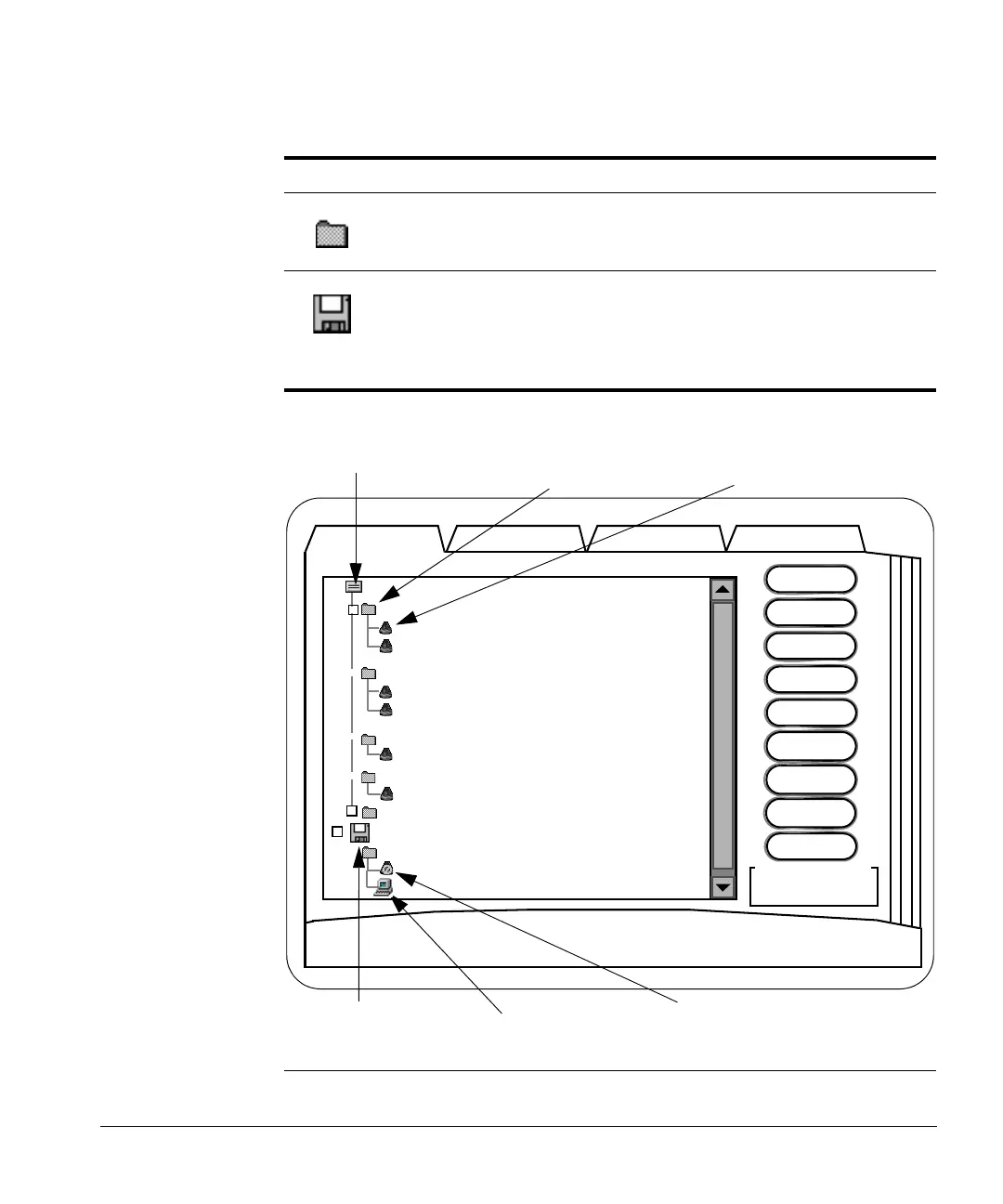

FIGURE 16. Patient Directory Icons
Patient Appears in front of patient names.
 The icon turns blue when a study for the
patient is activated.
MO Disk All patient files and studies stored on the cur-
rently inserted
MO Disk appear beneath the MO
Disk icon. When a disk is inserted in the
MO
drive the amount of free disk space is listed in
the directory.
TABLE 9. Patient Directory Icons
Icon Name Explanation
Study: 0
ShutdownReportsSetupPatient
Storage [MBytes]
Free: 3535
 Cypress
DOE, A
04/22/2000 09:27 None
04/22/2000 08:54 None

DOE, B
04/21/2000 14:59 3 Stage Exercise
04/21/2000 13:27 None

DOE, C
05/21/2000 13:18 Pharmacological
 DOE, J
06/21/2000 11:01 2 Stage Exercise
DOE, P
12/10/1999 10:40
01/24/2000 11:10
–
–
–
–
–
+
–
–
MO Disk: 63 Mbytes free
DOE, E
CYPRESS
SYSTEM
HARD DRIVE
PATIENT FILE—
TURNS BLUE WHEN
THE STUDY IS
ACTIVATED
STUDY IN DICOM FORMAT
MO DISK ICON
STUDY IN CYPRESS
FORMAT—TURNS BLUE
WHEN THE STUDY IS
ACTIVATED
STUDY IN MULTIMEDIA FORMAT
Activate
Edit
Remove
New
Study
Study
List
New
Patient
Send
Worklist
Print
