5.4 Main spindle control with analog setpoint interface 6SN1121–0BA1_–0AA_
5-114
 Siemens AG 2001 All rights reserved
SIMODRIVE 611 Planning Guide (PJU) – 05.01 Edition
5.4 Main spindle control with analog setpoint interface
6SN1121–0BA1_–0AA_
The control components are available for 1PH induction motors with optical
rotary encoders or inductive toothed–wheel encoders
(Order No.: 6SN1121–0BA11–0AA1).
The following interface X432 can be used either as spindle encoder input for
positioning, or as WSG interface (rotary position output to the NC).
Software
–
P
+
M
X2
663
AS2
AS1
674
673
672
61 A
51 A
41 A
31 A
21 A
11 A
289
M
92 A
M
91 A
IR
X1
E8
9
E9
E7
E6
E5
E4
E3
E2
E1
81
65
8
24
14
56
0.8 Nm
M3 / 0.8 Nm
Version label
1)
M3 / 0.8 Nm
Only for Order No.:
6SN1121–0BA11–0AA1

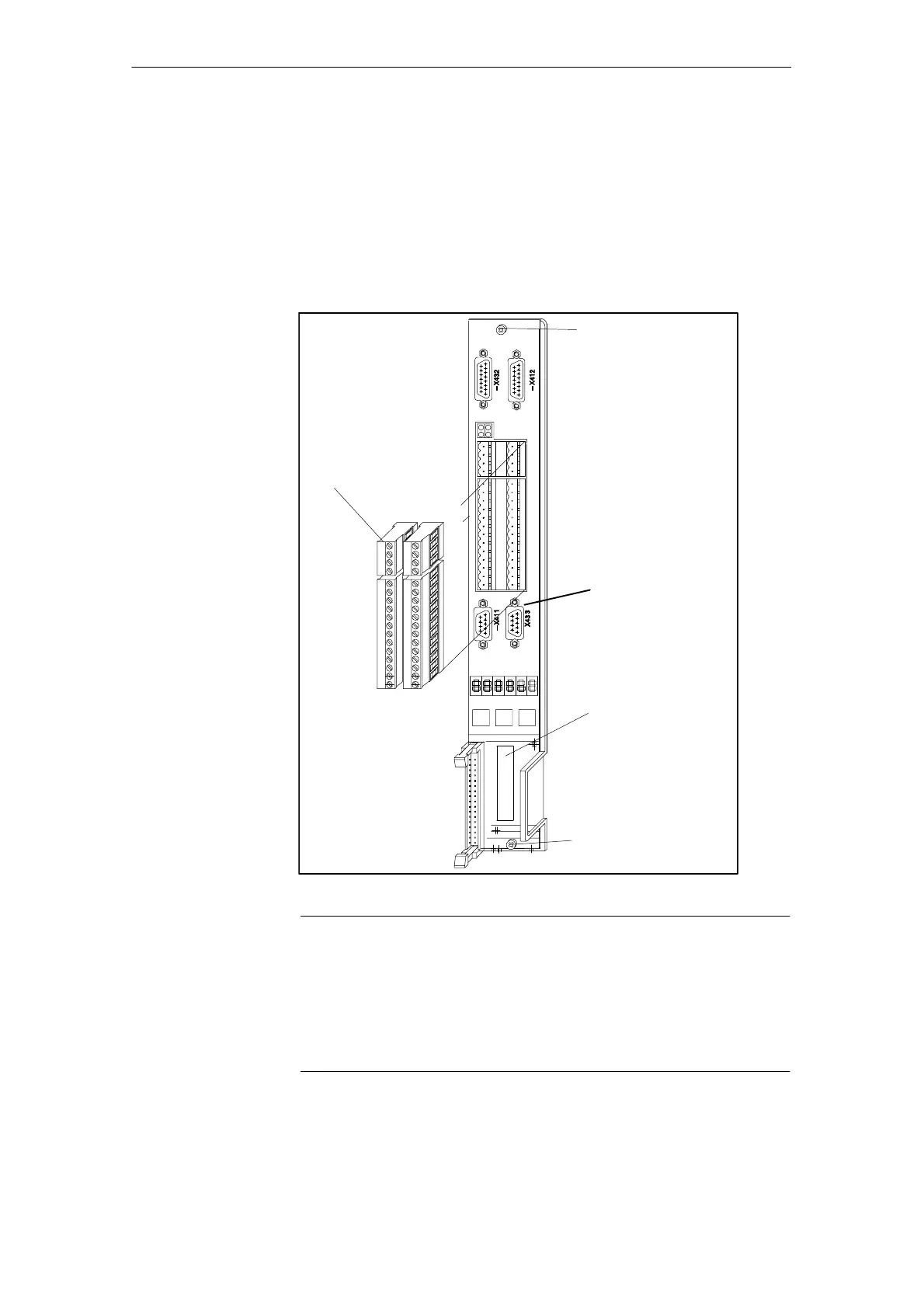

Fig. 5-5 Main spindle control with analog setpoint interface
Note
When using non–PELV circuits at terminals AS1, AS2, connector coding must
be used so that the connectors cannot be interchanged (refer to EN60204–1,
Section 6.4).
Order No. of the coding, refer to Catalog NC 60.
Only PELV circuits may be connected at connector X432 pin 15 or X433 pin 3
(FR–).

1) Interface X432 can either be used as spindle encoder input for positioning or as WSG interface
(rotor position output to the NC).
Main spindle
control with
analog setpoint
interface
5 Control Modules
