5
05.01
5.8 Control module SIMODRIVE 611 universal E
5-137
Siemens AG 2001 All rights reserved
SIMODRIVE 611 Planning Guide (PJU) 05.01 Edition
5.8.1 Control module with option module
Slot for
option module
PROFIBUSDP3
Module for
encoder evaluation
Memory module
S Firmware
S User data
Pulse interface
The following is valid for screws:
Tighten (for shield contact)
Max. torque = 0.8 Nm
SIMODRIVE 611 universal E control module
2axis for encoders with sin/cos 1Vpp
Equipment bus
Display and
operator control unit
S Interfaces
S Terminals
S Test sockets
Serial interface
(RS232)
Option module
PROFIBUSDP3
with PROFIBUSASIC
DPC31 with PLL
Encoder interface for
TTL encoders
The following applies for plug connections:
In order that the plug connections with the
same number of pins cannot be incorrectly
inserted, they must be appropriately coded
(refer under the index entry Coding the
mini connectors).
X302

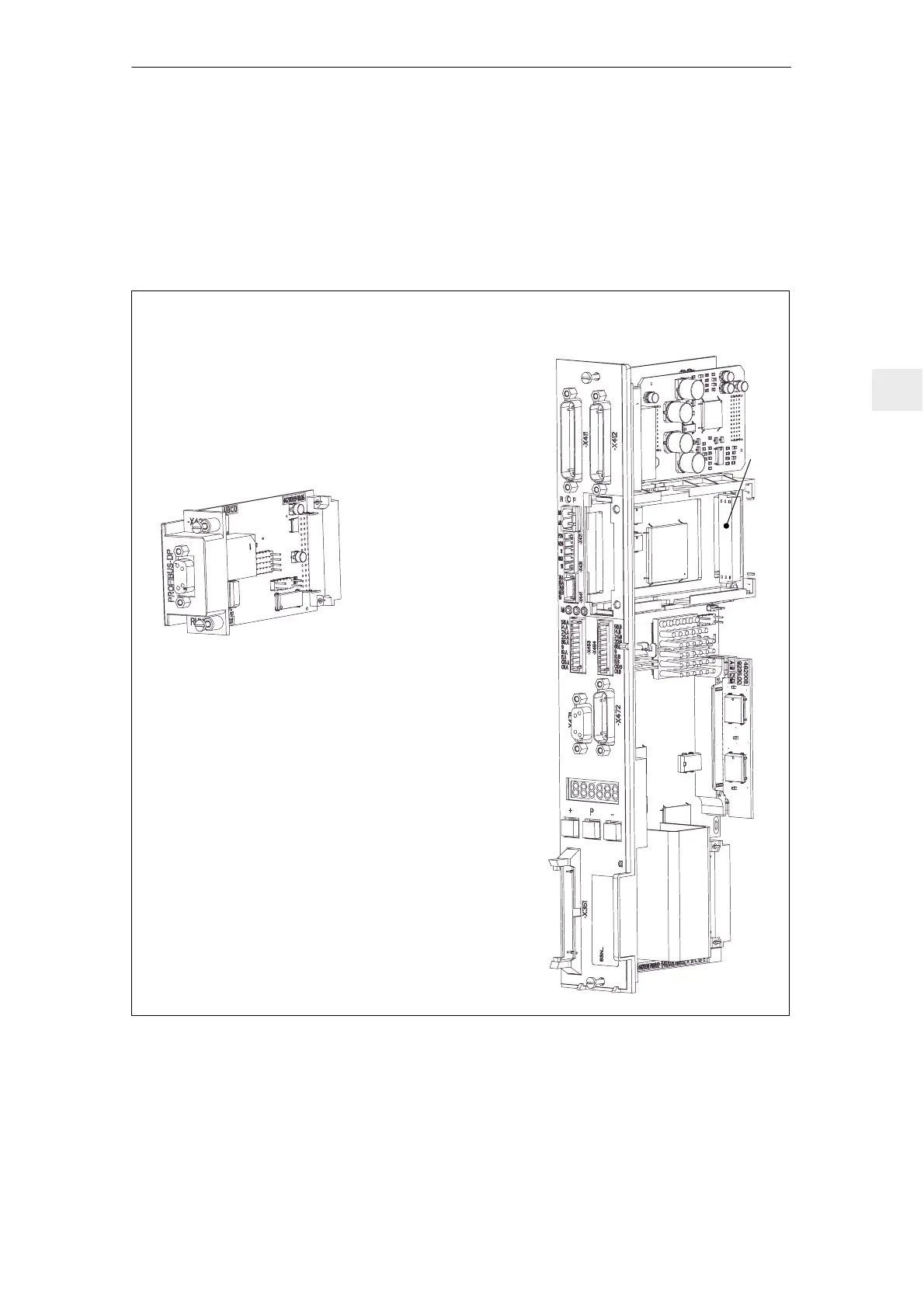

Fig. 5-12 SIMODRIVE 611 universal E control module with optional PROFIBUSDP3 module
Control module
with optional
PROFIBUSDP
module
5 Control Modules
