5
05.01
5.8 Control module SIMODRIVE 611 universal E
5-138
Siemens AG 2001 All rights reserved
SIMODRIVE 611 Planning Guide (PJU) 05.01 Edition
5.8.2 Description of the terminals and interfaces
The modulespecific terminals and interfaces are available for both drive A and
drive B together.

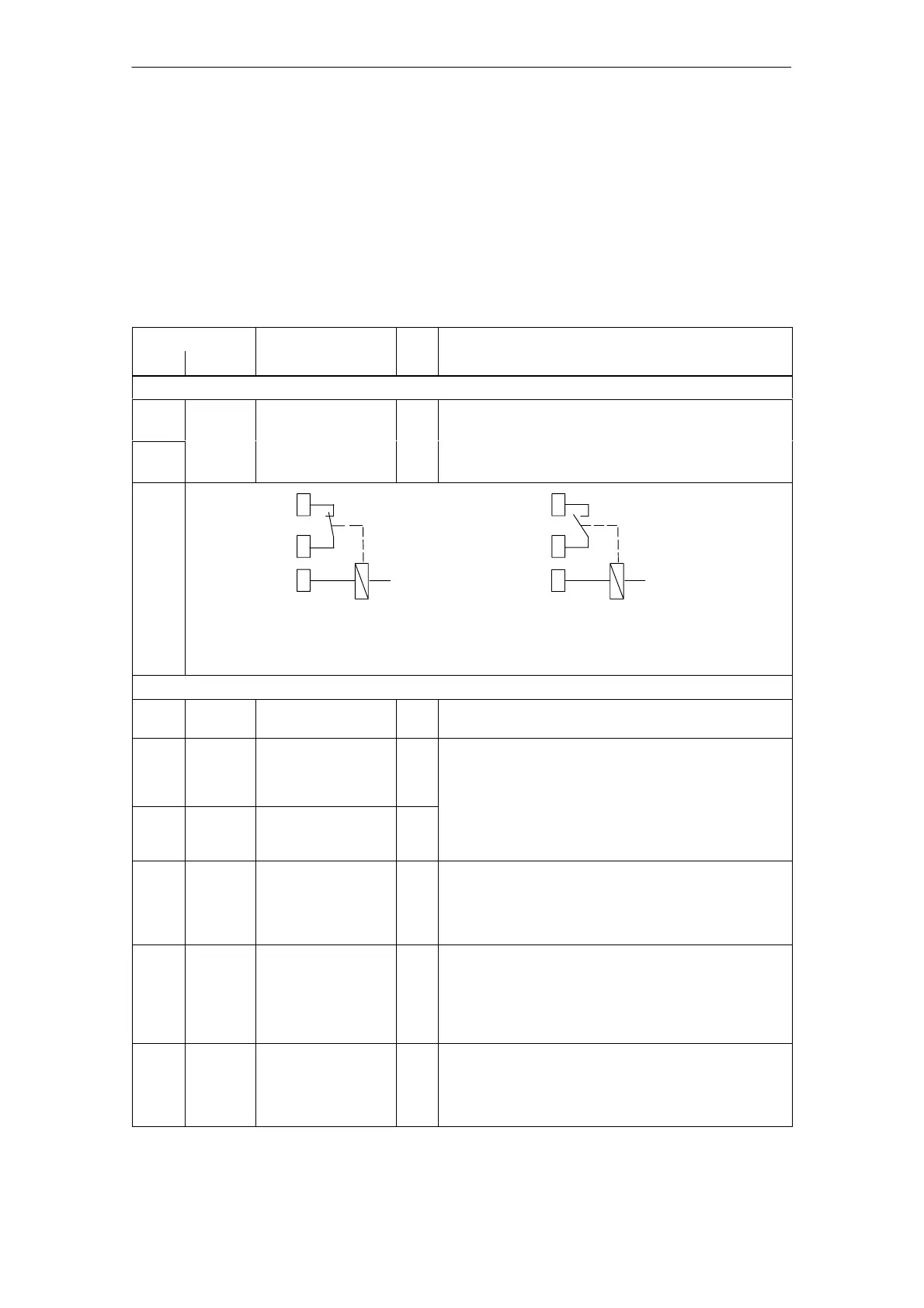

Table 5-19 Overview of the modulespecific terminals and interfaces
Terminal Function Type Technical data
No. Desig.
1)
Signal terminal, start inhibit (X421)
AS1
Signal contact
start inhibit
NC Connector type: 2pin plug connector
Max. conductor crosssection: 2.5 mm
2
AS2
X421
Checkback signal of
terminal 663
Contact: Floating NC contact
Contact load capability: at 250 V
AC
max. 1 A
at 30 V
DC
max. 2 A
Relay, safe
start inhibit
AS2
AS1
T.663
AS2
AS1
T.663
No pulse enable (terminal 663)
The gating pulses of the power
transistors are inhibited.
Pulse enable (terminal 663) available
The gating pulses of the power transistors
are enabled.
Relay, safe
start inhibit
Terminals for supply and pulse enable (X431)
X431
Connector type: 5pin plug connector
Max. conductor crosssection: 1.5 mm
2
P24 X431.1 External supply for
digital outputs
(+24 V)
V Voltage tolerance (including ripple): 10 V to 30 V
Max. total current: 2.4 A
Note:
S The external supply is required for the 4 digital outputs
M24 X431.2 Reference for external
supply
V
The external supply is required for the 4 digital outputs
(O0.A, O1.A and O0.B, O1.B).
S When dimensioning the external supply, the actual total
current of all digital outputs must be taken into account.
9 X431.3 Enable voltage
(+24 V)
V Reference: T.19
Max. current (for the complete group): 500 mA
Note:
The enable voltage (terminal 9) can be used to supply the
enable signals (e.g. pulse enable) as 24 V auxiliary voltage.
663 X431.4 Pulse enable
(+24 V)
I Voltage tolerance (including ripple): 21 V to 30 V
Current drain, typical: 25 mA at 24 V
Note:
The pulses are simultaneously enabled for drives A and B.
When the pulse enable is withdrawn, the drives coast down
unbraked.
19 X431.5 Reference
(Reference for all
digital inputs)
V Note:
If the enable signals are to be controlled from an external
voltage source and not from terminal 9, then the reference
potential (ground) of the external source must be connected
to this terminal.
Module-specific
terminals and
interfaces
5 Control Modules
