2 System Configuration
2
05.01
2.5 Power modules
2-31
Siemens AG 2001 All rights reserved
SIMODRIVE 611 Planning Guide (PJU) – 05.01 Edition
2.5.1 Function of the power modules
The power module provides the required power for the control modules and the
motor. The power module is selected depending on the motor and control mo-
dule.
2.5.2 Connecting the power modules
The power module is grounded via the PE connecting studs.
The power module must be mounted on a grounded, low–ohmic conductive
mounting surface and be connected with this through a good electrical connec-
tion.
The power supply is realized from the DC link buses.
Type plate/Order No.
50 mm power module
Control module (refer to Section 7)
Order No.
M3 / 0.8 Nm
M4 / 1.8 Nm
PE

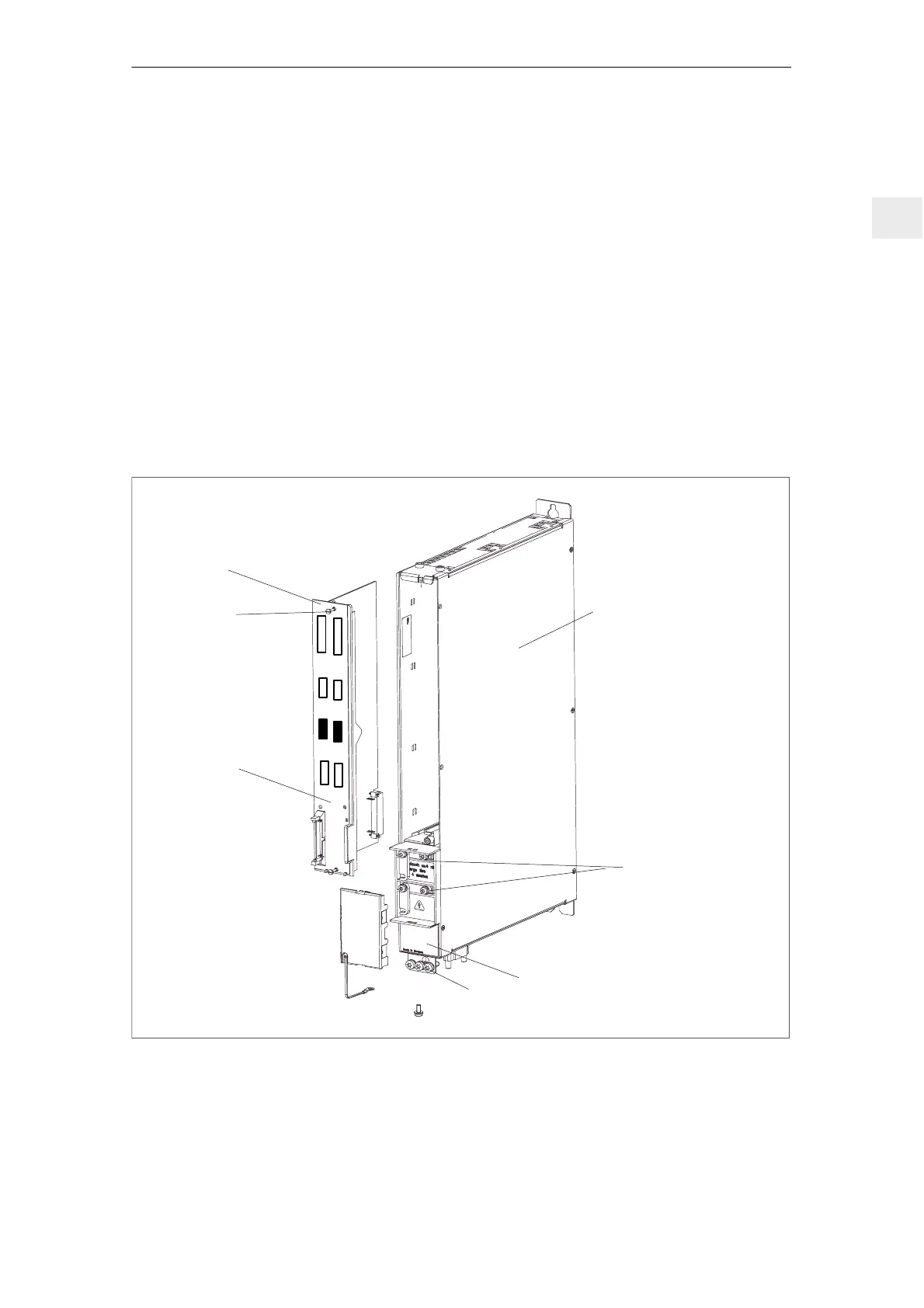

Fig. 2-2 Power module with control module
Power module,
internal cooling
