Siemens Simodrive 611 Planning Guide

5
05.01
5.7 Control module ”SIMODRIVE 611 universal”
5-129
 Siemens AG 2001 All rights reserved
SIMODRIVE 611 Planning Guide (PJU) – 05.01 Edition
5.7.1 Control module for 1 or 2 axes
The following 2 axis control modules are available:
Slot for
S optional TERMINAL
modules
or
S optional PROFIBUS–DP
module
Module for
encoder evaluation
Memory module
S Firmware
S User data
Pulse interface
The following is valid for screws:
Tighten (for the shield contact)
Max. torque = 0.8 Nm
2–axis for encoders with sin/cos 1Vpp 2–axis for resolvers





Equipment bus
Display and
operator unit



S Interfaces
S Terminals,
S Switch






The following applies for plug connections:
In order that the plug connections with the same number of pins
cannot be incorrectly inserted, they must be appropriately coded.
X302 X302

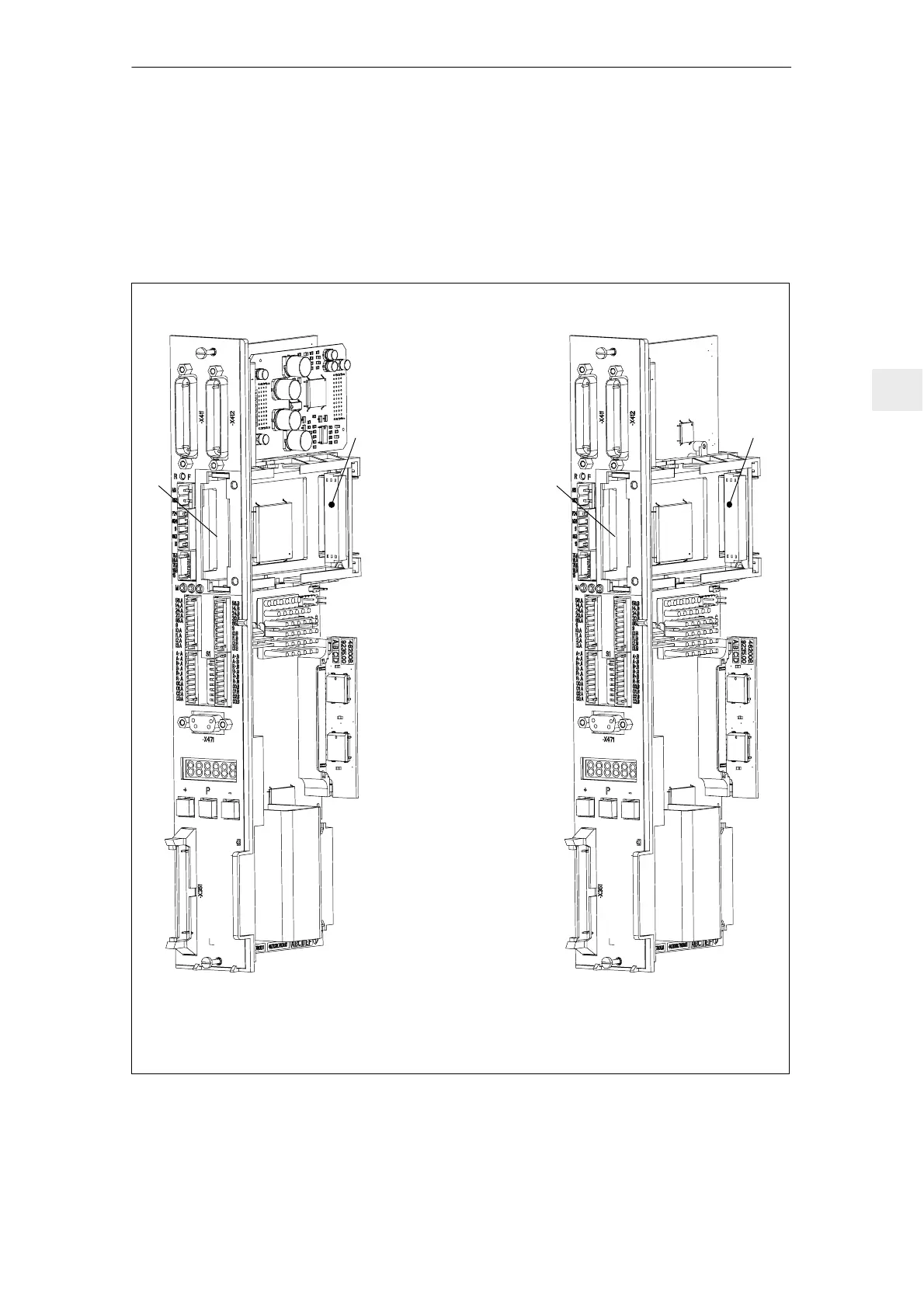

Fig. 5-8 Control modules for 2 axes
Control modules
for 2 axes
5 Control Modules
